HWN-2100 and HWN-2100M Series

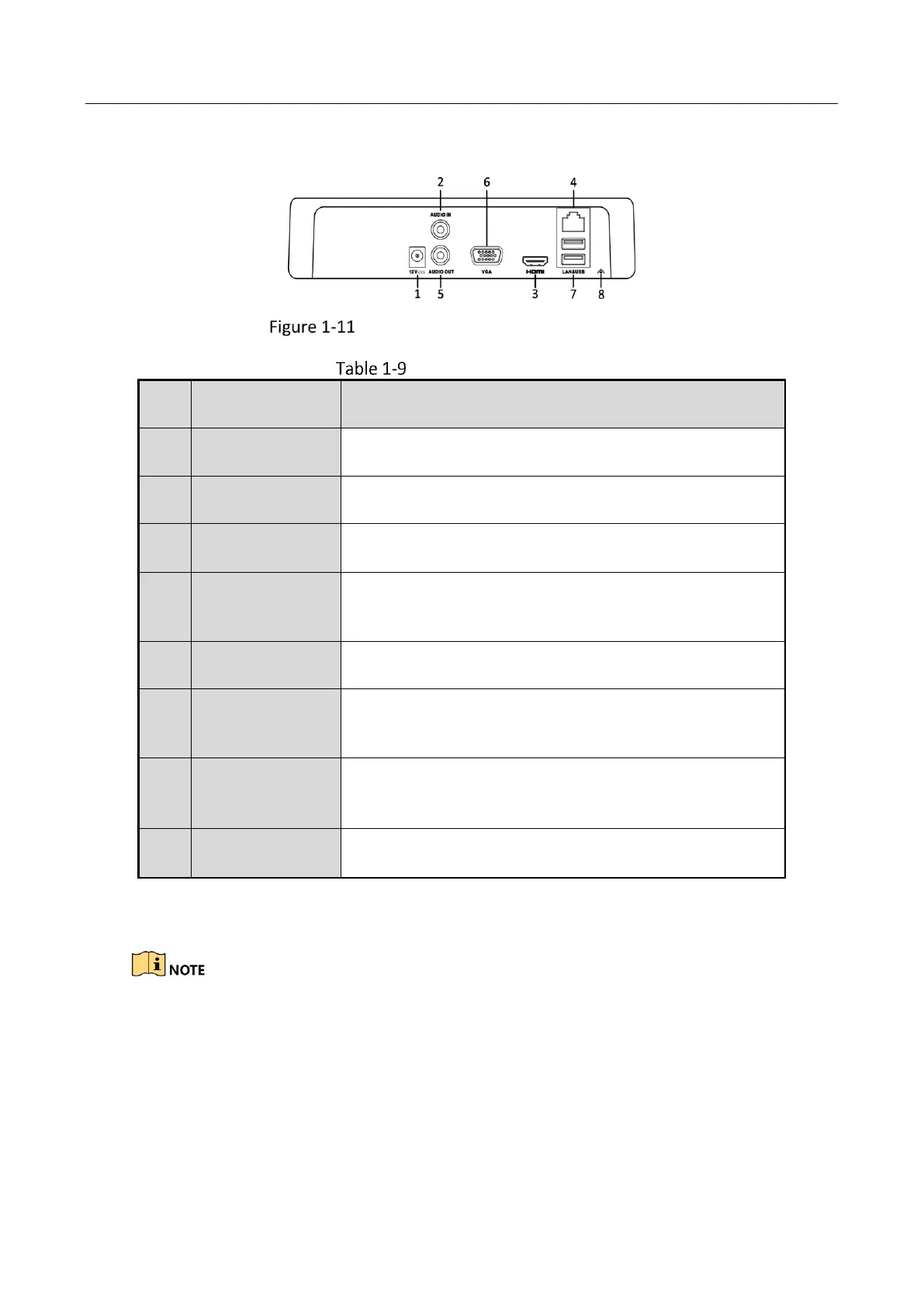

HWN-2100 and HWN-2100M Rear Panel
Description of Interfaces
No.
Item
Description
1
Power Supply
12 VDC power supply.
2
Audio In
RCA connector for two-way audio input.
3
HDMI Interface
HDMI video output connector.
4
Network
Interface
Connector for LAN (Local Area Network).
5
Audio Out
RCA connector for audio output.
6
VGA Output
DB9 connector for VGA output. Display local video
output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
HWN-2100-P and HWN-2100M-P Series
The rear panel vaires according to different models.
