Hirschmann MACH102 Series User Manual

Installation MACH102
Release 06 09/2014
21

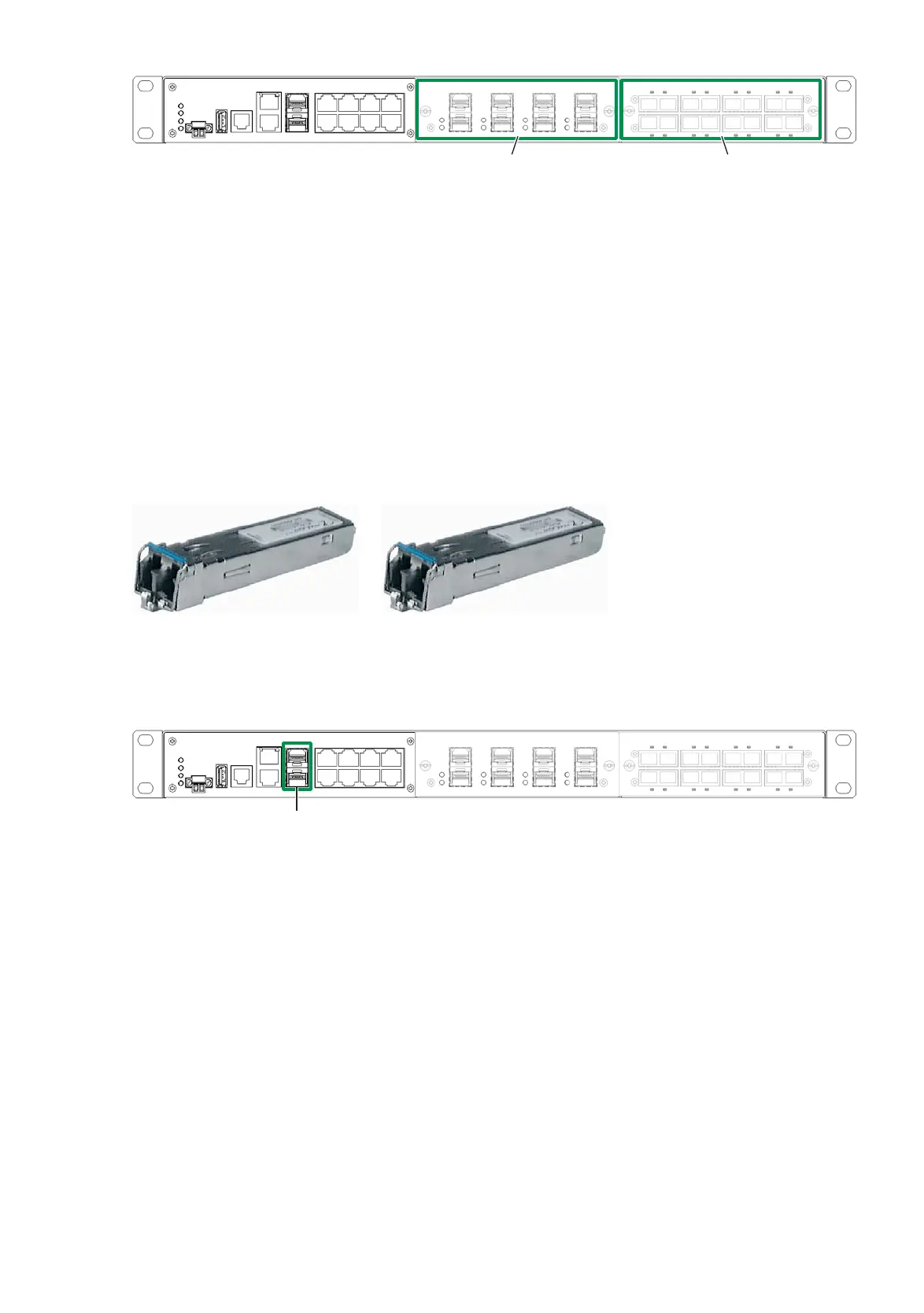

Figure 10: MACH102 device equipped with media modules
1 - media module 1
2 - media module 2
 To attach a media module, first remove the 2 screws on the protective
cover of the media module slot and remove the protective cover.
 Plug the media module into the desired slot.
 Fasten the 2 screws at the corners of the media module.
 Fit the media modules in sequence from left to right.
2.1.3 Installing the SFP modules
Figure 11: MACH102 device, front view
1 - 2 SFP slots
 Before installing an SFP transceiver or XFP transceiver, first remove the
protection cap of the transceiver.
 Push the SFP transceiver or XFP transceiver with the lock closed into the
socket until you hear it latch in.
Note: Only use Hirschmann SFP transceivers. See “Accessories” on
page 44.
2
1
Fast ETHERNET
fiberoptic SFP module
Gigabit ETHERNET
fiberoptic SFP module
1
