Hitachi LE42EC06AU User Manual

7
Preparation

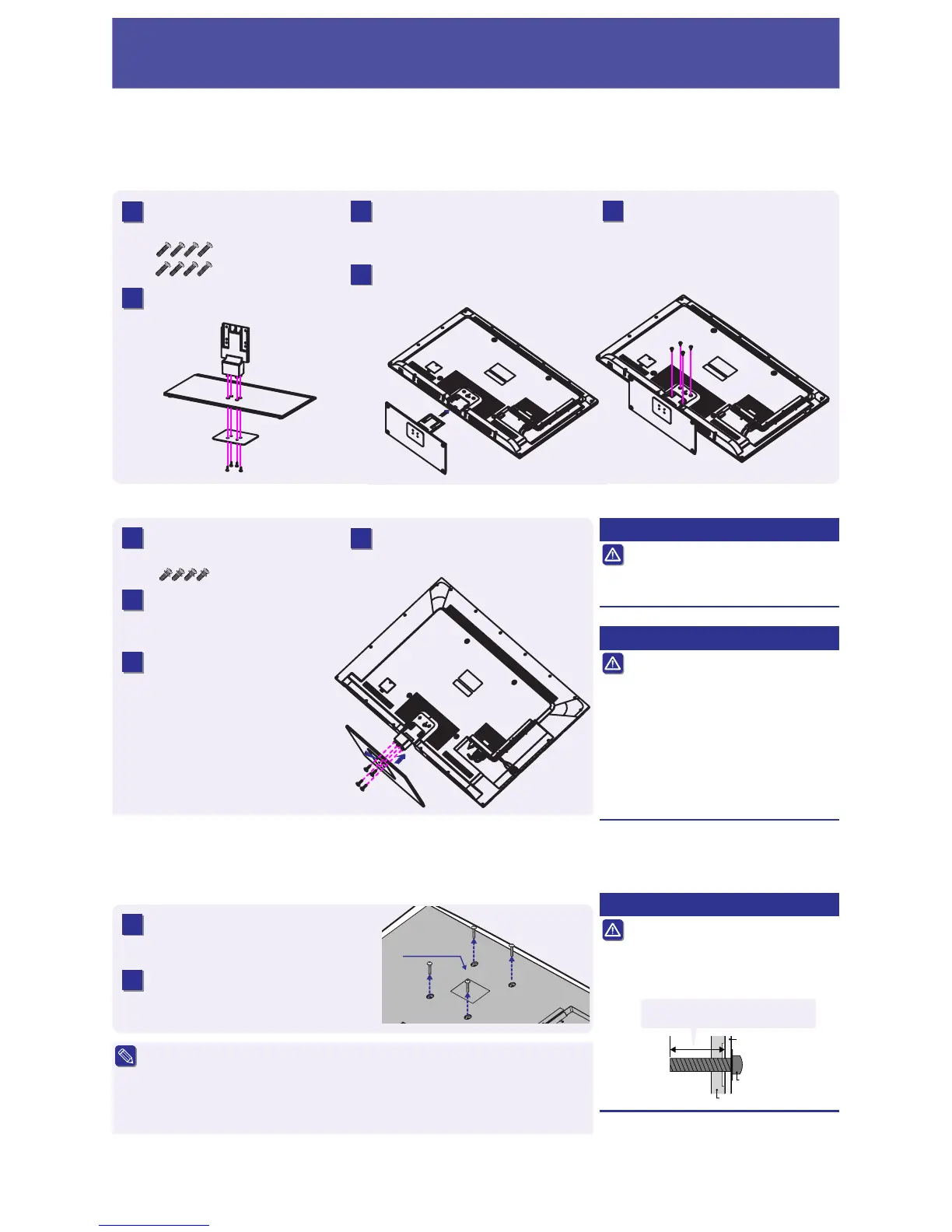

Attach the TV Stand
 For model LE42EC06AU and LE47EC06AU only
screws
(
BM4x15
)
1
Make sure the 10 screws
are supplied with the TV.
BM4x15 (black)
BT4x14 (silver)
Attach the stand bracket to
the stand base as shown.
2
Carefully place the TV with its
front side facing down on a
cushioned flat surface.
3
Attach the TV stand to the
TV as shown.
Tighten the supplied screws
to fix the TV stand securely
in place.
5
screws
(
BT4x14
)
stand base
stand bracket
4
 For model LE55EC06AU only
Tighten the supplied screws
to fix the TV stand securely
in place.
4
1
Make sure the 4 screws
are supplied with the TV.
Carefully place the TV with
its front side facing down
on a cushioned flat surface.
2
Attach the TV stand to the
TV as shown.
3
PM4x10 (silver)
CAUTION
• The TV stand may not be
fixed in place after repeatedly
tightening and loosening the
screws.
WARNING
• During assembling and
disassembling the TV stand,
please use your hand to support
it. Failure to do so may cause
the TV stand to fall and result in
personal injury.
• After installing the TV stand,
please ensure that the screws
are tightened firmly. Failure to
do so may cause the TV set to
tip over or become damage.
Tighten the supplied screws
to fix the TV stand securely
in place.
4
1
Make sure the 4 screws
are supplied with the TV.
Carefully place the TV with
its front side facing down
on a cushioned flat surface.
2
Attach the TV stand to the
TV as shown.
3
PM4x10 (silver)
Tighten the supplied screws
to fix the TV stand securely
in place.
4
1
Make sure the 4 screws
are supplied with the TV.
Carefully place the TV with
its front side facing down
on a cushioned flat surface.
2
Attach the TV stand to the
TV as shown.
3
PM4x10 (silver)
Tighten the supplied screws
to fix the TV stand securely
in place.
4
1
Make sure the 4 screws
are supplied with the TV.
Carefully place the TV with
its front side facing down
on a cushioned flat surface.
2
Attach the TV stand to the
TV as shown.
3
PM4x10 (silver)
General Wall Mount Guide
1
Unscrew and remove the
screws from the back cover
as shown.
For wall mount bracket
installation, refer to the wall
mount bracket installation guide.
2
Back cover
• Fasten the wall mount bracket to the TV using spacers and screws.
• The wall mount bracket is not supplied.
• Store the screws that are not in use.
• Screw hole size: M5
• Hole configuration: VESA 400x400mm
CAUTION
• Ensure the screw length is
within the length specification as
shown below. Failure to do so
may result in internal damage to
the TV set or cause it to fall.
LE32EC05AU: 16 - 20mm
LE24EC05AU: 8 - 10mm
Wall Mount Hook
Screw
Rear of TV Set
LE32EC05AU: 16 - 20m
m
LE24EC05AU: 8 - 10m
m
16 - 20mm
M4 x 10mm (short)
M5 x 22mm (long)
screws
(
BM4x15
)
1
Make sure the 10 screws
are supplied with the TV.
BM4x15 (black)
BT4x14 (silver)
Attach the stand bracket to
the stand base as shown.
2
Carefully place the TV with its
front side facing down on a
cushioned flat surface.
3
Attach the TV stand to the
TV as shown.
Tighten the supplied screws
to fix the TV stand securely
in place.
5
screws
(
BT4x14
)
stand base
stand bracket
4
8
M5 x 22mm

Hitachi LE42EC06AU Specifications

General

Brand	Hitachi
Model	LE42EC06AU
Category	LCD TV
Language	English
