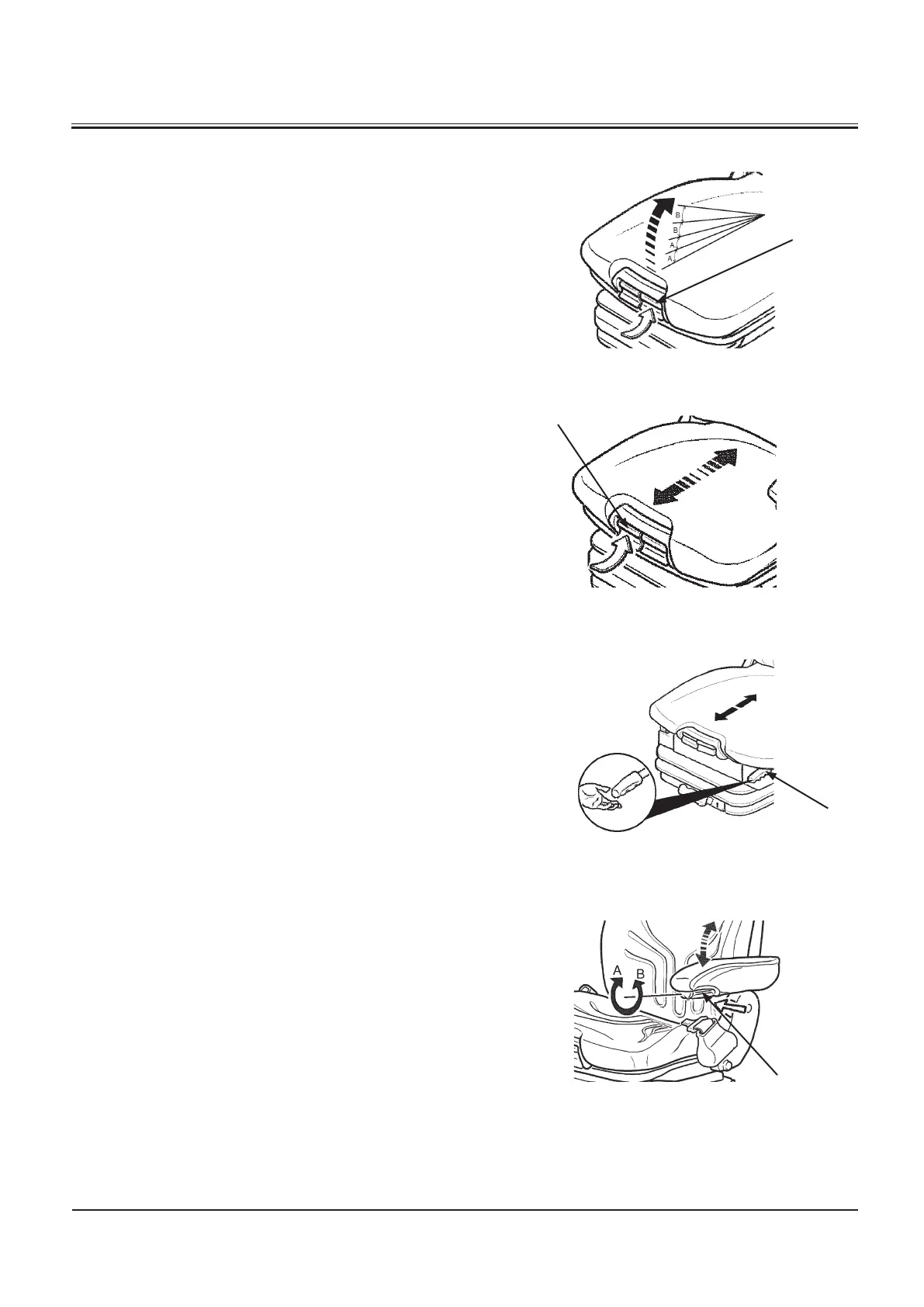

The inclination of the seat surface can be changed. While
pulling up lever (3) provided in the front of the seat, press or
release the seat surface to adjust the inclination of the seat
surface from 3° to 11° in 4 steps.
A: 3°
B: 2.5°
The fore-aft depth of the seat surface can be changed. While
pulling up lever (4) provided in the front the seat, slide the
seat in the front or rear direction up to 60 mm by 15 mm in
-
terval.
Pull up slide lever (5) to adjust the front/rear position of the
seat assembly. The seat assembly position can be adjusted
in the range of full stroke 210mm by 10 mm interval. Return
the lever to the original position after the seat assembly is
moved to the desired position. Check that the seat assembly
is locked in the desired position.
The angle of the armrest can be adjusted by turning knob (6)
provided under the armrest.
