Honda 2004 XR400R User Manual

(1)
(2)
(3)
(4)
(5)
(1) bolts
(2) slot
(3) pin
(4) prongs
(5) hooks
60

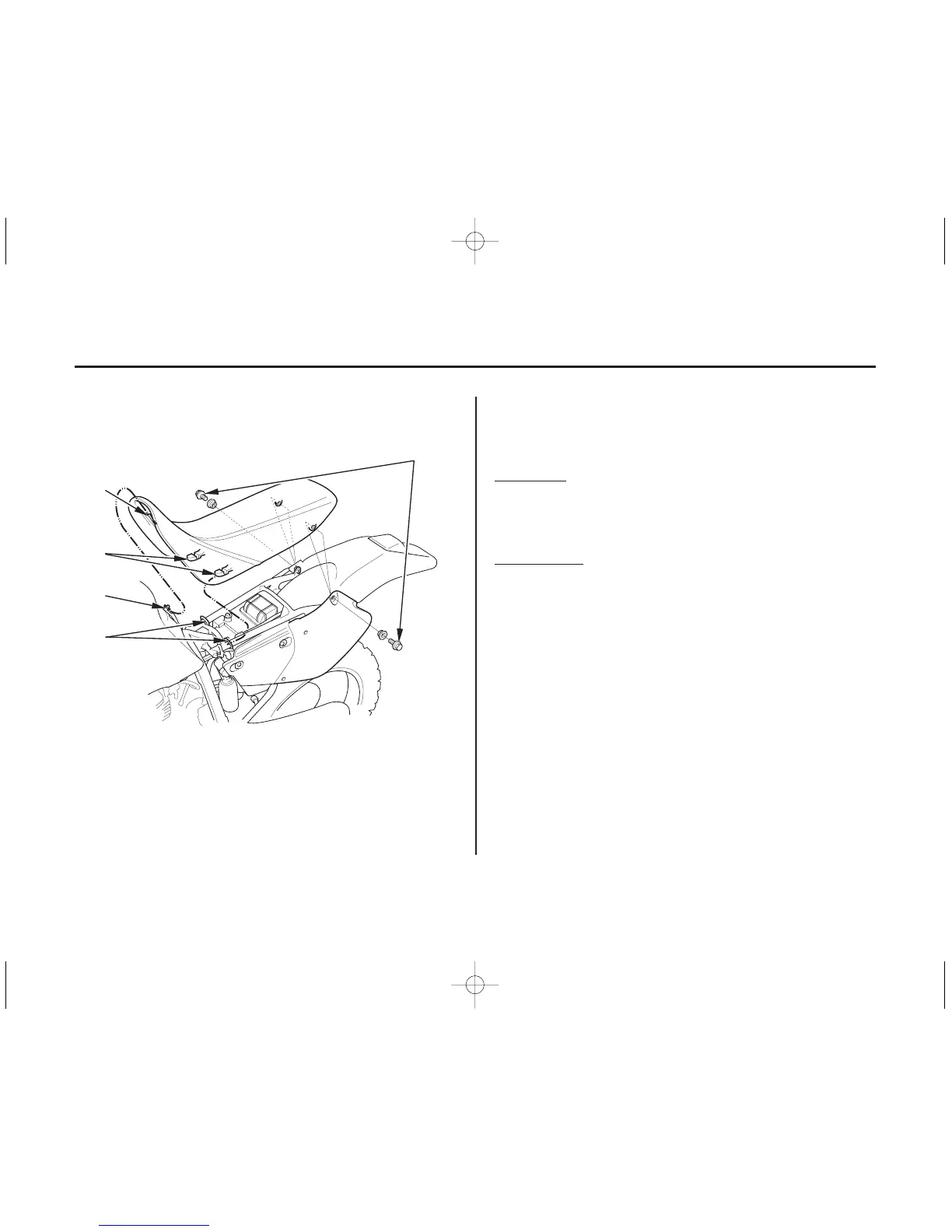

Seat Removal
Servicing Your Honda
Saf ety PrecautionsRefer to on page . The seat must be removed to adjust rear
suspension pre-load.
Removal
Remove the two bolts ( ) securing the seat.
Slide the seat back.
Installation
Align the locating slot ( ) under the front of
the seat with the pin ( ) on the rear of the
fuel tank.
Align the locating prongs ( ) on the bottom
of the seat with the hooks ( ) on the frame.
Slide the seat into position.
Install the bolts and tighten them.
1.
1.
2.
1
2.
3.
4.
2
3
4
5
45
03/05/20 10:05:04 31KCY680_069

Honda 2004 XR400R Specifications

General

Displacement	397 cc
Cooling System	Air-cooled
Bore x Stroke	85.0 mm x 70.0 mm
Compression Ratio	9.3:1
Transmission	5-speed
Front Brake	Single disc
Rear Brake	Single disc
Ignition	CDI
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	Air-cooled 4-stroke single cylinder
Front Suspension	43mm telescopic fork
Rear Suspension	Pro-Link single shock
Induction	Carburetor
Ground Clearance	12.4 inches
