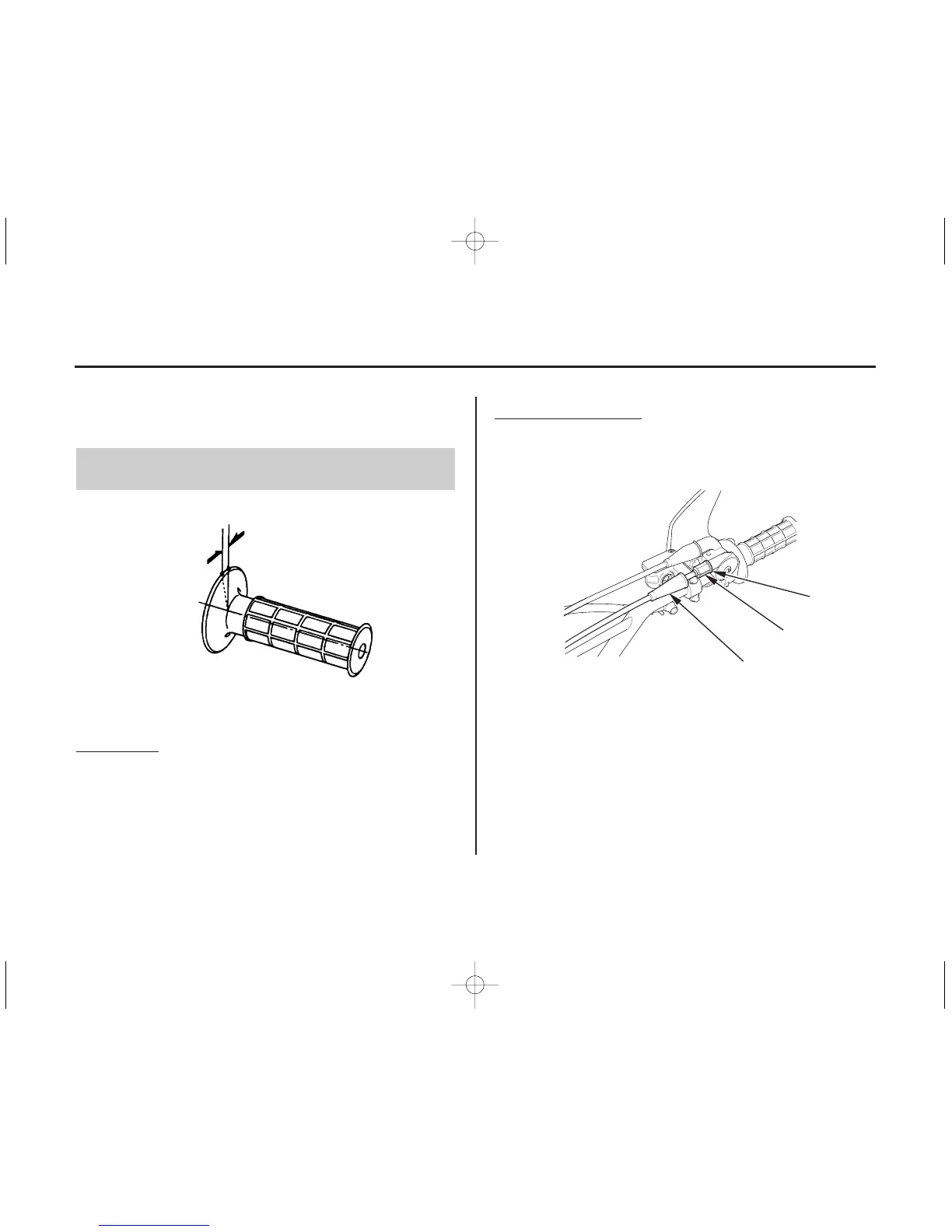

Honda 2004 XR400R User Manual

−−1/16 1/4 in (2 6 mm)
(1) rubber dust cover
(2) upper lock nut
(3) upper adjuster
(1) freeplay
(1)
(3)
(2)
RIGHT SIDE
RIGHT SIDE
(1)
77
Throttle Freeplay
Throttle
Servicing Your Honda
Saf ety PrecautionsRefer to on page .
Minor adjustments are generally made with the
upper adjuster.
Upper Adjustment
Check freeplay ( ).
Freeplay:
Inspection
If necessary, adjust to the specified range.
Pull the rubber dust cover ( ) back.
Loosen the upper lock nut ( ) on the throttle
cable mechanism.
Turn the upper adjuster ( ).
(cont’d)
1.
2.
3.
2
1
3
1
45
03/05/20 10:07:52 31KCY680_086

Honda 2004 XR400R Specifications

General

Displacement	397 cc
Cooling System	Air-cooled
Bore x Stroke	85.0 mm x 70.0 mm
Compression Ratio	9.3:1
Transmission	5-speed
Front Brake	Single disc
Rear Brake	Single disc
Ignition	CDI
Front Tire	80/100-21
Rear Tire	110/100-18
Engine Type	Air-cooled 4-stroke single cylinder
Front Suspension	43mm telescopic fork
Rear Suspension	Pro-Link single shock
Induction	Carburetor
Ground Clearance	12.4 inches
