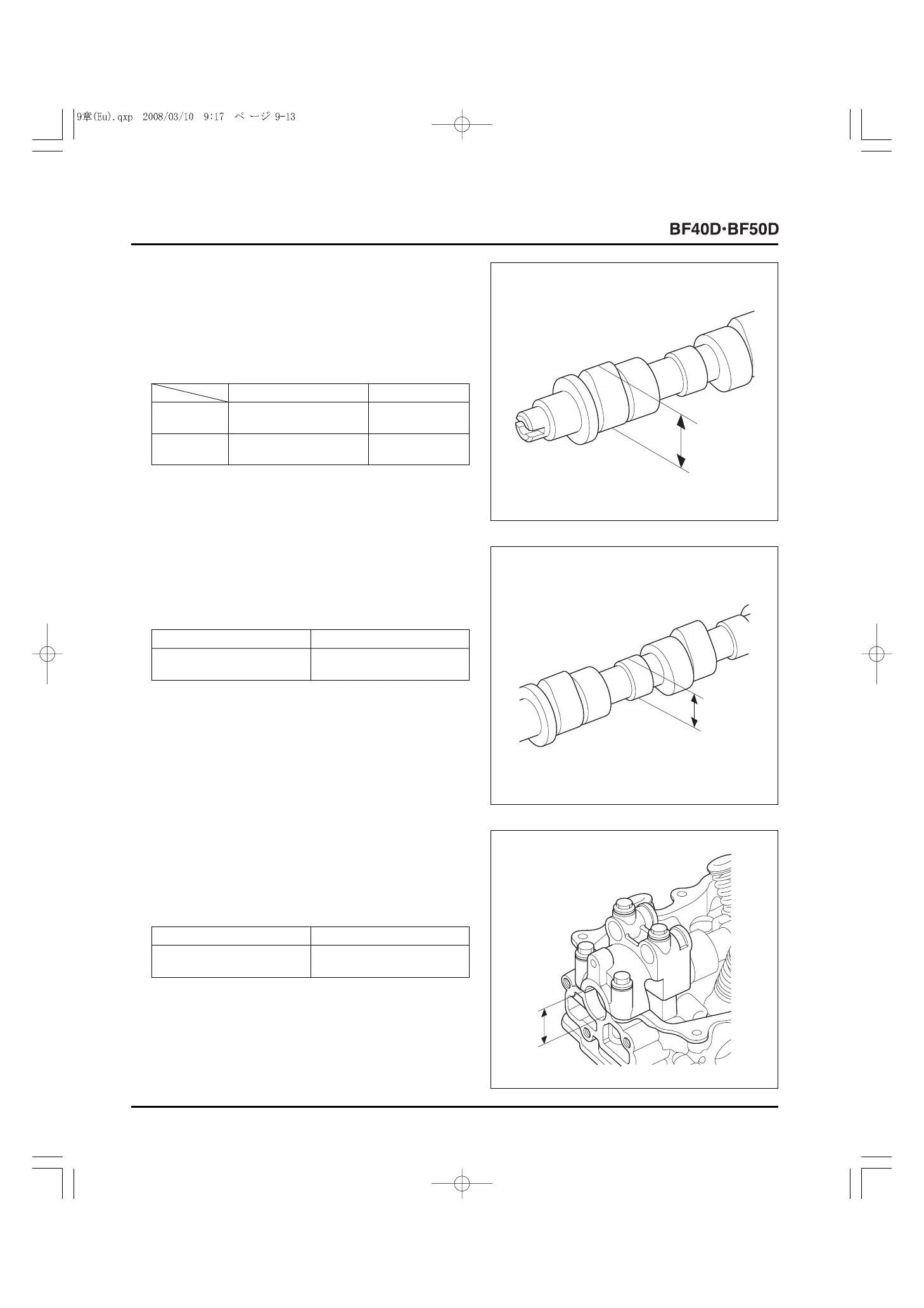

4. INSPECTION
• CAM HEIGHT
1) Clean the camshaft and check the cam surface for wear or
damage.
2) Measure the cam height.
• CAMSHAFT JOURNAL I.D.
1) Tighten each cam holder to the specified torque with the
eight 6 x 70 mm flange bolts and the two 6 x 35 mm flange
bolts (P. 9-14).
2) Measure the I.D. of each cylinder head journal.
• CAMSHAFT JOURNAL O.D.
1) Clean the camshaft and check the journals for wear or
damage.
2) Measure the O.D. of each camshaft journal.
3) If the measurement is less than the service limit, replace
the camshaft with a new one.
Standard Service limit
IN
35.266
- 35.606 mm 35.046 mm
(1.3884 - 1.4018 in) (1.3798 in)
EX
35.311
- 35.651 mm 35.091 mm
(1.3902
- 1.4036 in) (1.3815 in)
Standard Service limit
22.959
- 22.980 mm 22.930 mm
(0.9039
- 0.9047 in) (0.9028 in)
Standard Service limit
23.000
- 23.021 mm 23.050 mm
(0.9055
- 0.9063 in) (0.9075 in)
