Honda GC160 User Manual

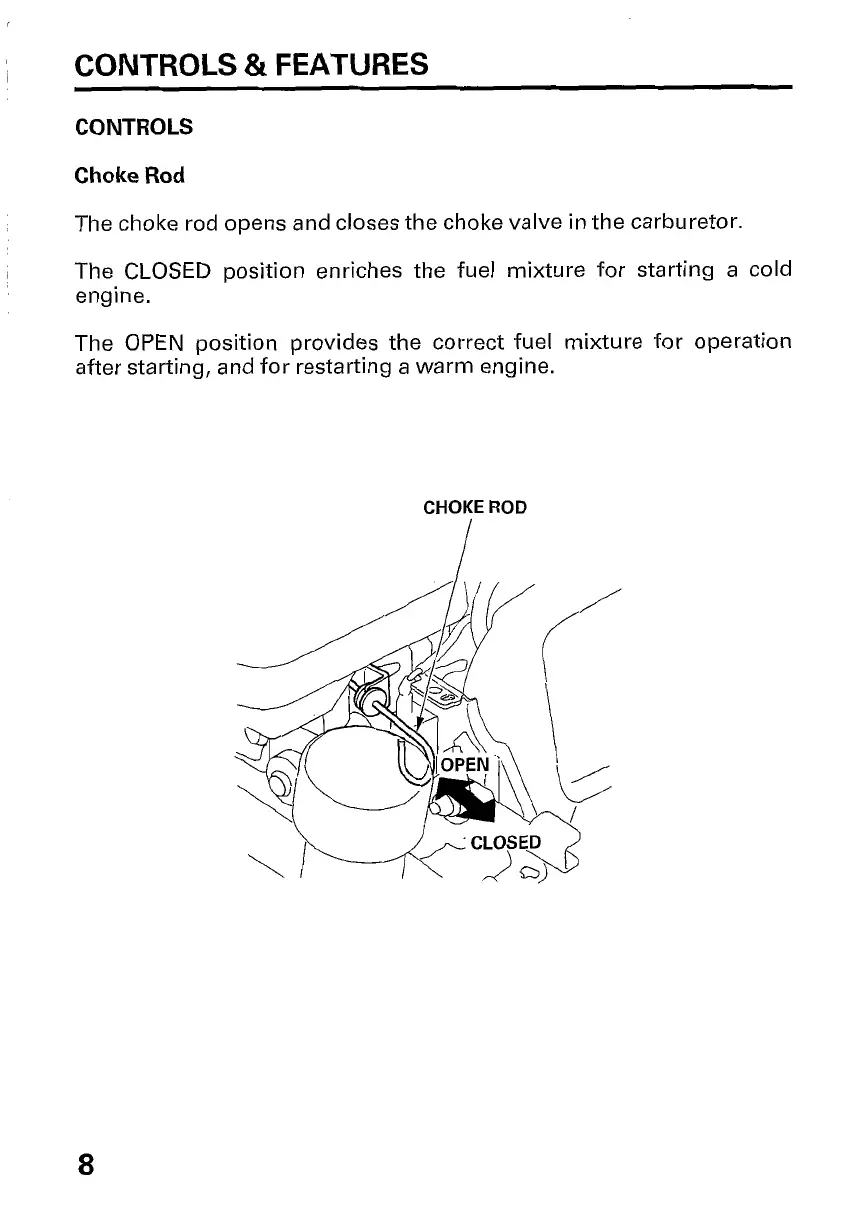

I CONTROLS & FEATURES
CONTROLS
Choke Rod
The choke rod opens and closes the choke valve in the carburetor.
, The CLOSED position enriches the fuel mixture for starting a cold
engine.
The
OPEN position provides the correct fuel mixture for operation
after starting, and for restarting
a warm engine.
CHOKE ROD
I
8

Honda GC160 Specifications

General

Engine Type	Air-cooled 4-stroke OHV
Bore x Stroke	68 mm x 45 mm
Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto ignition
Lubrication System	Forced splash
Net Torque	10.3 Nm (7.6 lbs ft) @ 2, 500 rpm
Fuel Consumption	1.4 L/h at 3, 600 rpm
Starting System	Recoil start
Fuel Tank Capacity	3.1 liters
Oil Capacity	0.58 liters
Dry Weight	15.1 kg
Displacement	160 cm3 (9.8 cu-in)
