Honda GC160 User Manual

SERVICING YOUR ENGINE

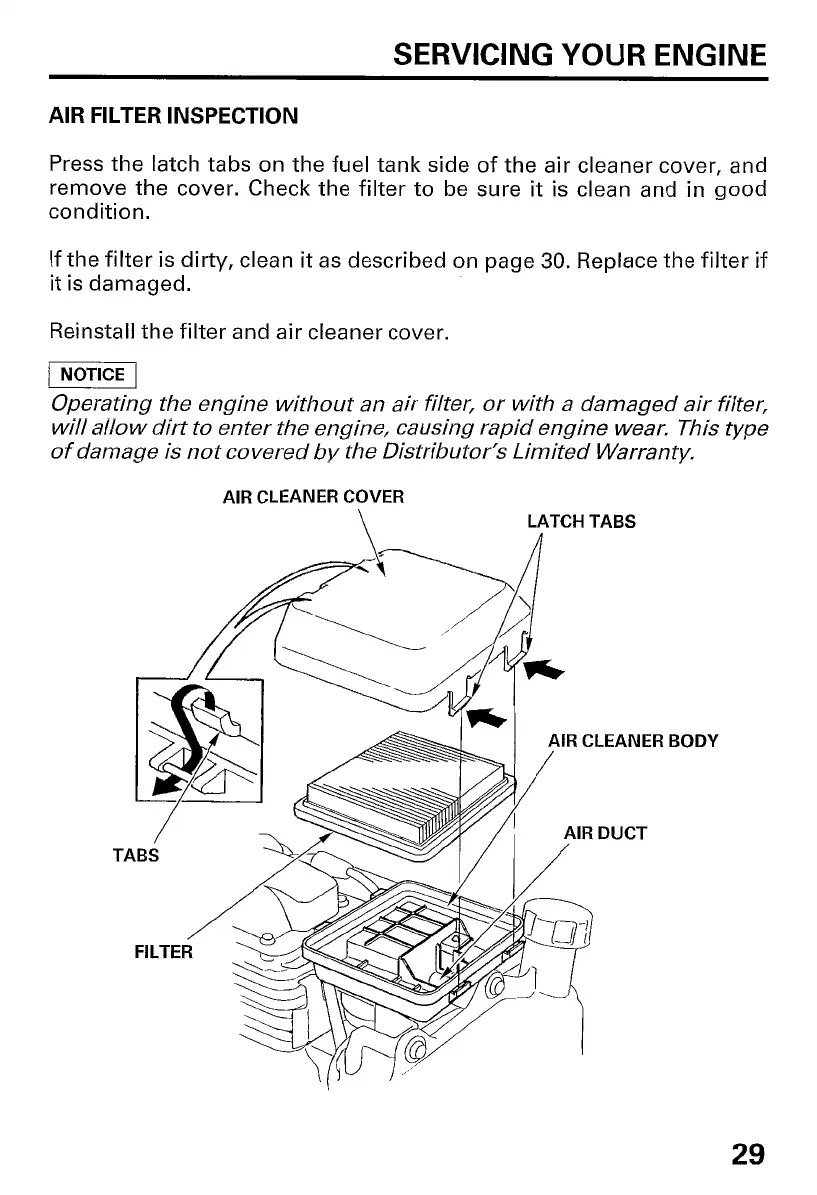

AIR FILTER INSPECTION
Press the latch tabs on the fuel tank side of the air cleaner cover, and
remove the cover. Check the filter to be sure
it is clean and in good
condition.
If the filter is dirty, clean it as described on page 30. Replace the filter if
it is damaged.
Reinstall the filter and air cleaner cover.
m
Operating the engine without an air filter, or with a damaged air filter,
will allow dirt to enter the engine, causing rapid engine wear. This type
of damage is not covered by the Distributor's Limited Warranty.
AIR CLEANER COVER
\ LATCH TABS
BODY
29

Honda GC160 Specifications

General

Engine Type	Air-cooled 4-stroke OHV
Bore x Stroke	68 mm x 45 mm
Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto ignition
Lubrication System	Forced splash
Net Torque	10.3 Nm (7.6 lbs ft) @ 2, 500 rpm
Fuel Consumption	1.4 L/h at 3, 600 rpm
Starting System	Recoil start
Fuel Tank Capacity	3.1 liters
Oil Capacity	0.58 liters
Dry Weight	15.1 kg
Displacement	160 cm3 (9.8 cu-in)
