Honda GC160 User Manual

SERVICING YOUR ENGINE

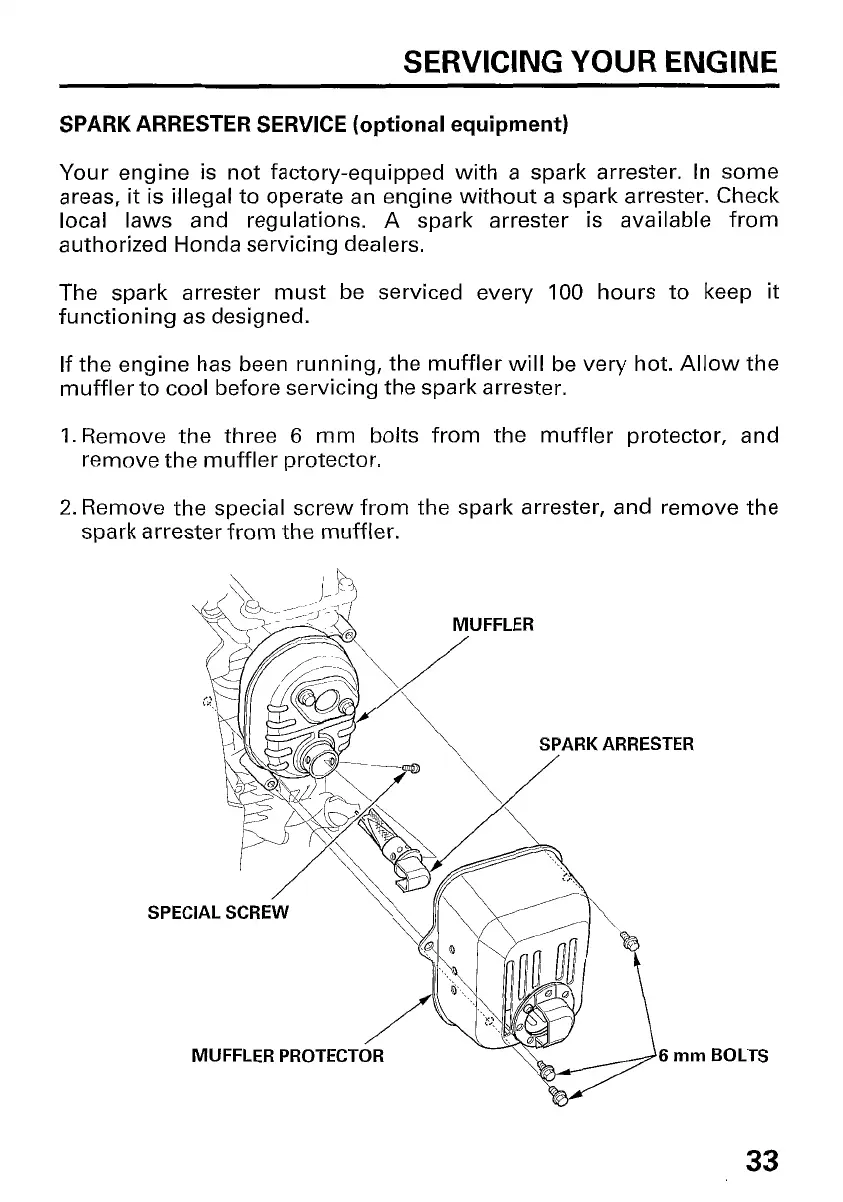

SPARK ARRESTER SERVICE (optional equipment)
Your engine is not factory-equipped with a spark arrester. In some
areas,
it is illegal to operate an engine without a spark arrester. Check
local laws and regulations. A spark arrester is available from
authorized Honda servicing dealers.
The spark arrester must be serviced every
100 hours to keep it
functioning as designed.
If the engine has been running, the muffler will be very hot. Allow the
muffler to cool before servicing the spark arrester.
1. Remove the three 6 mm bolts from the muffler protector, and
remove the muffler protector.
2. Remove the special screw from the spark arrester, and remove the
spark arrester from the muffler.
BOLTS
33

Honda GC160 Specifications

General

Engine Type	Air-cooled 4-stroke OHV
Bore x Stroke	68 mm x 45 mm
Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto ignition
Lubrication System	Forced splash
Net Torque	10.3 Nm (7.6 lbs ft) @ 2, 500 rpm
Fuel Consumption	1.4 L/h at 3, 600 rpm
Starting System	Recoil start
Fuel Tank Capacity	3.1 liters
Oil Capacity	0.58 liters
Dry Weight	15.1 kg
Displacement	160 cm3 (9.8 cu-in)
