Honda GC160 User Manual

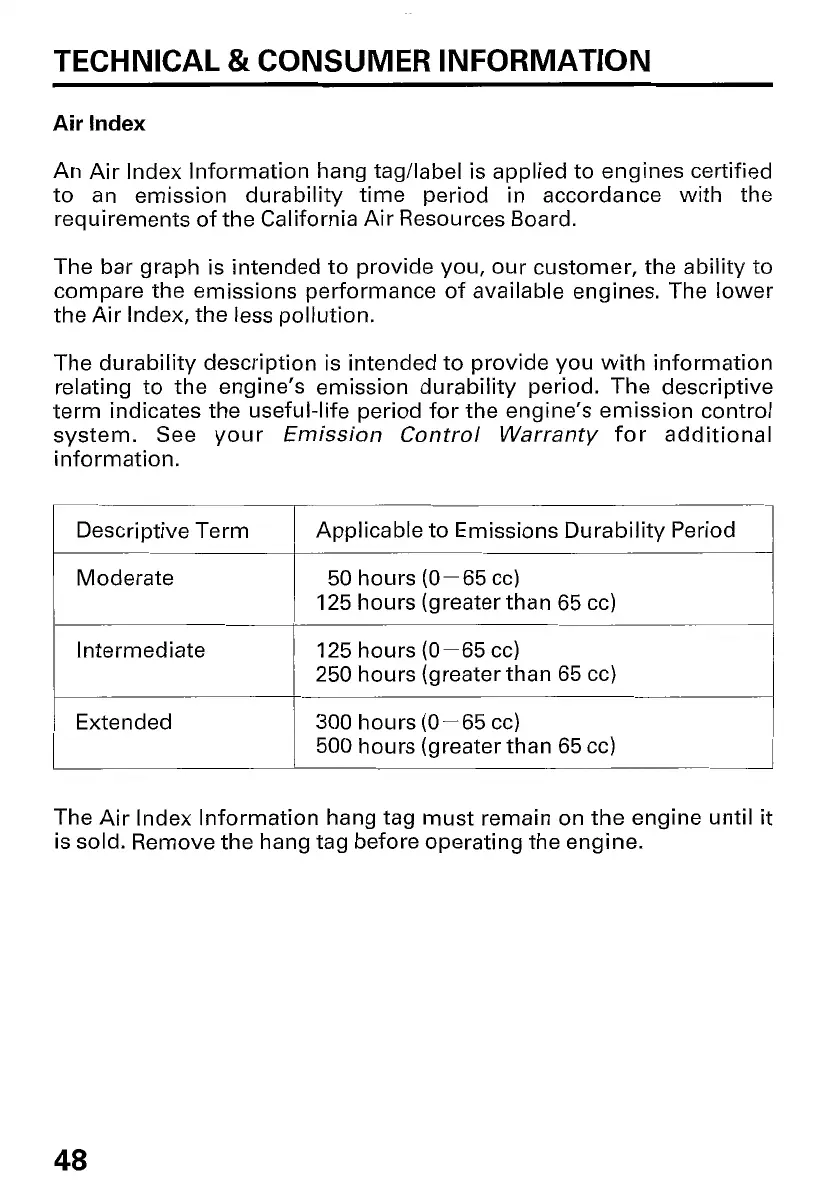

TECHNICAL & CONSUMER INFORMATION
Air Index
An Air Index Information hang tag/label is applied to engines certified
to an emission durability time period in accordance with the
requirements of the California Air Resources Board.
The bar graph is intended to provide you, our customer, the ability to
compare the emissions performance of available engines. The lower
the Air Index, the less pollution.
The durability description is intended to provide you with information
relating to the engine's emission durability period. The descriptive
term indicates the useful-life period for the engine's emission control
system. See your
Emission Control Warranty for additional
information.
Descriptive Term
50 hours (0-65 cc) Moderate
Applicable to Emissions Durability Period
125 hours (greater than 65 cc)
Intermediate 125 hours (0-65 cc)
250 hours (greater than 65 cc)
Extended
300 hours (0-65 cc)
500 hours (greater than 65 cc)
The Air Index Information hang tag must remain on the engine until
it
is sold. Remove the hang tag before operating the engine.

Honda GC160 Specifications

General

Engine Type	Air-cooled 4-stroke OHV
Bore x Stroke	68 mm x 45 mm
Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto ignition
Lubrication System	Forced splash
Net Torque	10.3 Nm (7.6 lbs ft) @ 2, 500 rpm
Fuel Consumption	1.4 L/h at 3, 600 rpm
Starting System	Recoil start
Fuel Tank Capacity	3.1 liters
Oil Capacity	0.58 liters
Dry Weight	15.1 kg
Displacement	160 cm3 (9.8 cu-in)
