Honda GC160 User Manual

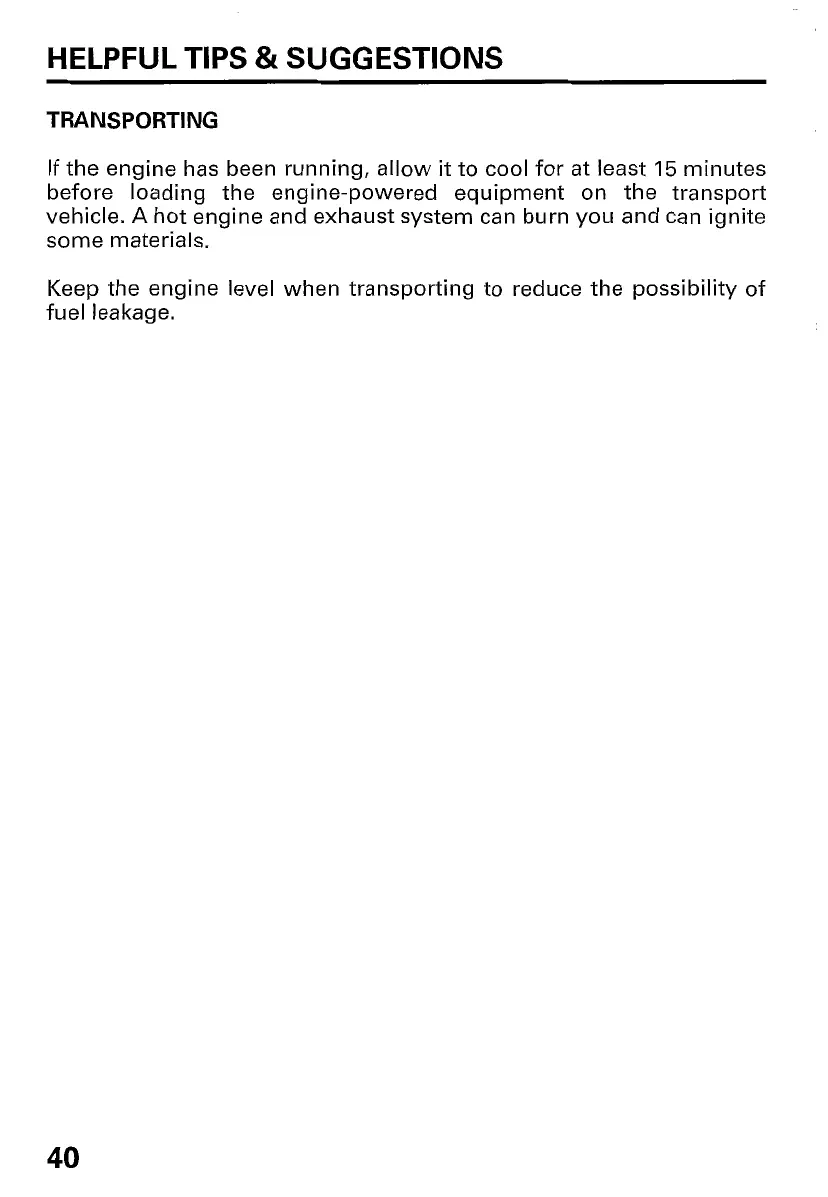

HELPFUL TIPS & SUGGESTIONS
TRANSPORTING
If the engine has been running, allow it to cool for at least 15 minutes
before loading the engine-powered equipment on the transport
vehicle.
A hot engine and exhaust system can burn you and can ignite
some materials.
Keep the engine level when transporting to reduce the possibility
of
fuel leakage.

Honda GC160 Specifications

General

Engine Type	Air-cooled 4-stroke OHV
Bore x Stroke	68 mm x 45 mm
Compression Ratio	8.5:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Ignition System	Transistorized magneto ignition
Lubrication System	Forced splash
Net Torque	10.3 Nm (7.6 lbs ft) @ 2, 500 rpm
Fuel Consumption	1.4 L/h at 3, 600 rpm
Starting System	Recoil start
Fuel Tank Capacity	3.1 liters
Oil Capacity	0.58 liters
Dry Weight	15.1 kg
Displacement	160 cm3 (9.8 cu-in)
