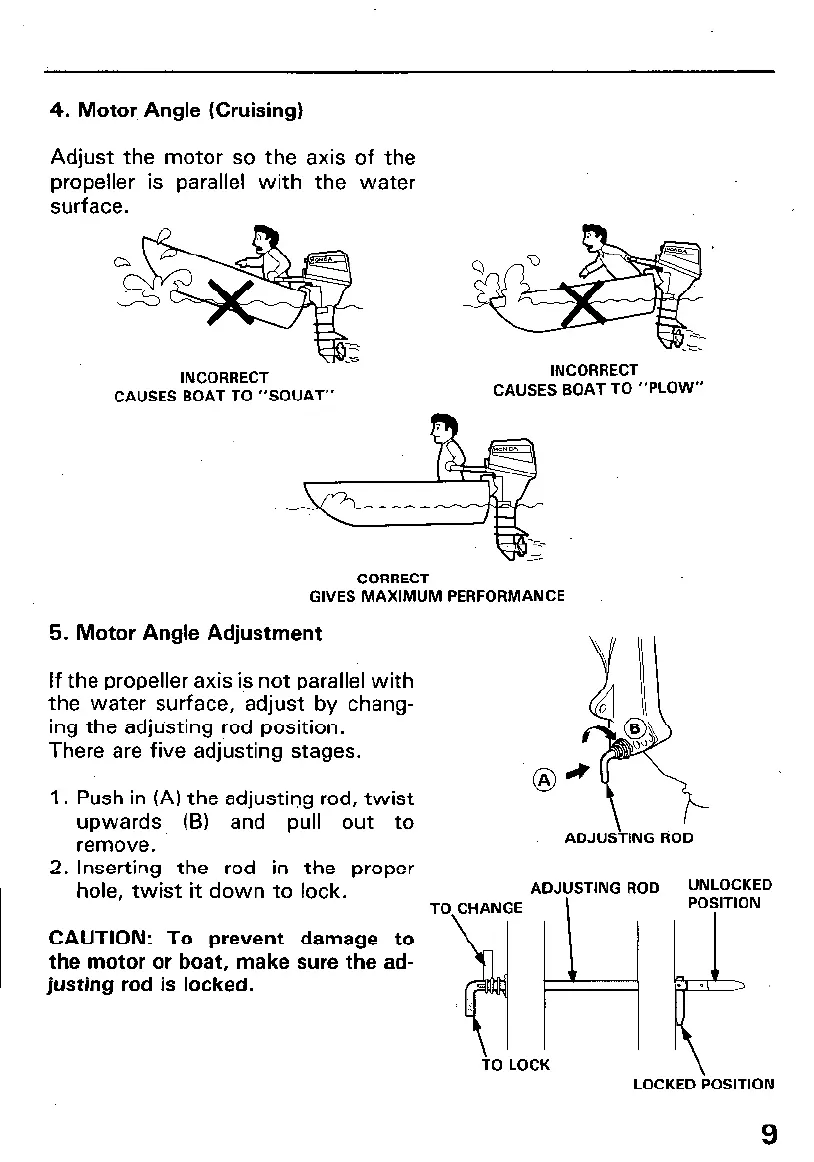

4. Motor, Angle (Cruising)
Adjust the motor so the axis of the
propeller is parallel with the water
surface.
INCORRECT
CAUSES BOAT TO “SQUAT”
INCORRECT
CAUSES BOAT TO “PLOW”
CORRECT
GIVES MAXIMUM PERFORMANCE
5. Motor Angle Adjustment
If the propeller axis is not parallel with
the water surface, adjust by chang-
ing the adjusting rod position.
There are five adjusting stages.
1. Push in (A) the adjusting rod, twist
@a
upwards (B) and pull out to
remove.
ADJUSTING ROD
2. Inserting the rod in the proper
hole, twist it down to lock.
ADJUSTING ROD
UNLOCKED
TO CHANGE
POSITION
CAUTION: To prevent damage to
the motor or boat, make sure the ad-
justing rod is locked.
3pf,
. 0
TO LOCK
LOCKED POSITION
9

Honda Outboard Motor BF15A Specifications

General

Displacement	350 cc (21.4 cubic inches)
Horsepower	15 HP
Cooling System	Water cooled
Fuel Delivery	Carburetor
Ignition System	CDI
Starting System	Manual or Electric
Gear Ratio	2.08:1
Trim Positions	5
Lubrication	Wet sump
Fuel	Unleaded gasoline (86 octane)
Propeller	3-blade aluminum
Gear Shift	F-N-R
Bore x Stroke	59 mm x 64 mm (2.3 in x 2.5 in)
Full Throttle RPM Range	5, 000-6, 000 RPM
Dry Weight	46 kg
Oil Capacity	1.1 L
Alternator	6A, 12V
Shaft Length	15" (Short), 20" (Long)
Fuel Tank Capacity	12 L (External tank)
Exhaust	Through propeller hub
