1. SAFETY

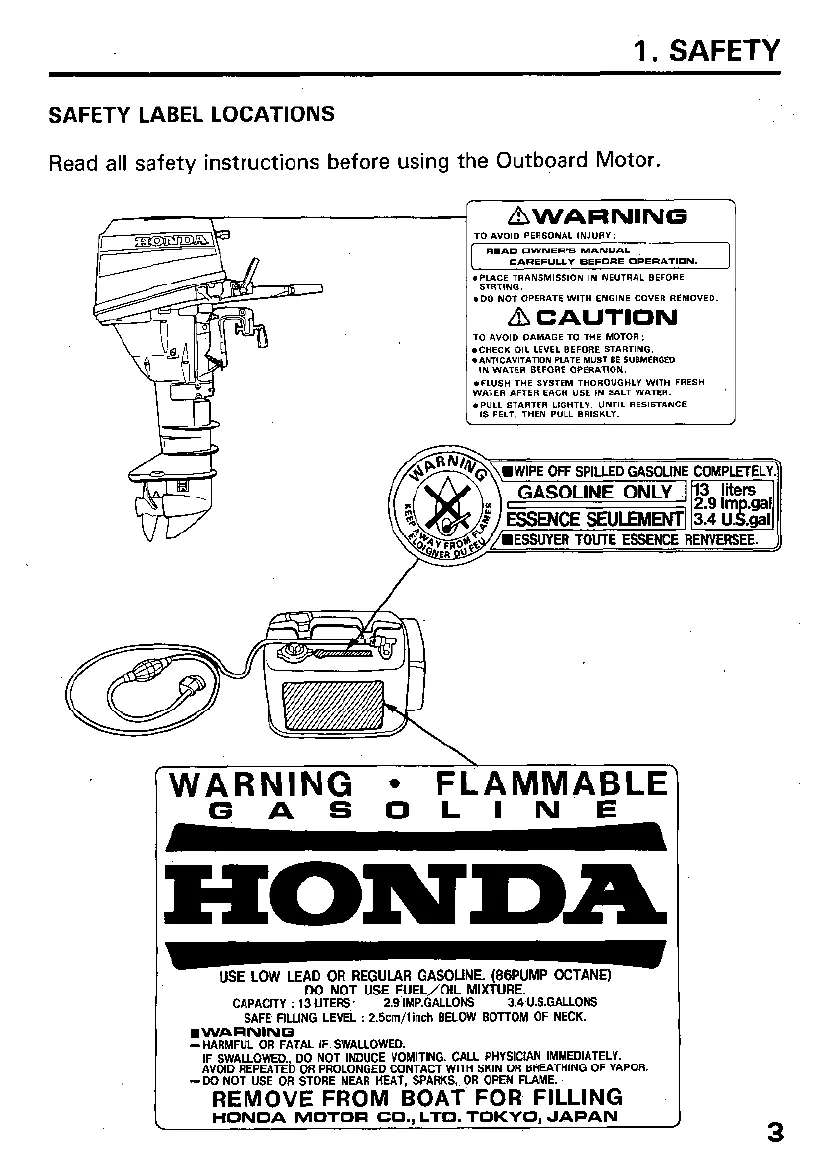

SAFETY LABEL LOCATIONS
Read all safety instructions before using the Outboard Motor.
STRTINO.
.DO NOT OPERATE WITH ENC-~- --. -- ~----..-
A CAU’. .-.w
T”
a”“,”
r’----
-
-\
\
[WARNING l FLAMMABLE
GASOLINE
HONDA
USE LOW LEAD OR REGULAR GASOLINE. (88PUMP OCTANE)
DO NOT USE FUEL/OIL MIXTURE.
CAPACITY : 13 LITERS
2.9 IMP.GALLONS
3.4~U.S.GALLONS
SAFE FILLING LEVEL : 2Scm/linch BELOW BOTTOM OF NECK.
n WARNINQ
-HARMFUL OR FATAL IF SWALLOWED.
IF SWALLOWED., DO NOT INDUCE VOMITING. CALL PHYSICIAN IMMEDIATELY.
AVOID REPEATED OR PROLONGED CONTACT WITH SKIN OR BREATHING OF VAPOR.
-DO NOT USE OR STORE NEAR MEAT, SPARKS,. OR OPEN FLAME.
REMOVE FROM BOAT FOR FILLING
HONOA MOTOR CO.. LTD. TOKYO. JAPAP
3

Honda Outboard Motor BF15A Specifications

General

Displacement	350 cc (21.4 cubic inches)
Horsepower	15 HP
Cooling System	Water cooled
Fuel Delivery	Carburetor
Ignition System	CDI
Starting System	Manual or Electric
Gear Ratio	2.08:1
Trim Positions	5
Lubrication	Wet sump
Fuel	Unleaded gasoline (86 octane)
Propeller	3-blade aluminum
Gear Shift	F-N-R
Bore x Stroke	59 mm x 64 mm (2.3 in x 2.5 in)
Full Throttle RPM Range	5, 000-6, 000 RPM
Dry Weight	46 kg
Oil Capacity	1.1 L
Alternator	6A, 12V
Shaft Length	15" (Short), 20" (Long)
Fuel Tank Capacity	12 L (External tank)
Exhaust	Through propeller hub
