Honda Outboard Motor BF15A User Manual

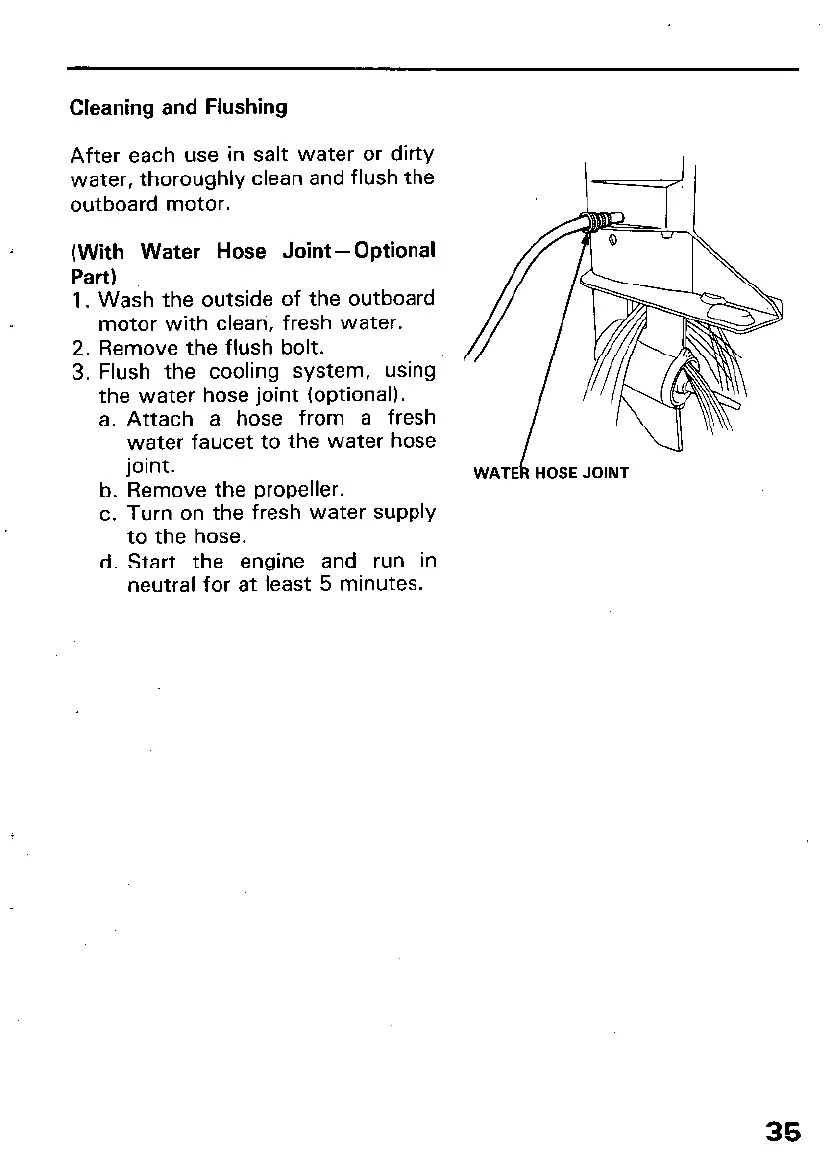

Cleaning and Flushing
After each use in salt water or dirty
water, thoroughly clean and flush the
outboard motor.
(With Water Hose Joint-Optional
Part)
1. Wash the outside of the outboard
motor with clean, fresh water.
2. Remove the flush bolt.
3. Flush the cooling system, using
the water hose joint (optional).
a. Attach a hose from a fresh
water faucet to the water hose
joint.
b. Remove the propeller.
c. Turn on the fresh water supply
to the hose.
d. Start the engine and run in
neutral for at least 5 minutes.
35

Honda Outboard Motor BF15A Specifications

General

Displacement	350 cc (21.4 cubic inches)
Horsepower	15 HP
Cooling System	Water cooled
Fuel Delivery	Carburetor
Ignition System	CDI
Starting System	Manual or Electric
Gear Ratio	2.08:1
Trim Positions	5
Lubrication	Wet sump
Fuel	Unleaded gasoline (86 octane)
Propeller	3-blade aluminum
Gear Shift	F-N-R
Bore x Stroke	59 mm x 64 mm (2.3 in x 2.5 in)
Full Throttle RPM Range	5, 000-6, 000 RPM
Dry Weight	46 kg
Oil Capacity	1.1 L
Alternator	6A, 12V
Shaft Length	15" (Short), 20" (Long)
Fuel Tank Capacity	12 L (External tank)
Exhaust	Through propeller hub
