Battery Lid
#
Removal
1.
Remove the clip (2 P. 63), the screw, and
the collar.
2.
Remove the tabs.
3.
Remove the battery lid by sliding the
battery lid forward and releasing the hook
from the slot.
#
Installation
Install the parts in the reverse order of
removal.
Removing & Installing Body Components u Battery Lid
Maintenance
62

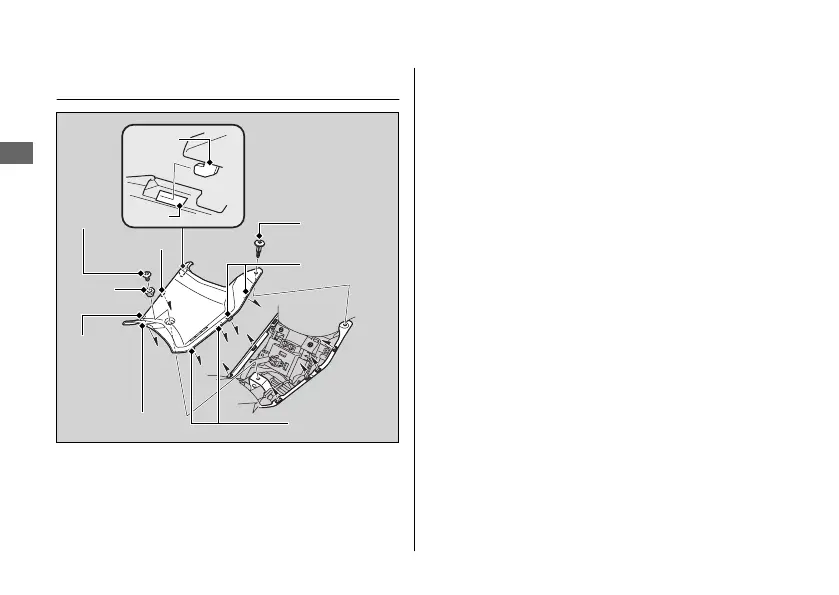

Clip
Screw
Battery lid
Hook
Slot
Tab
Tabs
Tabs
Tab
Collar
