Honda TRAIL125 2023 User Manual

Drive Chain

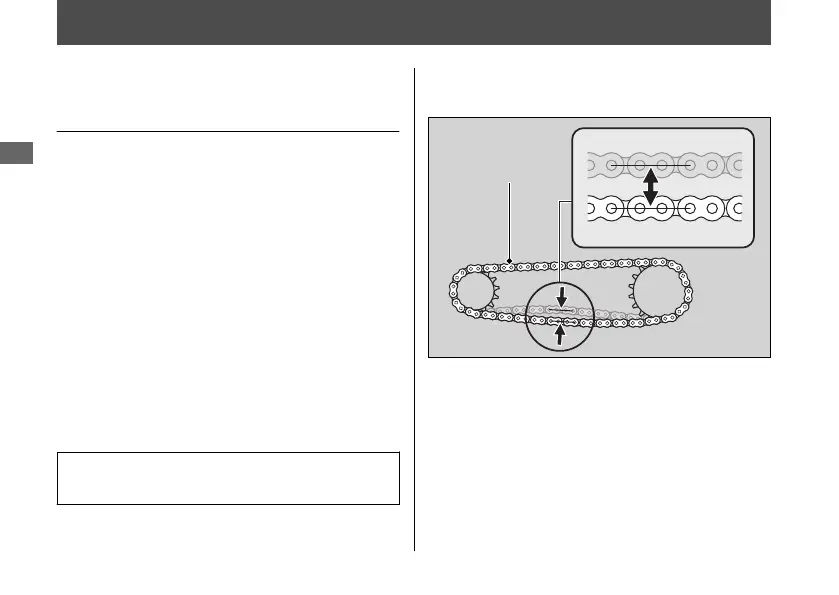

Inspecting the Drive Chain
Slack
Check the drive chain slack at several points
along the chain. If the slack is not constant at
all points, some links may be kinked and
binding.
Have the chain inspected by your dealer.
1.
Shift the transmission to Neutral. Stop the
engine.
2.
Place your vehicle on its center stand on a
firm, level surface.
3.
Move the lower part of the drive chain up
and down to check chain slack, midway
between the sprockets.
Drive chain slack:
1.0 - 1.4 in (25 - 35 mm)
u
Do not ride your vehicle if the slack
exceeds 2.0 in (50 mm).
4. Rotate the rear wheel and check that the
chain moves smoothly.
5. Inspect the sprockets. 2 P. 55
6. Clean and lubricate the drive chain.
2 P. 56
Maintenance
72
Drive Chain

Honda TRAIL125 2023 Specifications

General

Engine Type	124cc air-cooled single-cylinder four-stroke
Bore and Stroke	52.4mm x 57.9mm
Compression Ratio	10.0:1
Final Drive	Chain
Front Tire	80/90-17
Rear Tire	80/90-17
Rake (Caster Angle)	27°
Trail	3.1 inches
Wheelbase	49.4 inches
Seat Height	31.5 inches
Curb Weight	259 pounds
Fuel Capacity	1.4 gallons
Induction	PGM-FI
Ignition	Fully transistorized
Transmission	Four-speed
Front Suspension	Telescopic fork
Rear Suspension	Twin shock
Front Brake	Single 220mm disc
Rear Brake	Single 190mm disc
