Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 53
#

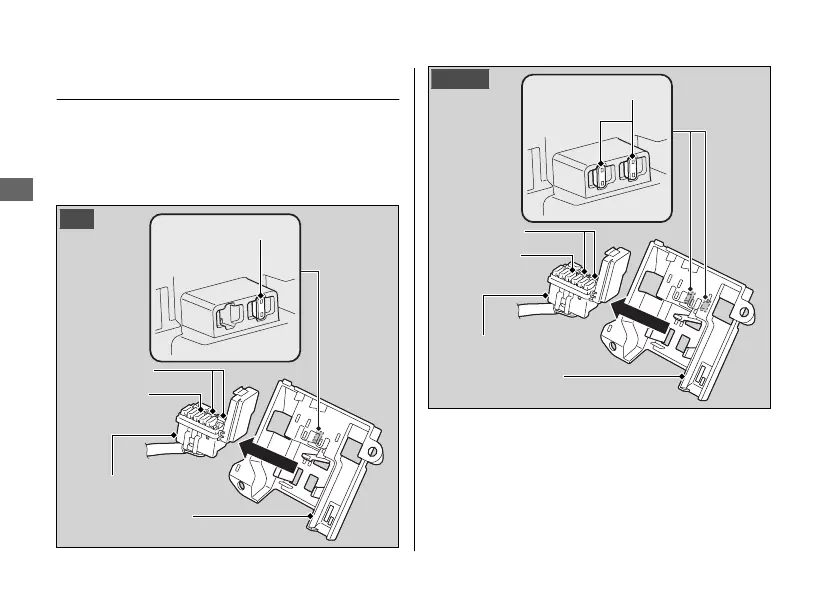

Fuse Box Fuses
1.
Remove the battery lid. 2 P. 62
2.
Remove the battery cover. 2 P. 60
3.
Remove the fuse box from the battery
cover.
4.
Open the fuse boxes cover.
Electrical Trouble u Blown Fuse
Troubleshooting
82
Fuse box
Spare fuse
Battery cover
USA
Spare fuse
Main fuse
Fuse box
Spare fuse
Battery cover
Canada
Main fuse
Spare fuse
