Honda TRAIL125 2023 User Manual

Other Adjustments

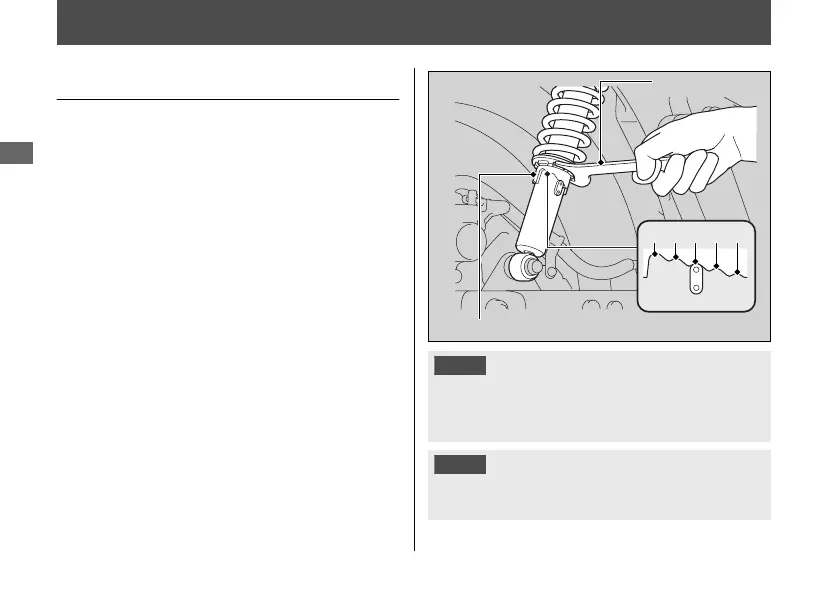

Adjusting the Rear Suspension
Adjusting the suspension requires a pin
spanner. We recommend that you have your
vehicle serviced by your dealer.
#
Spring Preload
You can adjust the spring preload by the
adjuster to suit the load or the road surface.
Use a pin spanner to turn the adjuster.
Position 1 and 2 are for a decrease in spring
preload (soft), and position 4 and 5 are for
an increase in spring preload (hard). The
standard position is 3.
NOTICE
Do not turn the adjuster beyond its limits.
Adjust both left and right shock absorbers to the
same spring preload.
NOTICE
Attempting to adjust directly from 1 to 5 or 5 to 1
may damage the shock absorber.
Maintenance
74
Pin spanner
Adjuster
1 2 3 4 5

Honda TRAIL125 2023 Specifications

General

Engine Type	124cc air-cooled single-cylinder four-stroke
Bore and Stroke	52.4mm x 57.9mm
Compression Ratio	10.0:1
Final Drive	Chain
Front Tire	80/90-17
Rear Tire	80/90-17
Rake (Caster Angle)	27°
Trail	3.1 inches
Wheelbase	49.4 inches
Seat Height	31.5 inches
Curb Weight	259 pounds
Fuel Capacity	1.4 gallons
Induction	PGM-FI
Ignition	Fully transistorized
Transmission	Four-speed
Front Suspension	Telescopic fork
Rear Suspension	Twin shock
Front Brake	Single 220mm disc
Rear Brake	Single 190mm disc
