Honda XR150 2018 User Manual

Removing & Installing Body Components
Battery
#
Removal
Make sure the ignition switch is in the OFF
position.
1. Remove the left side cover. 2 P. 50
2. Remove the bolt and collar.
3. Remove the battery holder.
4. Disconnect the negative - terminal from
the battery.
5. Disconnect the positive + terminal from
the battery.
6.
Remove the battery taking care not to
drop the terminal nuts.
#
Installation
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure that bolts and nuts
are tight.
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 36
“Battery Goes Dead.” 2 P. 83
20171023164032_32KRHH100_eng_BOOK Page 51 Monday, October 23 2017 17:21:44 JST
Maintenance
48

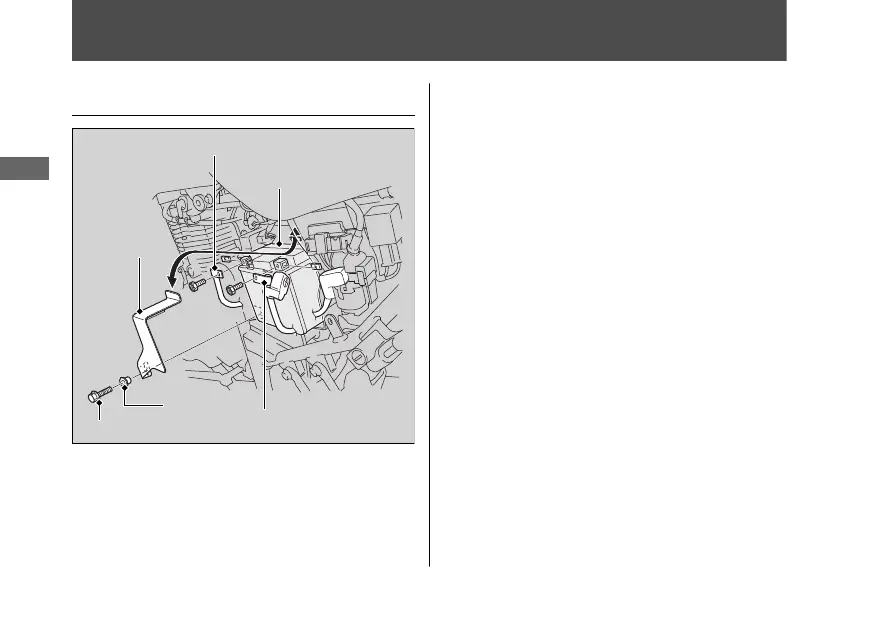

Positive terminal
Negative terminal
Battery
Collar
Bolt
Battery
holder
