Seat
#
Removal
1.
Remove both side covers. 2 P. 50
2.
Remove the bolts and collars.
3.
Pull the seat back and up.
#
Installation
1.
Align the front recesses to the front hooks
and rear recess to the rear hook.
2.
Slide the seat into position.
3.
Install the collars and tighten the bolts
securely.
4.
Install both side covers.
20171023164032_32KRHH100_eng_BOOK Page 52 Monday, October 23 2017 17:21:44 JST
Removing & Installing Body Components u Seat
Maintenance
49

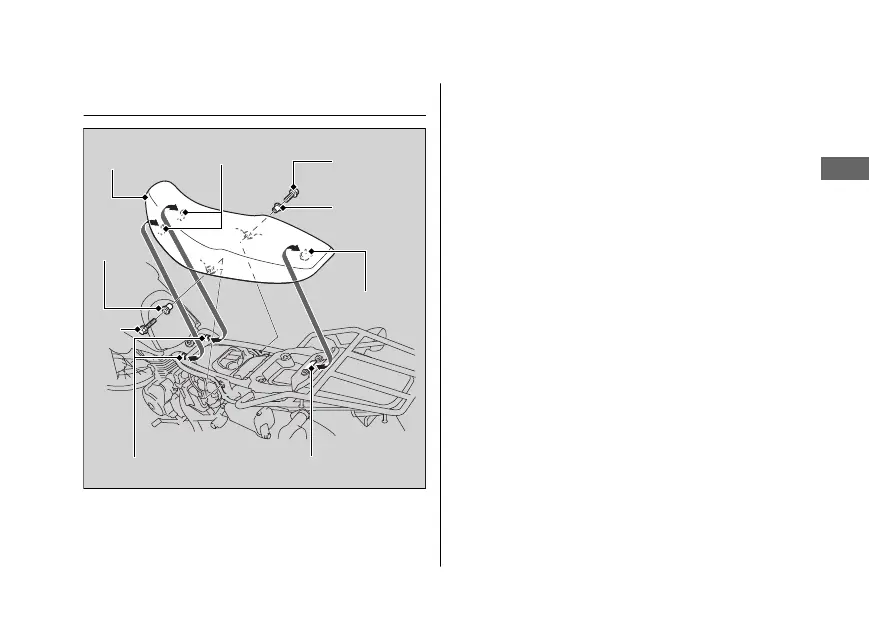

Collar
Bolt
Front recesses
Seat
Front hooks
Rear hook
Rear recess
Bolt
Collar
