Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 39
#
Fuse Box Fuses
1.
Remove the left side cover. 2 P. 50
2.
Open the fuse box cover.
3.
Pull out the fuses one by one to check for
a blown fuse. Always replace a blown fuse
with a spare fuse of the same rating.
4.
Close the fuse box cover.
5.
Install the parts in the reverse order of
removal.
20171023164032_32KRHH100_eng_BOOK Page 90 Monday, October 23 2017 17:21:44 JST
Electrical Trouble u Blown Fuse
Troubleshooting
87
Continued

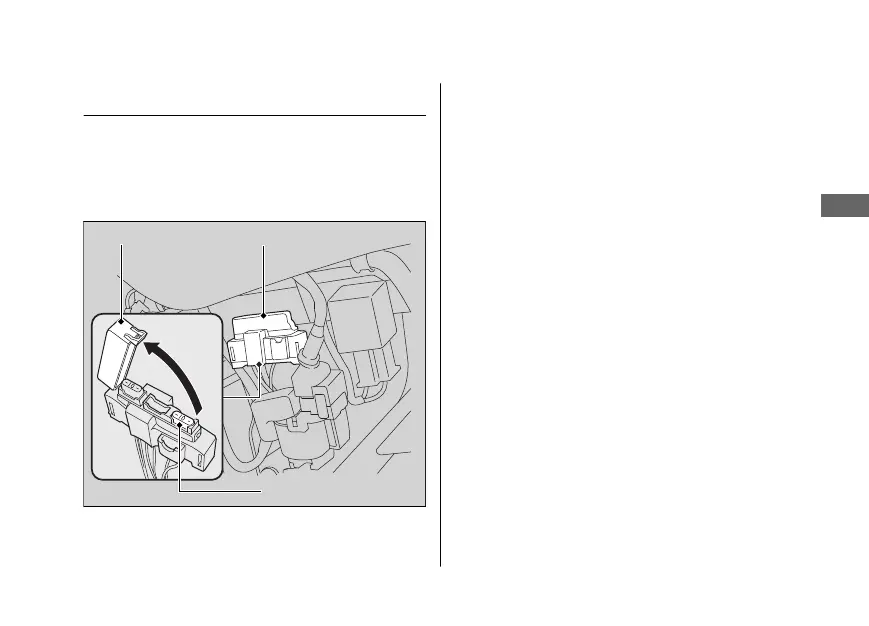

Fuse box cover
Fuse box
Spare fuse
