Planning LION System
EN1Z-0921GE51 R0709
16
Dimensions
Controller Module
144
92.75
110
28
32
45

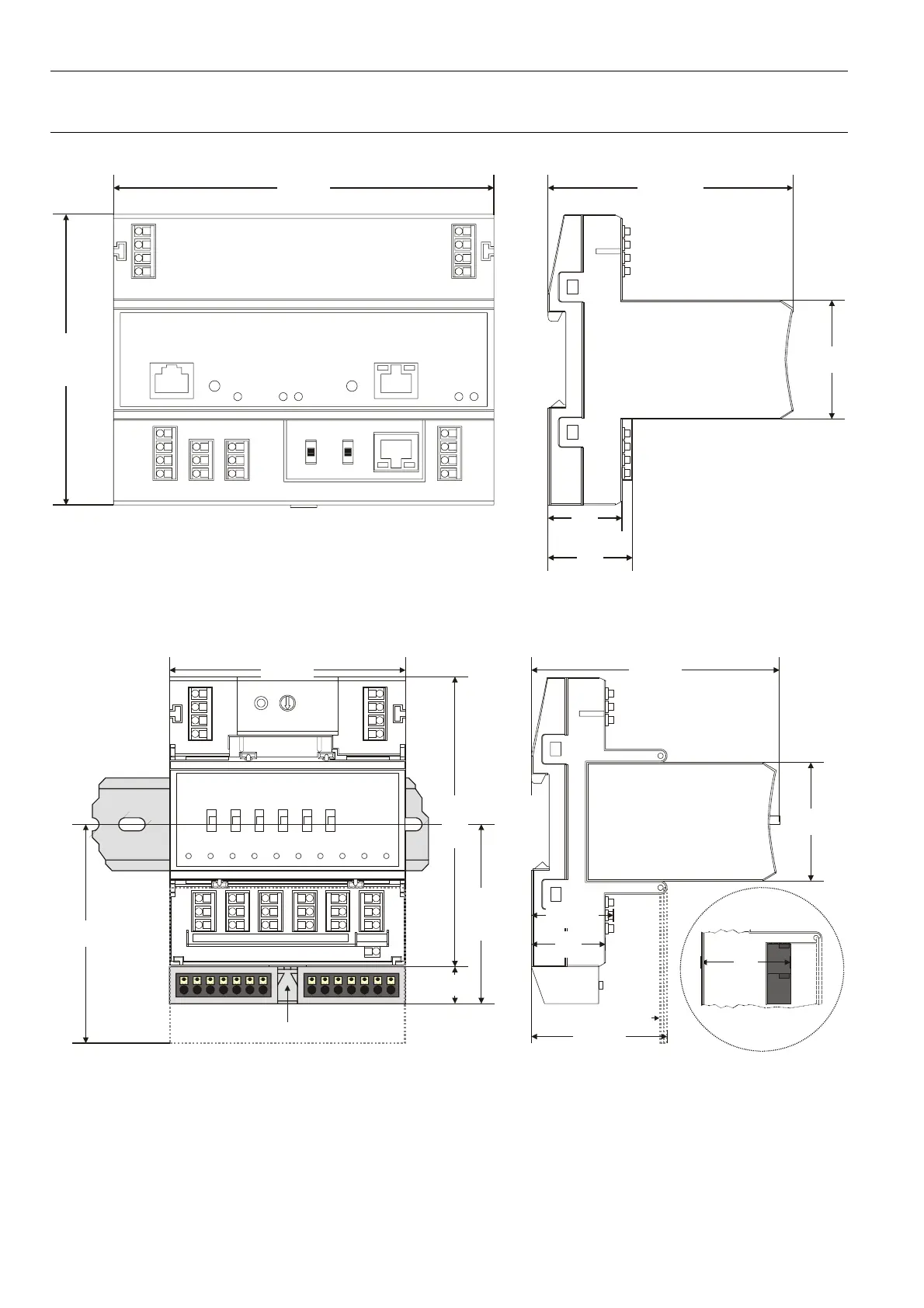

Fig. 11 Controller module, outside dimensions (in mm)
Pluggable I/O Modules
LOCK
89.5 94.1
51.5
45
83
67.5
14
110
XS814 Aux. Terminal Package (optional)
28
30.6
SWIVEL LABEL HOLDER
38
SCREW-TYPE
TERMINALS
Fig. 12 Pluggable I/O modules (shown with manual overrides), including XS814 Aux. Terminal Package, dimensions (in mm)
