LION System System Overview
5 EN1Z-0921GE51 R0709
I/O Modules
Variants of Pluggable I/O Modules
There are 2 variants of pluggable I/O modules:
• Panel Bus I/O modules with communication via Panel
Bus (light gray housings)
Modules are automatically commissioned (with firmware
download) by the CLLIONLC01 Controller
• L
ONWORKS Bus I/O modules (dark gray housings) with
communication via L
ONWORKS (FTT10-A, link power
compatible) for easy integration and use with 3
rd
-party
controllers
Mixed I/O Modules
Besides the pluggable Panel Bus I/O modules (consisting of
a terminal socket and a removable electronic module), there
are also mixed Panel Bus I/O modules. Specifically: the
CLIOP830A is a mixed Panel Bus I/O modules, featuring an
integrated terminal socket and a variety of inputs and
outputs.
Mixed Panel Bus I/O modules have a light-gray housing and
are likewise automatically commissioned (with firmware
download) by the CLLIONLC01 Controller.
Terminal Sockets
Pluggable I/O modules are mounted on the appropriate
terminal sockets. Pluggable Panel Bus I/O modules and
pluggable L
ONWORKS Bus I/O modules use the same
terminal sockets. The terminal sockets are available with
push-in terminals (XS82…) or with screw-type terminals
(XSU82…).
Mixed I/O modules feature an integrated terminal socket.
Color Coding
To distinguish modules and components, the following color
coding is used:
Color Part
Red All of the user-accessible adjustable
mechanical parts (i.e., bridge connectors
and locking mechanism) and operating
controls (manual overrides, etc.)
Light-gray
Panel Bus I/O modules
Dark-gray
L
ONWORKS Bus I/O modules
Table 2 Color coding of LION Modules
CLLIONLC01
MIXED I/Os
pluggable
ANALOG OUTPUT
pluggable
ANALOG INPUT
pluggable
BINARY INPUT
pluggable
FLOATING
OUTPUT
pluggable
RELAY OUTPUT
XS821-22
XSU821-22
X
S823
X
SU823
X
S824-25
X
SU824-25
LonWorks or Panel Bus
CLIOP821A
CLIOL821A
CLIOP822A
CLIOPR822A
CLIOL822A
CLIOLR822A
CLIOP823A
CLIOL823A
CLIOP824A
CLIOPR824A
CLIOL824A
CLIOLR824A
CLIOPR825A
PANEL
BUS MODULES
LonWorks
BUS MODULES
CLIOP830A
PANEL BUS I/O MODULE

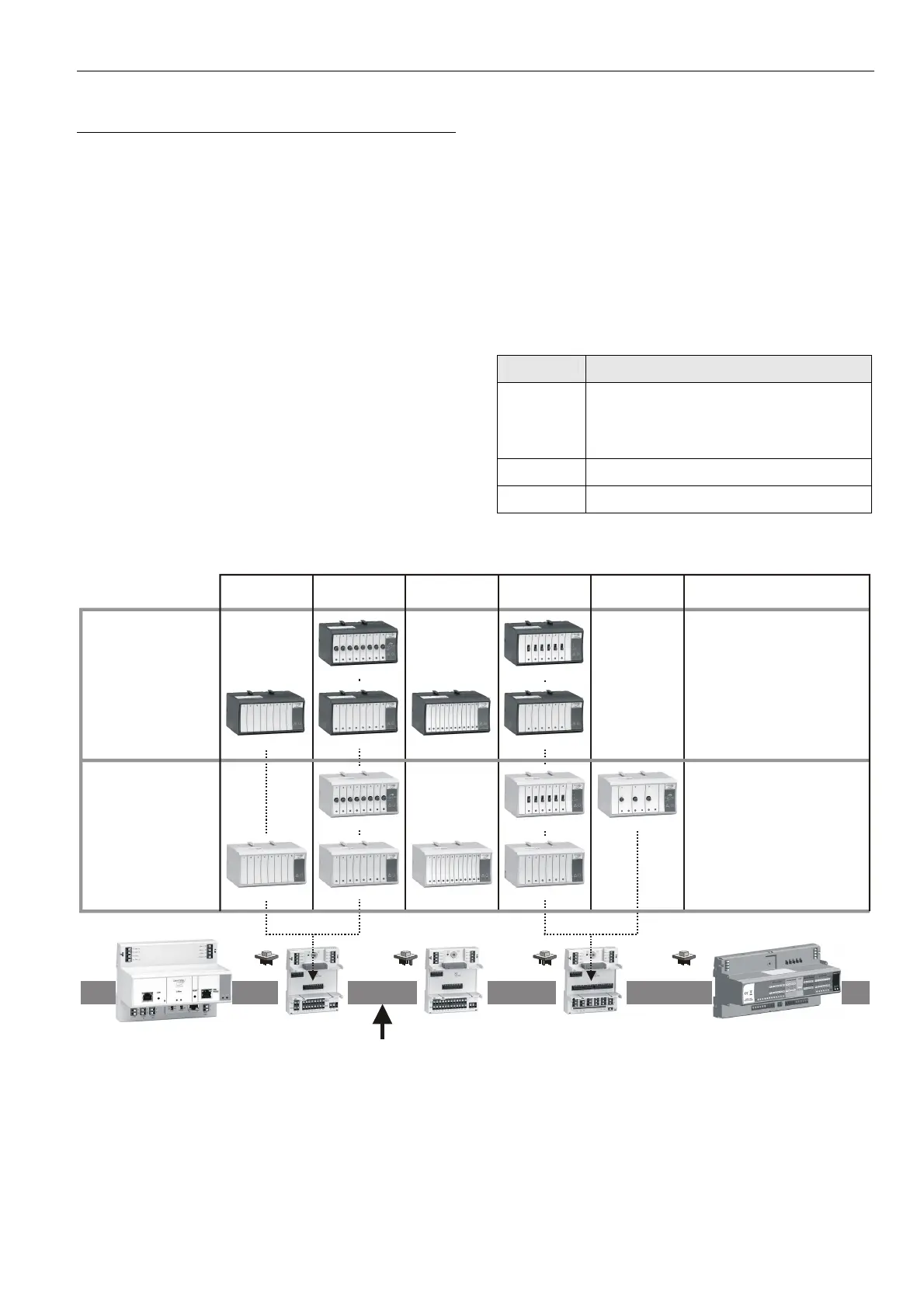

Fig. 3 Overview of I/O modules and terminal sockets
