LION System Description of Extra Parts
67 EN1Z-0921GE51 R0709

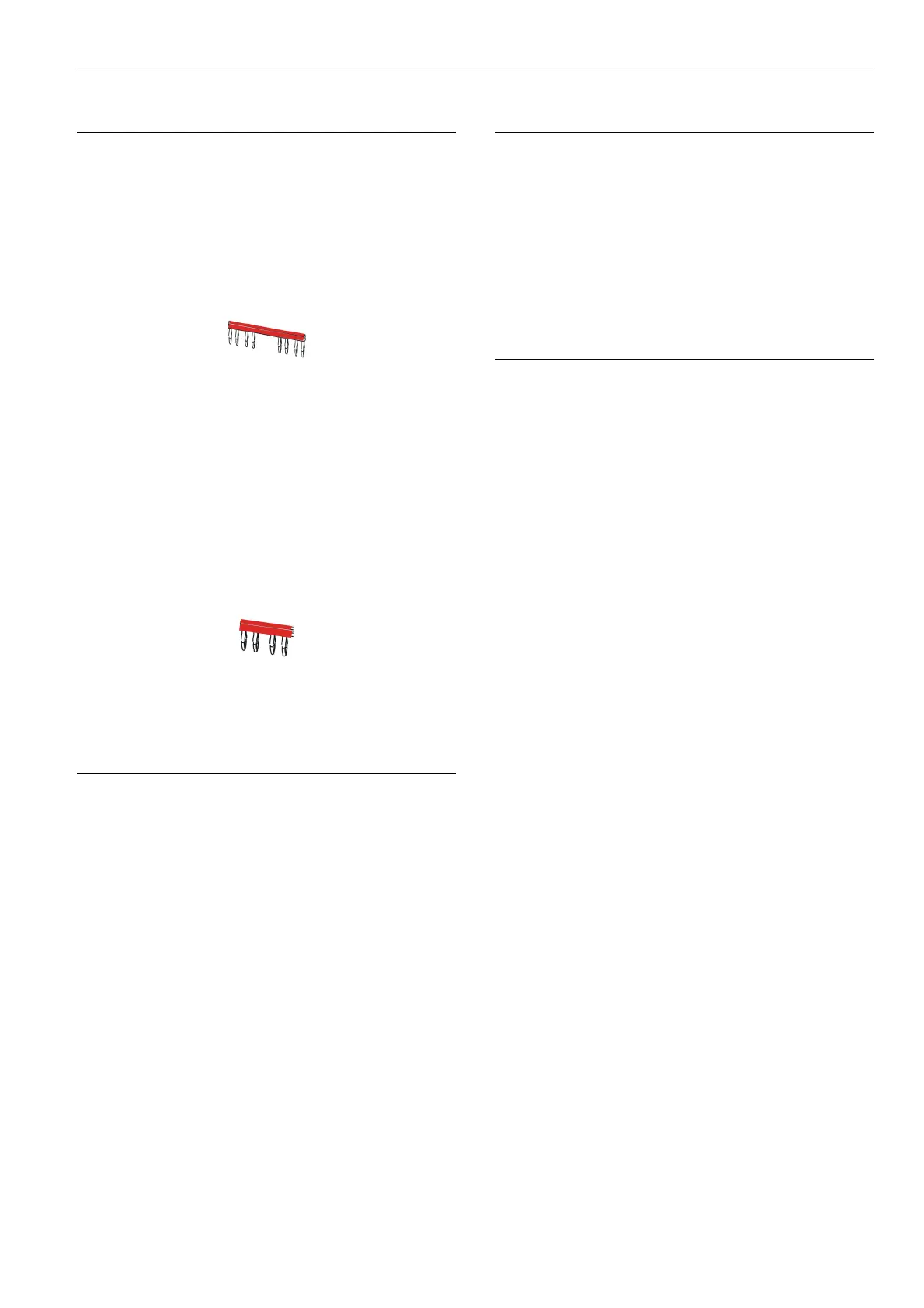

Cross Connectors
XS815 Cross Connector Features
• For connecting the common terminals of all 6 relays of
the CLIOL824 and CLIOLR824 Relay Output Modules
and the CLIOLR825 Floating Output Module. This is
permitted when all terminal blocks carry the same voltage
• Long, red
• Supplied with the terminal socket
Fig. 99 XS815 Cross Connector
XS817 Cross Connector Features
• For connecting the common terminals of only relays 1–3
or of relays 4–6 of the CLIOL824 and CLIOLR824 Relay
Output Modules and the CLIOLR825 Floating Output
Module.
• Short, yellow
• Must be ordered separately
Fig. 100 XS817 Cross Connector
XAL10 Swivel Label Holders
• Type: XAL10 Swivel Label Holder.
• Supplied with the terminal socket.
• For applying self-adhesive labels with application
information generated using the engineering tool to the
pluggable I/O modules.
• For use with standard commercially-available labels,
e.g., AVERY 6572 or 6578
XAL11 Swivel Label Holders
• Type: XAL11 Swivel Label Holder.
• Supplied with the mixed I/O module.
• For applying self-adhesive labels with application
information generated using the engineering tool to the
mixed I/O modules.
• For use with standard commercially-available labels,
e.g., AVERY 5444, 5523, 8253, 16163, or 15513
XS816 Bridge Connectors
• Type: XS816 Bridge Connectors
• Bridge connectors transmit both communication signals
and power supply between LION modules
• Supplied with the terminal socket / CLIOP830A
