LION System Description of the I/O Modules
53 EN1Z-0921GE51 R0709
Relay Output Modules
Types of Relay Output Modules and Terminal
Socket
Type Description Housing
CLIOP824 Panel Bus relay output module Light gray
CLIOPR824
Panel Bus relay output module
with manual overrides
Light gray
CLIOL824
L
ONWORKS Bus relay output
module
Dark gray
CLIOLR824
L
ONWORKS Bus relay output
module with manual overrides
Dark gray
XS824-25
XSU824-25
Terminal socket; can be fitted
with long (red) cross connector
(incl. in scope of the delivery)
Light gray
Table 53 LION Relay Output Modules
Features
• 6 relays (changeover contacts), arranged in two blocks
• …R824: 6 manual overrides
• Low and line voltage allowed, see WARNING.
21
564
3

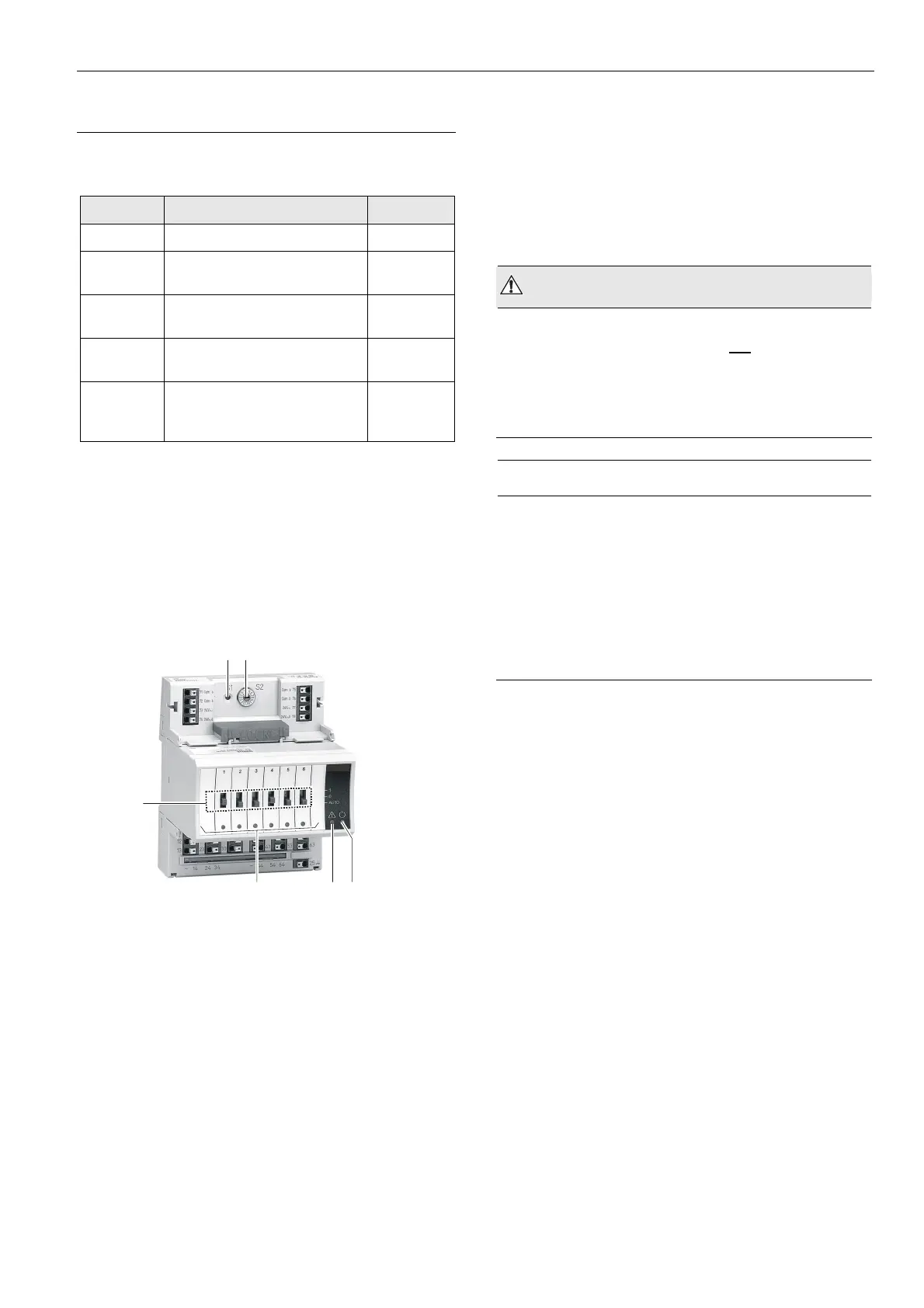

Fig. 75 CLIOP824A Relay Output Module with terminal
socket
Legend
1 Service button S1
2 Hex switch S2
3 Manual overrides
4 Status LEDs
5 Service LED
6 Power LED
Functionality of service LED and power LED: see Table 77
to Table 79 on page 78 and following.
In the event of communication problems, the relay outputs
will move to the safety positions you have configured using
the engineering tool, see relay output point description in the
CARE – User Guide, 74-5587/EN2B-0182GE51.
WARNING
Risk of electric shock or equipment damage!
Low voltage and line voltage must not
be wired within
the same relay block.
► Wire low voltage e.g., to relay block 1 and line voltage to
relay block 2 or vice versa. In this case the short cross
connectors must be used, see Table 5 on page 7.
NOTICE
Risk of malfunction!
Cross connectors may only be used if the same voltage
is used on all relays they connect.
► Do not use a cross connector if different voltages are
used on the relays.
E.g., use a short cross connector for relay block 1 with
line voltage and no cross connector for relay block 2 with
12 V low voltage for relay 4 and 24 V low voltage for
relays 5 and 6.
