MOUNTING
Humidifier Control Installation
Humidifier 69-2413EF—01
11

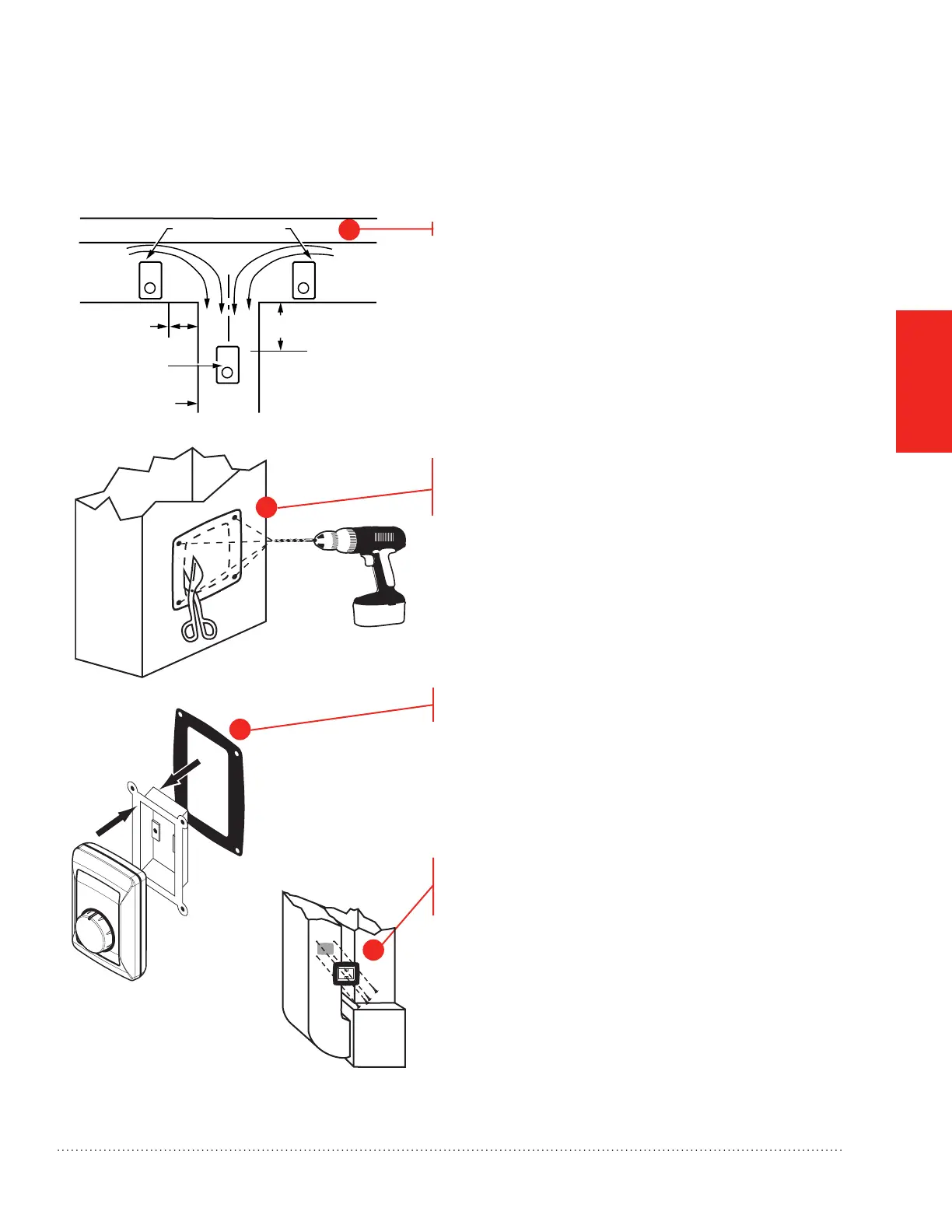

OPTION ONE: Duct Installation of H8908 Humidistat (provided)
If a different control is being used, refer to installation instructions provided with that control.
Choose a location on the duct.
Apply sticker template to duct and drill holes for
mounting screws. Cut along the dotted line of the
template with metal shears or tin snips.
Remove the base bracket from the humidistat. Slide
the black gasket onto the base bracket.
Secure the base bracket to the duct.
Secure to the duct with four 1-in. (25 mm)
screws (provided).
ALTERNATE LOCATION
RETURN
AIR
RETURN
AIR
6 in. (152 mm)
MINIMUM
15 in. (381 mm)
MINIMUM
BEST
LOCATION
RETURN AIR DUCT
M13369
2
4
1
3
