PLUMBING
STEP THREE: Connect to the Water Drain
Consult and follow local plumbing codes for drain s
pipe size and flow requirement.
The ideal installation is directly to the main floor s
drain using the rubber hose provided.
If direct floor drain access is not available, s see
“Appendix B: Advanced Draining.”

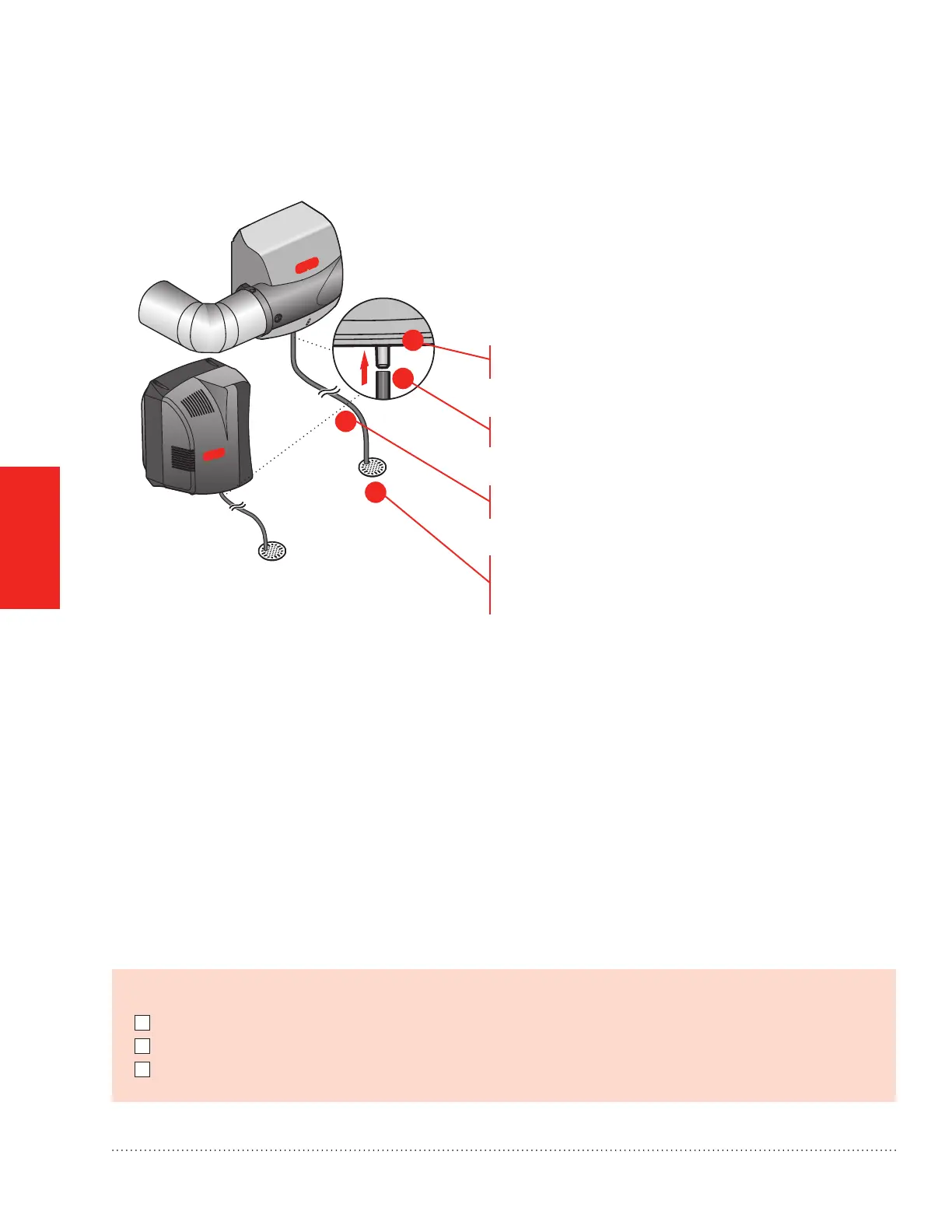

Connect the 1/2-in. drain hose provided to the drain
fitting on the bottom of the humidifier.
Use the hose clamp provided to secure the drain hose
to the fitting.
Route the drain hose to the floor drain. The hose must
have a continuous downward slope.
Direct the hose outlet into the floor drain. Secure
the hose to reduce the risk of water pooling or
splashing as it drains from the humidifier.
Before proceeding to Wiring:
I have connected the water supply line to the humidifier and the main water tap.
I have installed the drain connection.
I have checked all plumbing connections for leaks.
4
3
2
1
Humidifier 69-2413EF—01
