Rear Panel Connectors

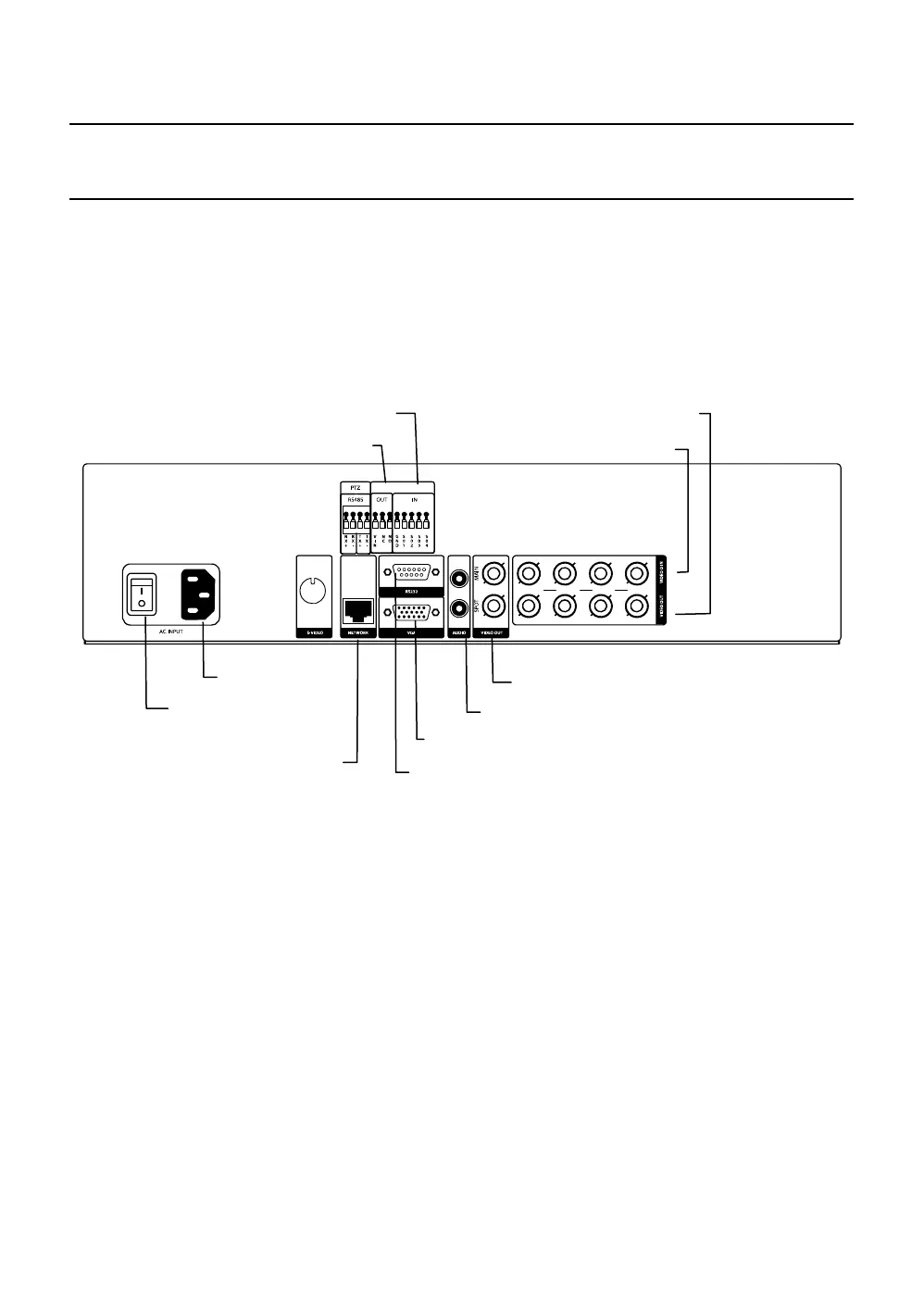

The rear panel of the DVR contains virtually all of the connectors you will be
using. The diagrams below outline the location and description of each
connector:
4 Channel
OUT
IN
Spot Monitor Outputs
Power Switch
AC Power Input
Network Port
RS-232 Input
VGA Output
Audio Input / Output
V
ideo In Ports
Video Out Ports
Relay Output
Sensor Input

Honeywell HRDP DVR Specifications

General

Brand	Honeywell
Model	HRDP DVR
Category	DVR
Language	English
