RP-2002 Series Manual — P/N 53039:E6 1/26/2017 17
Controls and Indicators Product Description
1.3 Controls and Indicators
LCD Display
The FACP uses an 80-character (4 lines X 20 characters) high
viewing angle LCD display. The display includes a long life
LED backlight that remains illuminated. If AC power is lost and
the system is not in alarm, the LED backlight will turn off to
conserve batteries.
Key Panel
Mounted on the main circuit board, the key panel includes a window for the LCD display and indi-
cators as listed above. The key panel, which is visible with the cabinet door closed, has 25 keys,
including a 16 key alpha-numeric pad similar to a telephone keypad.
Function keys:
• Acknowledge/Step
• Alarm Silence (Domestic/Export version)/Signal Silence (Canadian version)
• Drill (Domestic/Export version)/Alarm Signal (Canadian version)
• System Reset (lamp test)
Service/program keys:
• Keys labeled 1 to 9
• * key
• # key
• 0 (recall) key
• 1st Event key
• Clear key
• Escape key
• Mode key
• Four cursor keys (up, down, left and right)
• Enter key
Local Piezo Sounder
A piezo sounder provides separate and distinct pulse rates for alarm, trouble and supervisory condi-
tions.
Indicators
Indicators are provided to annunciate the following conditions:
SYSTEM ALL NORMAL
10:00A 092214
1
1
2
3
4
5
6
7
8
9
0
ABC DEF
GHI
-/.
ESC
JKL
ALARM
SILENCED
ENTER
TROUBLE
ALARM SILENCED
SUPERVISORY
AC POWER
FIRE ALARM
PRE-DISCHARGE
DISCHARGE
A
B
O
R
T
1
1
2
3
4
5
6
7
8
9
0
ABC DEF
GHI
-/.
ESC
JKL
SIGNAL
SILENCE
ENTER
TROUBLE
ALARM SILENCED
SUPERVISORY
AC POWER
FIRE ALARM
PRE-DISCHARGE
DISCHARGE
A
B
O
R
T

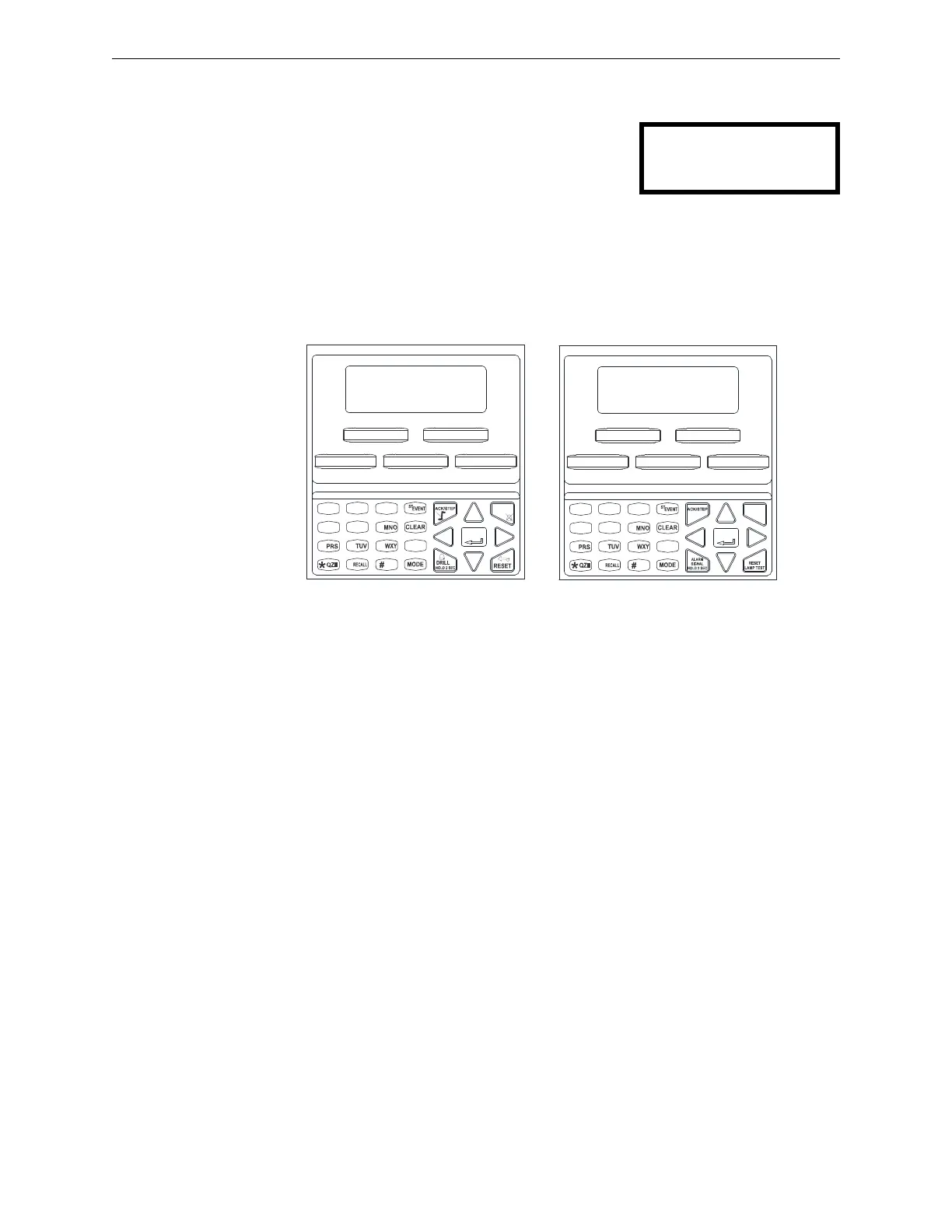

Figure 1.2 Membrane/Display Panel
RP2001kypd.cdr
RP-2002 Keypad
RP-2002C Keypad
