Honeywell PW7000 Series User Manual

PW7K1R1E Wiring and Setup
Terminal Connections
PW7K1R1E OSDP Reader Interface, Configuration, and Installation Guide, Document 800-26498 11

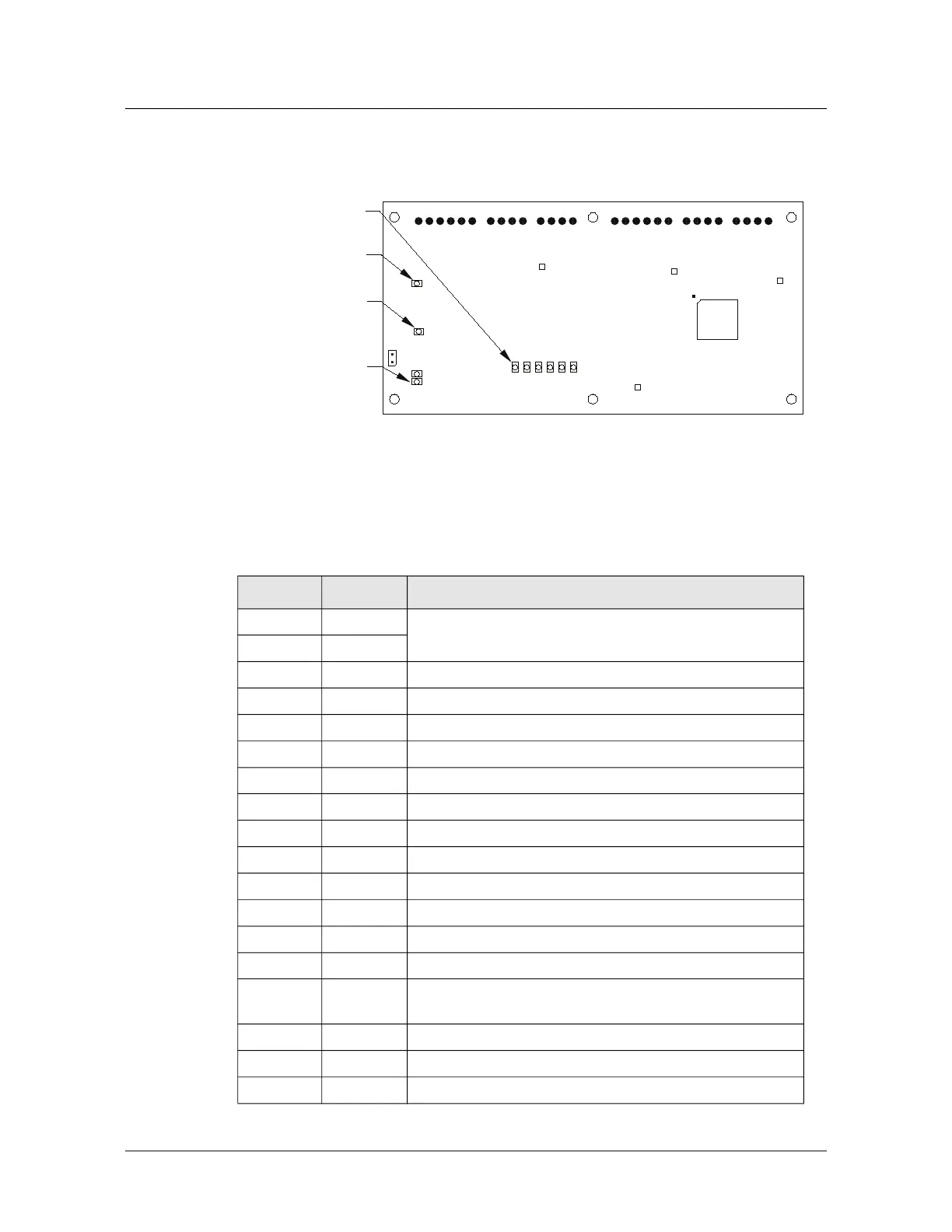

Figure 2-2: PW7K1R1E Control Board Solder Side
2.2 Terminal Connections
123456
VO
VO
IN2
IN1
IN3
IN4
LED
BZR
CLK
DAT
GND
LED
BZR
CLK
DAT
NC
GNDGND
VIN
NO
RLY 1
NO
RLY 2
NC
C
C
TB6
TB5
TB4
TB3
TB2
TB1
J1
6V
5V
3.3V
LNK
ACT
(K1)
(K2)
J4
D24
D19
ETHERNET
STATUS
LEDs
RELAY K1
LED
RELAY K2
LED
STATUS LEDs
SOLDER SIDE
Table 1: PW7K1R1E Terminal Connections
Terminal Acronym Description
TB1-1 IN1 Input 1
TB1-2 IN1
TB1-3 IN2 Input 2
TB1-4 IN2
TB2-1 IN3 Input 3
TB2-2 IN3
TB2-3 IN4 Input 4
TB2-4 IN4
TB3-1 IN5 Input 5
TB3-2 IN5
TB3-3 IN6 Input 6
TB3-4 IN6
TB4-1 VO Auxiliary Power Output - 12VDC
TB4-2 GND Auxiliary Power Output Ground
TB4-3 VIN Input Power 12-VDC (from local Power supply)
TB4-4 GND Input Power Ground
TB5-1 NO Relay K1-Normally Open Contact
TB5-2 1-C Relay K1-Common Contact
