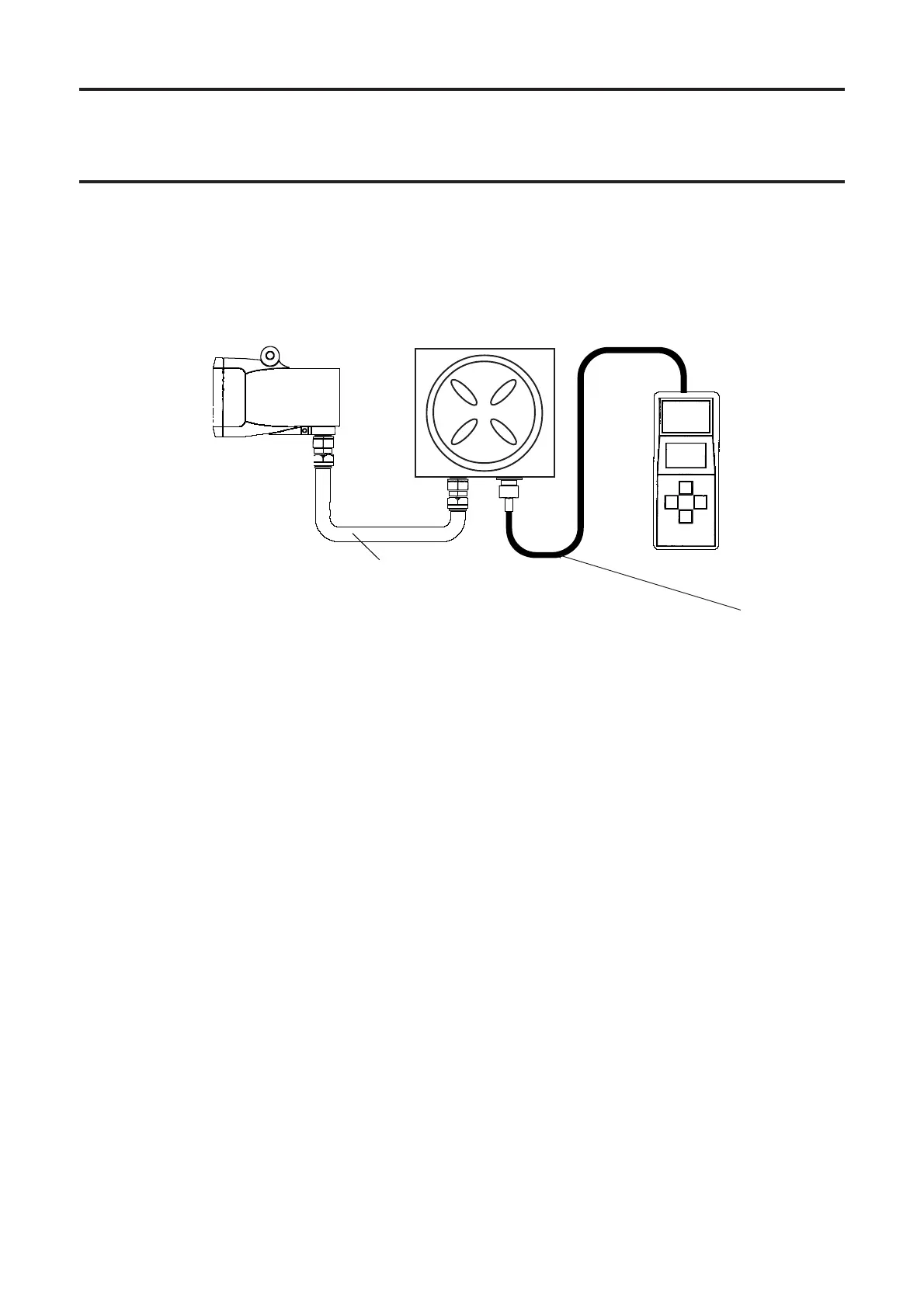

MAN0530 Issue 09 October 03 Searchline Excel
2104M0506
CSA approved
M20/0.5in. NPT adaptor
IS Cable
Length 15m max.
DX100/DX100(M) CSA
Termination Unit
Class I Div 1
Groups B, C, D
(Tamb -55 to +40 C)
o
SHC1 Handheld
Interrogator
Class I Div 1
Groups B, C, D
(Tamb -55 to +40 C)
o
Receiver
Class I Div 1 Groups B, C, D
T5 and Exd IIC T5
(Tamb -40 to +65 C)
o
Flexible conduit -
must conform with the relevant
Canadian installation codes of practice
(see Control Drawing 2104E0097)
(customer supplied)
8. CERTIFICATION
CSA Receiver:
Class 1 Div 1 Groups B, C, D
Class 1 Zone 1 AEx d IIB + H2
(Tamb -40 to +65
o
C)
DX100/DX100(M) CSA/FM
Termination Unit Class I Div 1
Groups B, C, D (Tamb -25 to +40
o
C)
SHC1 Handheld
Interrogator CSA/FM
Class 1 Div 1
Groups B, C, D
(Tamb -50 to +40
o
C)
FM Receiver:
Class 1 Div 1
Groups
B, C & D
(-40 to +65
o
C)
UL approved
M20/0.5in. NPT adaptor
Note: Later units
1
/
2
" NPT
threaded without adaptor
Solid conduit (customer supplied) -
must conform with the relevant US and
Canadian installation codes of practice
(conduit seal required within 30" of transmitter)
IS Cable
Length
15m max.
Conduit
seal
required
within 6"
of encford
(see OEM
details
for J/B)
(see also electrical insulation Cross-Duct Section 4)
