l A battery is fully charged and can be removed from
the charger when the ring LED indicator light for that
port on the charger is green.
l If you insert a fully charged battery into a charger, the
charger will analyze the battery's status and then "top
off" the battery's charge. The ring LED indicator light
for that port will be yellow during this process. When
complete, the ring LED indicator will turn green.
1. Make sure the battery charger is powered. To power on the charger, connect
the power supply to the charger and a power source. The LED indicator light
at the bottom right of the charger face panel should be solid green.
2. Power off the headset by pressing and holding the Power button on the
electronics module for approximately one second.
3. Remove the battery from the headset electronics module.
4. Hold the battery with the Vocollect logo facing toward you, and push it onto
an empty port on the battery charger until it snaps into place.
5. Make sure that the battery is properly mounted on the charger port. The ring
LED indicator light will turn yellow or green when the battery contacts
connect to the charger port contacts. If the ring LED blinks red, the battery
is not seated properly. Remove the battery, and mount it on the port again.
NOTE
See the chart on SRX2/SRX3 battery charger LED Indicators for more
information on LED patterns .
6. When the ring LED indicator turns a solid green, the battery is fully charged.
Pull the battery off the charger port to insert it into a headset electronics
module.

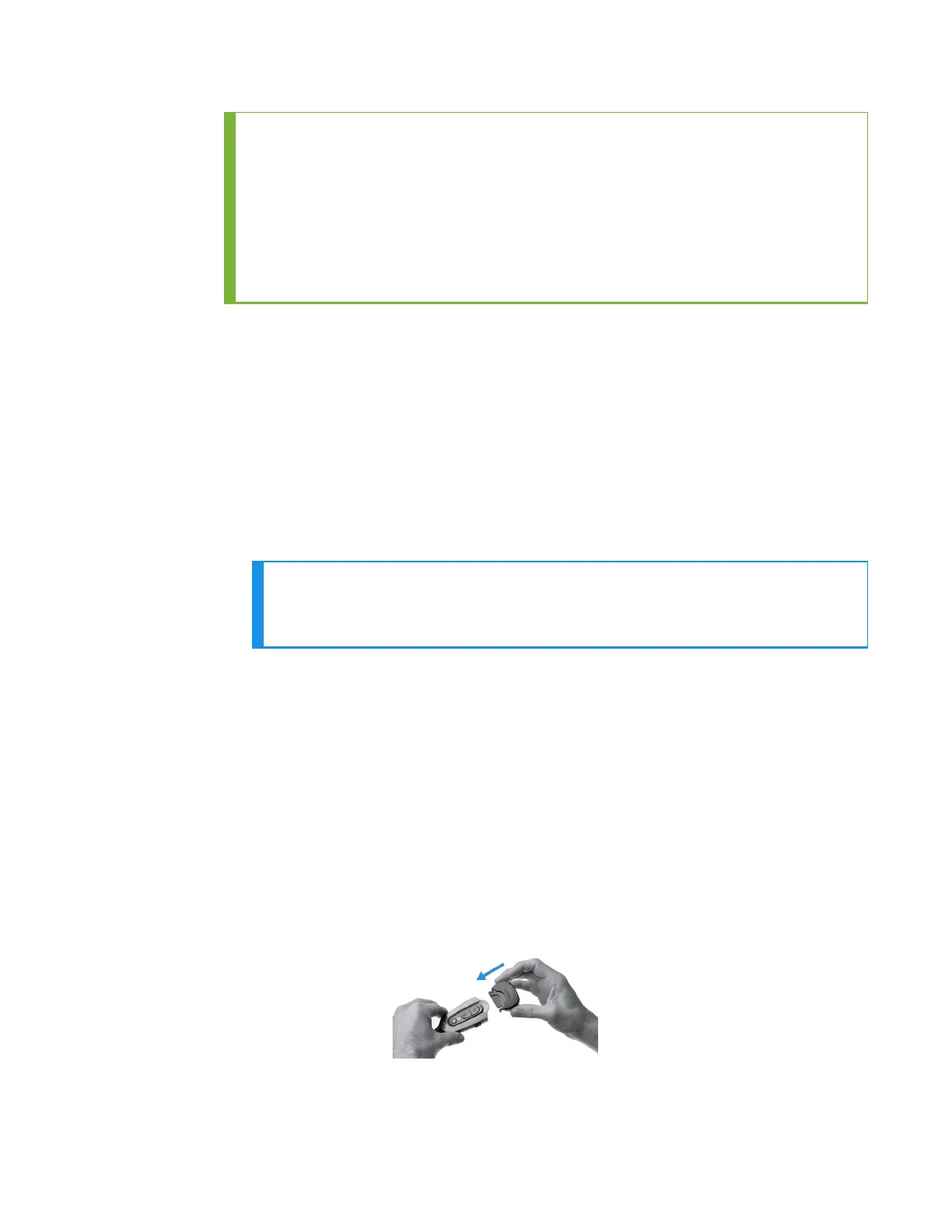

Inserting a Battery into the SRX2 Wireless Headset
1. Make sure the battery is charged. A battery is fully charged and can be
removed from the charger when the LED ring indicator on the charger port
for that battery is green.
2. Position the headset electronics module with the buttons facing toward you.
3. Hold the battery with the label side down and contacts facing the open end
of the electronics module opposite the mic boom.
4. Push the battery onto the electronics module until it clicks in place.
5. Make sure the battery is firmly in place and cannot be removed without
pressing the battery release latches.
SRX3 User Guide - Preliminary 16
