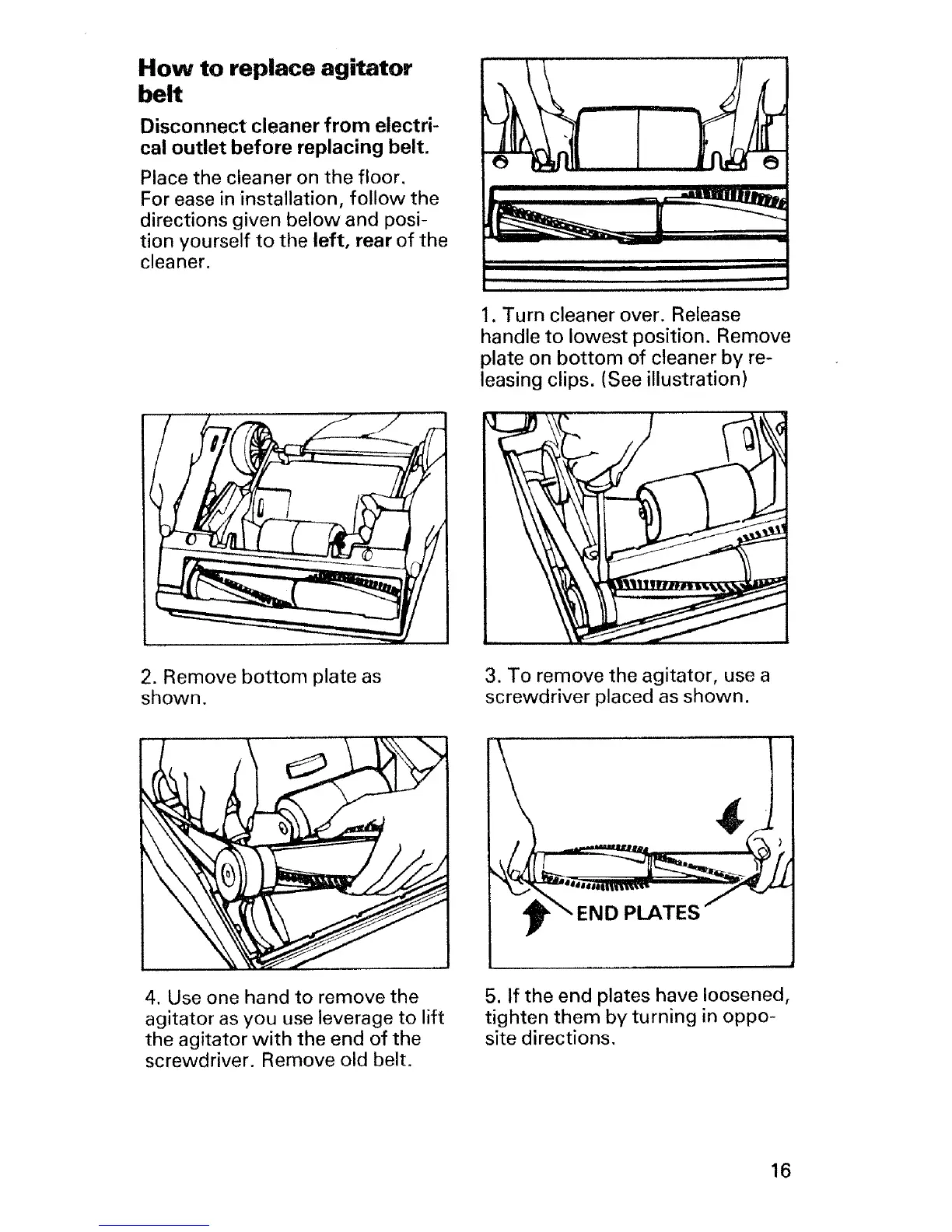

How to replace agitator
belt
Disconnect cleaner from electri-
cal outlet before replacing belt.
Place the cleaner on the floor.
For ease in installation, follow the
directions given below and posi-
tion yourself to the left, rear of the
cleaner.
j
2. Remove bottom plate as
shown.
1. Turn cleaner over. Release
handle to lowest position. Remove
plate on bottom of cleaner by re-
leasing clips. (See illustration)
3. To remove the agitator, use a
screwdriver placed as shown.
PLATES
4. Use one hand to remove the
agitator as you use leverage to lift
the agitator with the end of the
screwdriver. Remove old belt.
5. If the end plates have loosened,
tighten them by turning in oppo-
site directions.
