• _-- .j

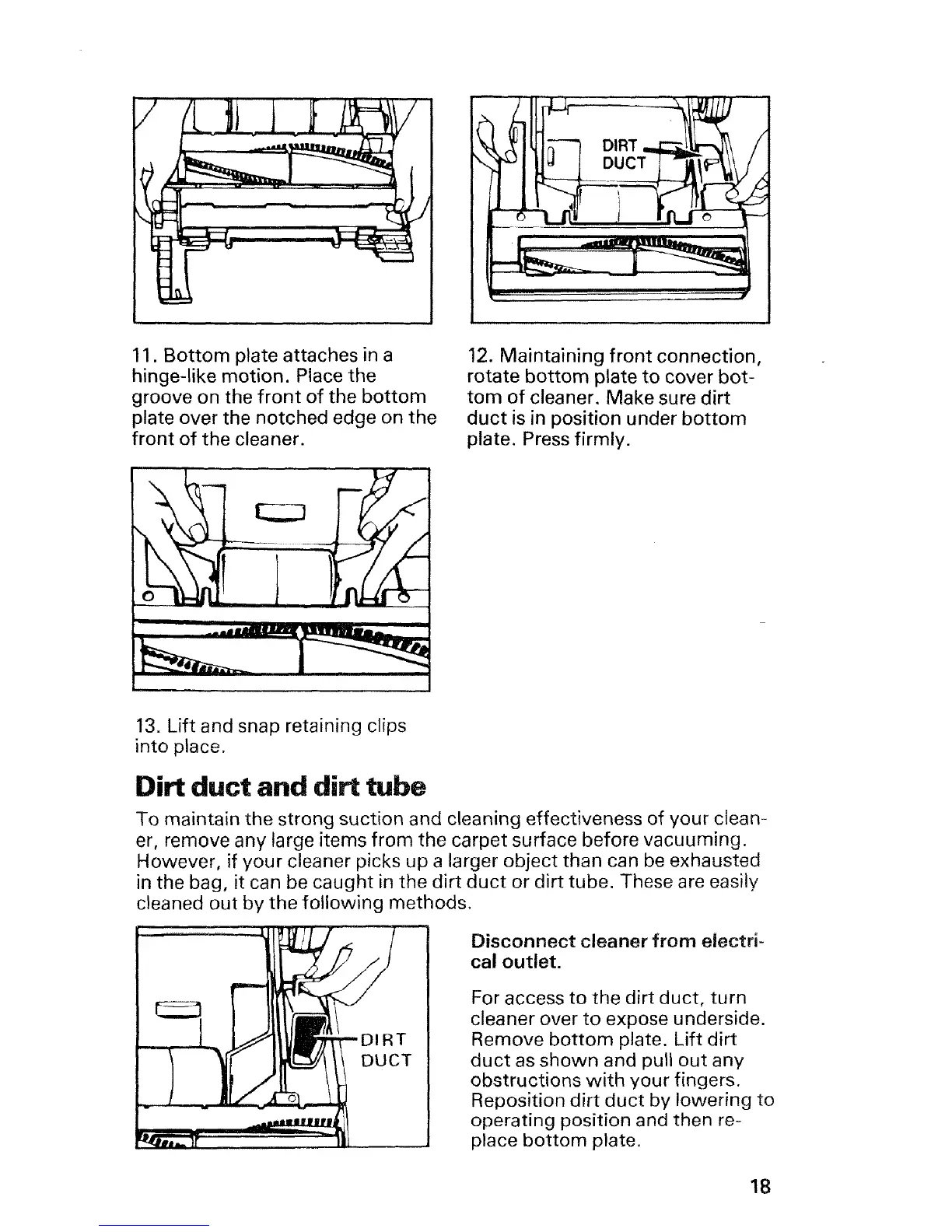

11. Bottom plate attaches in a
hinge-like motion. Place the
groove on the front of the bottom
plate over the notched edge on the
front of the cleaner.
.t , _y-_--m
/
J
12. Maintaining front connection,
rotate bottom plate to cover bot-
tom of cleaner, Make sure dirt
duct is in position under bottom
plate. Press firmly.
13. Lift and snap retaining clips
into place.
Dirt duct and dirt tube
To maintain the strong suction and cleaning effectiveness of your clean-
er, remove any large items from the carpet surface before vacuuming.
However, if your cleaner picks up a larger object than can be exhausted
in the bag, it can be caught in the dirt duct or dirt tube. These are easily
cleaned out by the following methods.
Disconnect cleaner from electri-
cal outlet.
For access to the dirt duct, turn
cleaner over to expose underside.
Remove bottom plate. Lift dirt
duct as shown and pull out any
obstructions with your fingers.
Reposition dirt duct by lowering to
operating position and then re-
place bottom plate.
18
