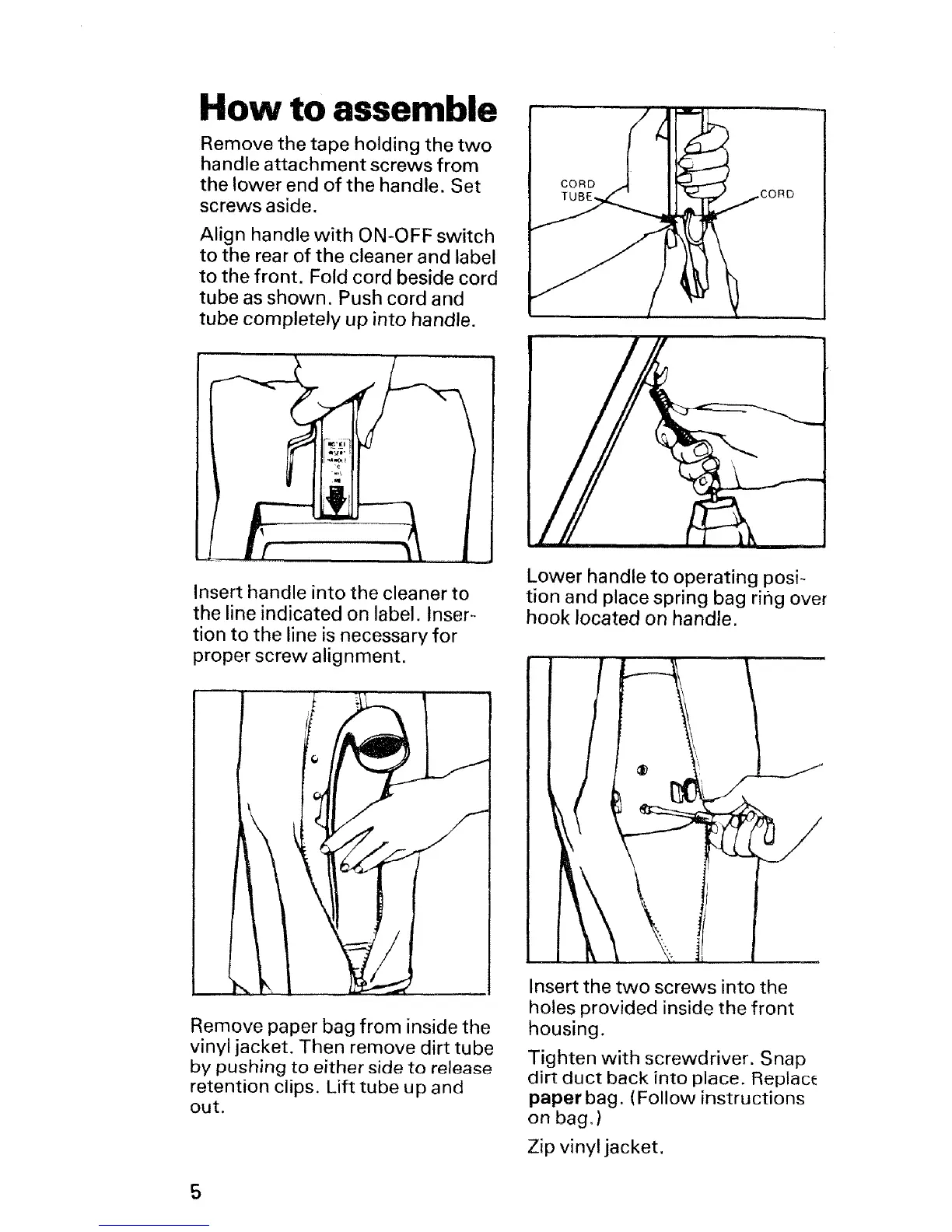

How to assemble
Remove the tape holding the two
handle attachment screws from
the lower end of the handle. Set
screws aside.
Align handle with ON-OFF switch
to the rear of the cleaner and label
to the front. Fold cord beside cord
tube as shown. Push cord and
tube completely up into handle.
CORD
Insert handle into the cleaner to
the line indicated on label. Inser-
tion to the line is necessary for
proper screw alignment.
Lower handle to operating posi-
tion and place spring bag ring over
hook located on handle.
Remove paper bag from inside the
vinyl jacket. Then remove dirt tube
by pushing to either side to release
retention clips. Lift tube up and
out,
Insert the two screws into the
holes provided inside the front
housing.
Tighten with screwdriver. Snap
dirt duct back into place. Replac_
paper bag. (Follow instructions
on bag. )
Zip vinyl jacket.
