AIR FLOW
COMPRESSOR AND CONDENSER COMPARTMENT

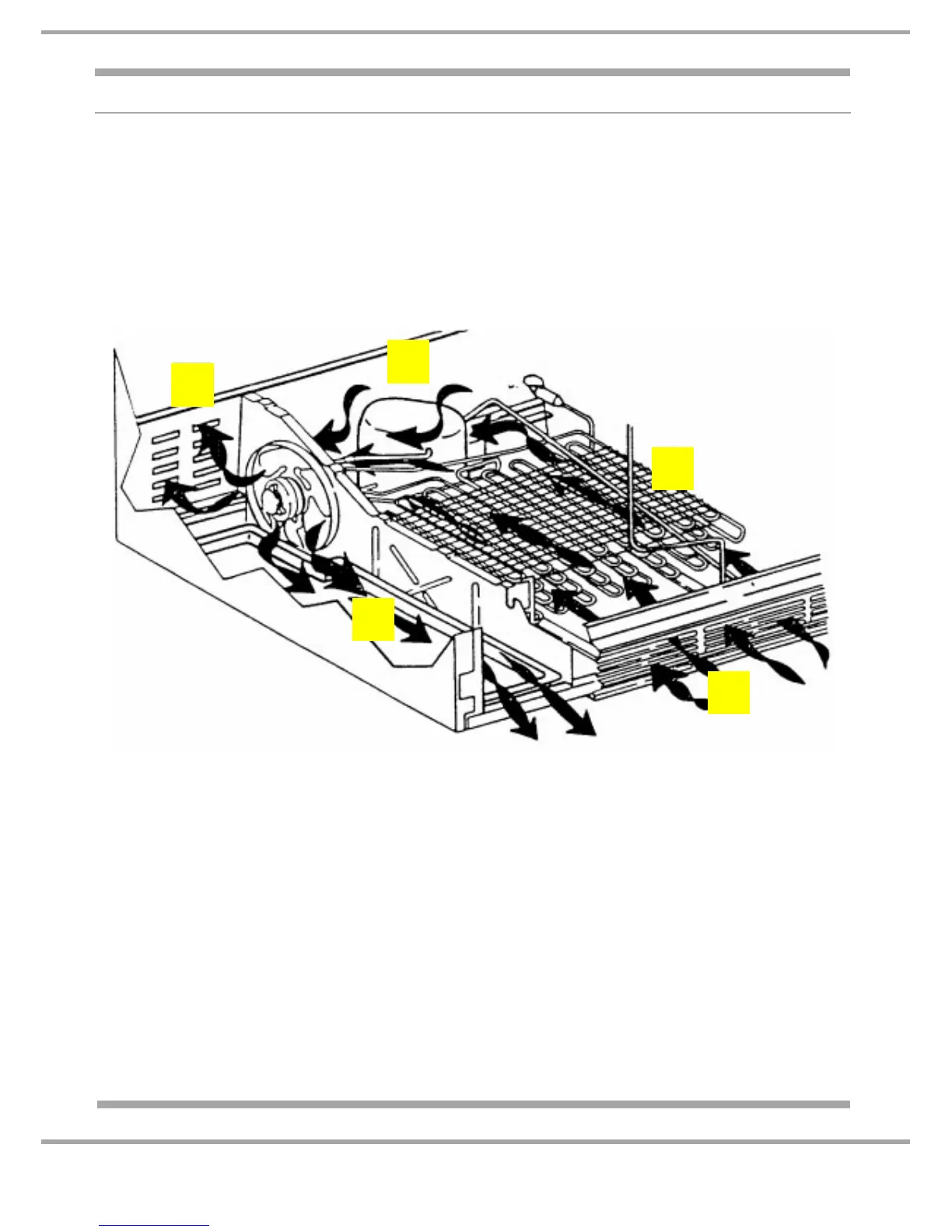

The condenser fan is mounted at the rear near the compressor and draws air from the room through
the right side of the front lower grille (A), through the condenser (B), around the compressor (C) where
it exits out of the rear panel (D) but mainly passes over the dissipator to evaporate the defrost water
(E) and finally exits out through the left side of the front lower grille. See image below:
THE ABOVE PROCESS IS REPEATED SO LONG AS THE CONDENSER FAN IS RUNNING.
