Hotpoint MSZ803DF - Power Module Edge Connections

Indesit Company
28 of 37
Service Manual UK English

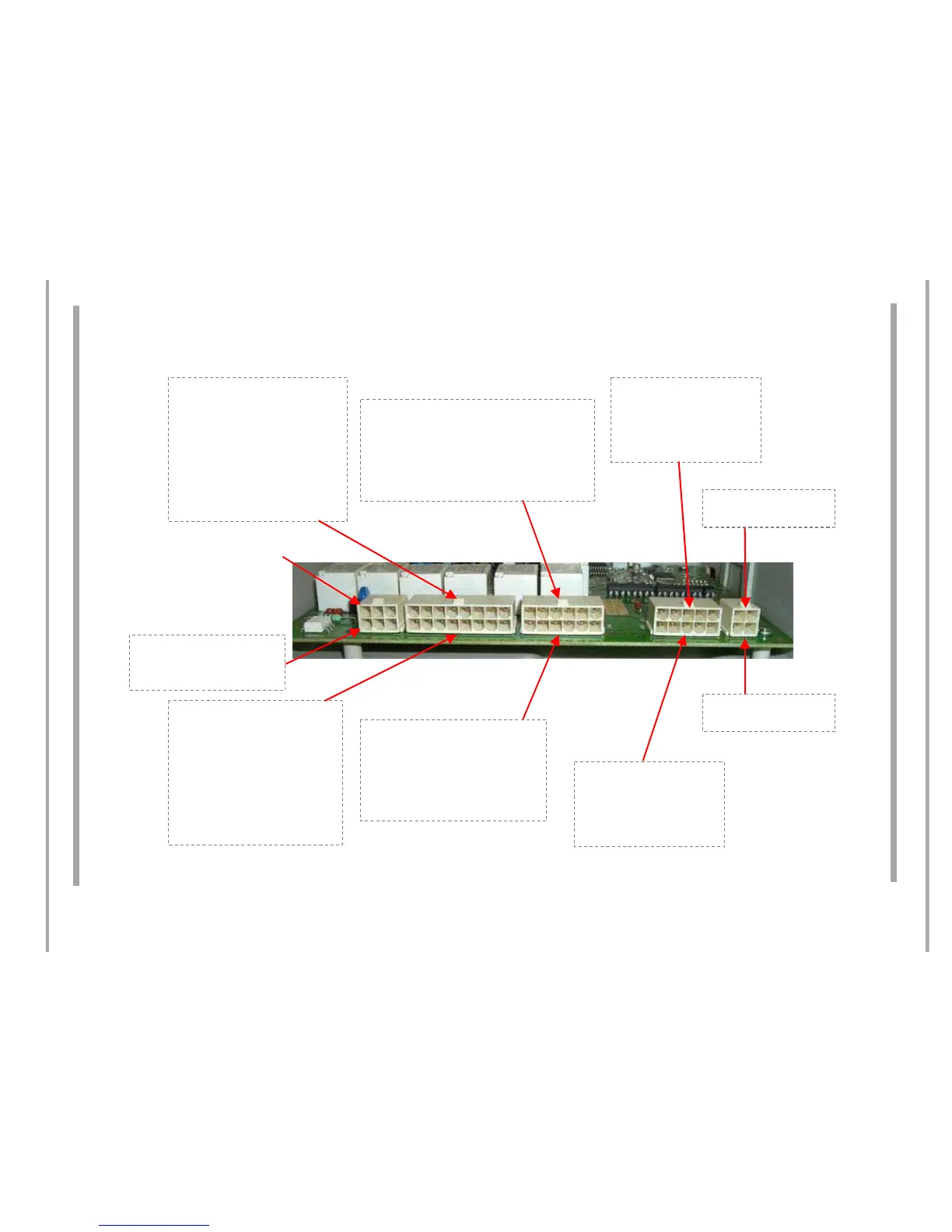

POWER MODULE EDGE CONNECTIONS
SOME TERMINALS MAY NOT BE USED, DEPENDING ON THE MODEL
Pin 9 ( water valve feedback )
Pin 10 ( NC )
Pin 11 ( Emitter IDI load )
Pin 12 ( Freezer lamp load )
Pin 13 ( Fridge lamp load )
Pin 14 ( Defrost heater load )
Pin 15 ( IMC load )
Pin 16 ( Receiver IDI load )
Pin 1 ( Ice maker Neutral )
Pin 2 ( Ice maker Hall )
Pin 3 ( Ice maker + 12 VC )
Pin 4 ( Ice maker Test )
Pin 5 ( DC Fan Optional )
Pin 3 ( Condenser fan line )
Pin 2 ( Water valve line )
Pin 1 ( Ice valve line )
Pin 8 ( IMC water valve return )
Pin 7 ( Fridge lamp feedback )
Pin 6 ( Freezer lamp feedback )
Pin 5 ( Lamps line )
Pin 4 ( Damper line )
Pin 3 ( Reciever IDI line )
Pin 2 ( Freezer door line )
Pin 1 ( Freezer line )
Pin 1 ( Bimetallic feedback )
Pin 2 ( NC )
Pin 3 ( Reciever IDI feedback )
Pin 4 ( Motor Load-Neutral )
Pin 5 ( Damper feedback )
Pin 6 ( Emitter IDI line )
Pin 12 ( Freezer door communication RX )
Pin 11 ( Freezer door communication TX )
Pin 10 ( Freezer door UI neutral )
Pin 9 ( NC )
Pin 8 ( Evaporator fan load )
Pin 7 ( Damper load )
1
6
1
1
11
16
12
6
4
2
3
5
8
7
6
10
3
4
9
Pin 10 ( DC Fan optional )
Pin 9 ( Ice maker + )
Pin 8 ( Ice maker - )
Pin 7 ( Ice maker probe )
Pin 6 ( Ice maker probe )
Pin 4 ( Freezer probe )
Pin 3 ( Fridge probe )
Pin 1 ( Fridge probe )
Pin 2 ( Freezer probe )
