27 of 37
Indesit
Company
Service Manual UK
English

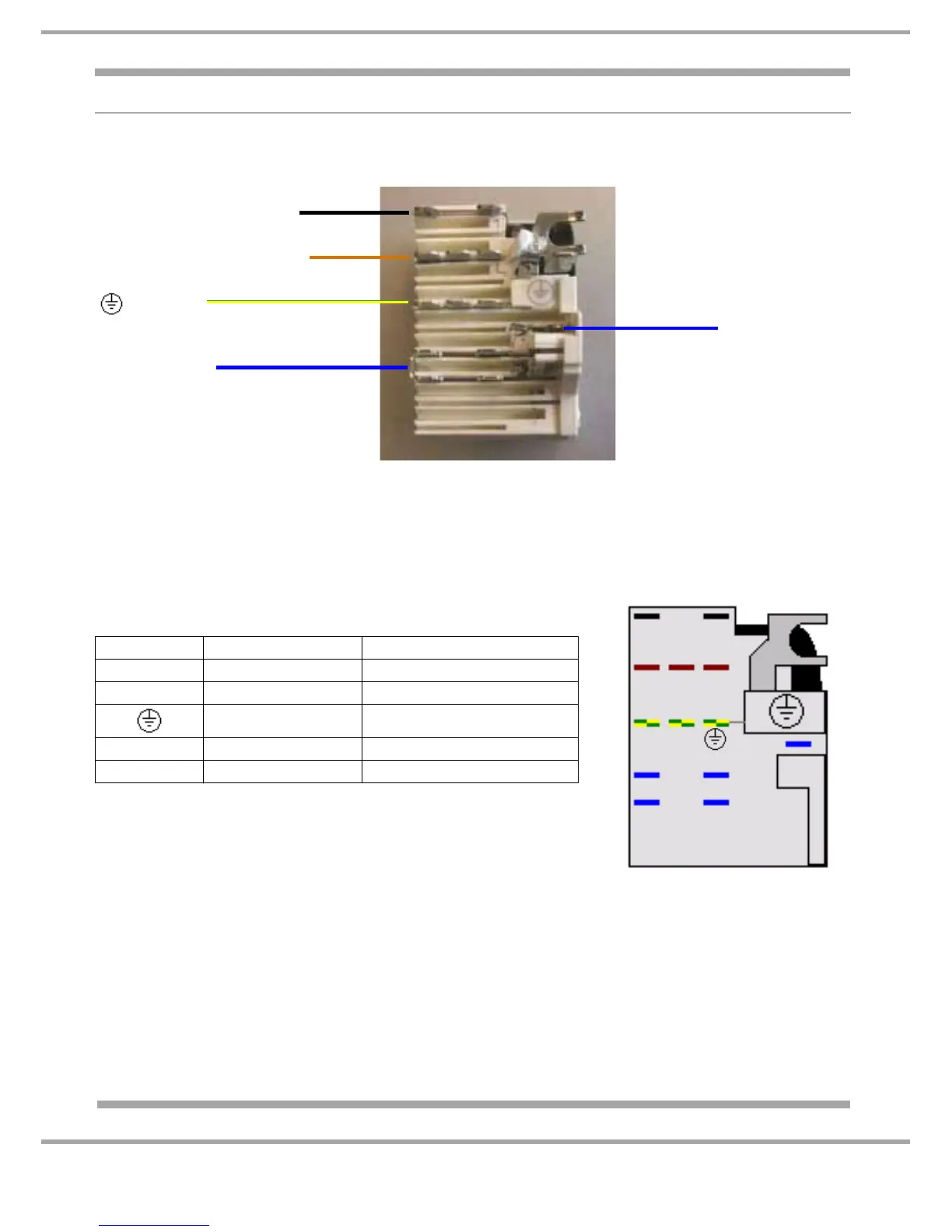

COMPRESSOR CONNECTION CHART
EMBRACO COMPRESSOR TERMINAL BLOCK
SCHEMA
TIC VIEW OF TERMINAL BLOCK
TERMINAL
COLOUR
DESCRIPTION
1
BLACK
COMMON (OVERLOAD)
L
BROWN
LIVE & RUN CAPACITOR
GREEN/YELLOW
EARTH
N
BLUE
NEUTRAL
S
BLUE
RUN CAPACITOR
1 ~ COMMON (Overload)
L ~ LIVE (line) & Capacitor
~ EARTH
N ~ NEUTRAL
S ~ CAP
ACITOR
1
L
N
S
26
28
Table of Contents
Health & Safety
2
Table of Contents
3
Index & Serial Number / Product Identity
3
Introduction
4
Specifications
5
Appliance Dimensions & Water Filter
7
Detailed View
8
Control Panel Interface
9
Control Panel Interface
10
Description of Functions
11
Component Functions
12
Temperature Tables
14
Alarm Conditions
15
Auto-Test and Fault Conditions
16
Air Flow
18
Ice-Maker Function and Adjustment
20
Power Module Parameters
21
Power Module Parameters
22
Servicing & Dismantling Instructions
23
Compressor Connection Chart
27
Power Module Edge Connections
28
Connector Block Chart
29
Theoretical Wiring Diagram
30
Thermistor Sensor Location
31
Installation Instructions
32
