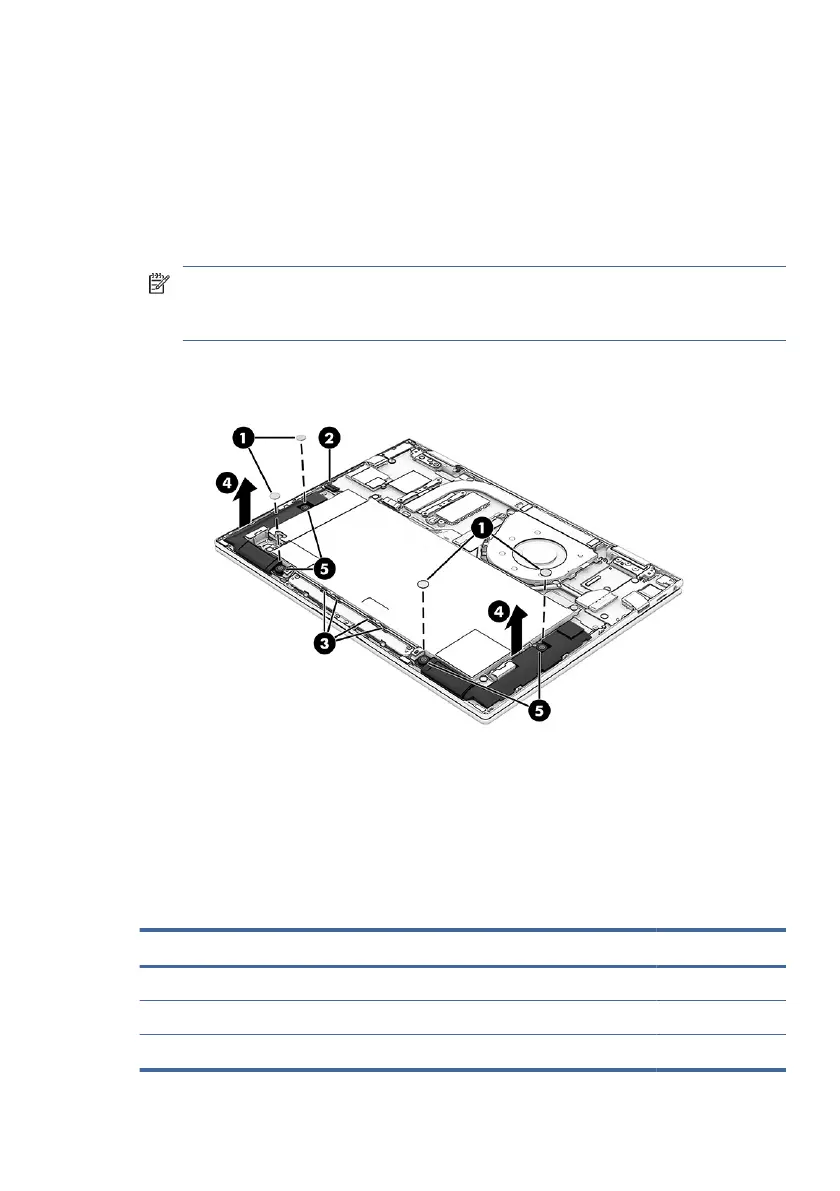

1. Remove the two Phillips M2.0 × 2.0 broadhead screws (1) that secure each speaker
to the computer.
2. Disconnect the drive cable from the system board (2).
3. Remove the speaker cable from the clips on the bottom of the battery (3).
4. Remove the speakers from the computer (4) .
NOTE: When removing the speakers, make note of the rubber isolator locations
(5). The absence of or damage to these isolators can result in degraded speaker
performance.
To install the speakers, reverse this procedure.
I/O board
To remove the I/O board, use this procedure and illustration.
Table 5-7
I/O board description and part number
Description Spare part number
I/O board N15685-001
I/O board cable N15700-001
USB door N15686-001
I/O board 53
