Model 214B
Appendix

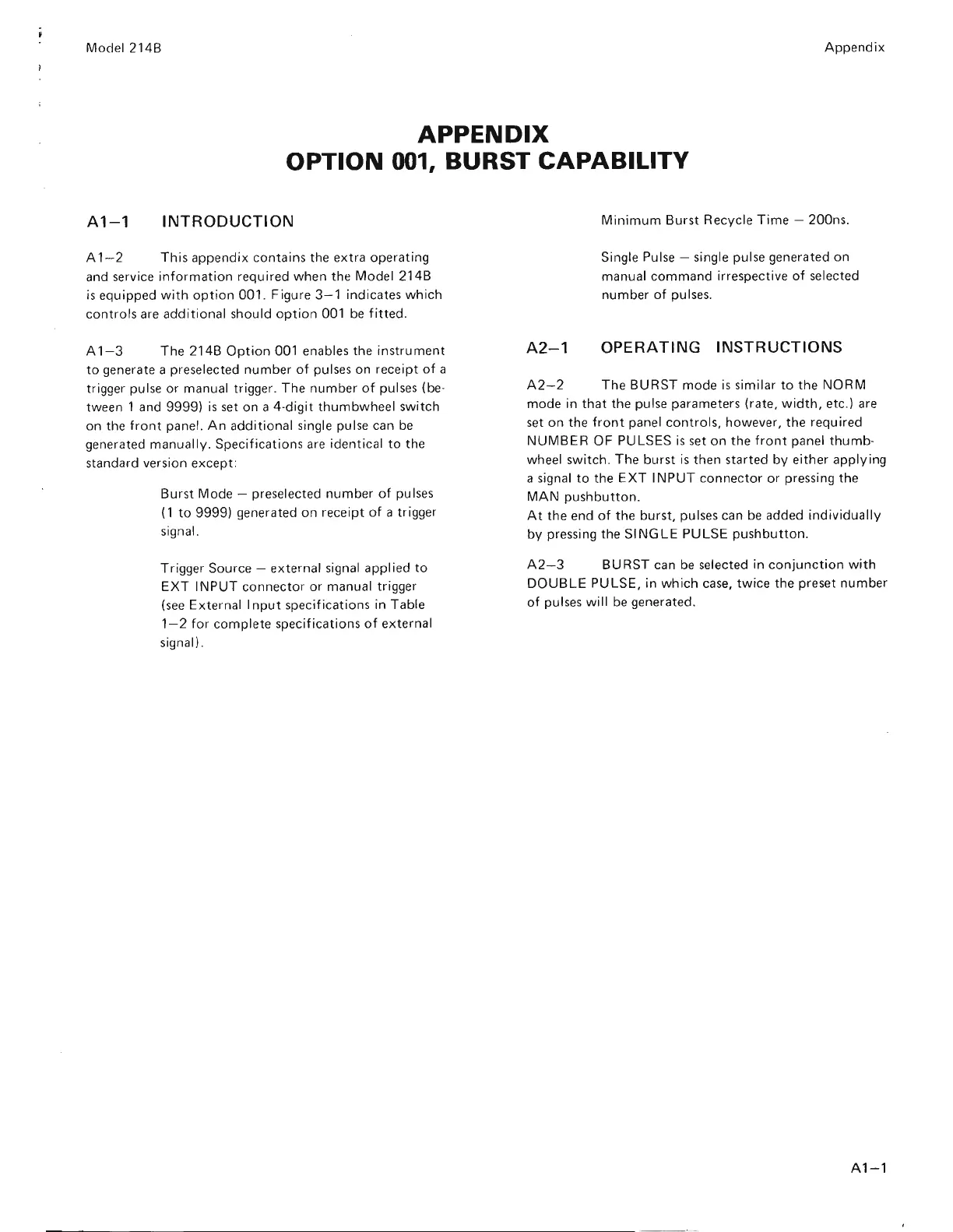

APPENDIX
OPTION 001, BURST CAPABILITY
A1-1
INTRODUCTION
A 1- 2 This appendix contains the extra operating
and service
information required when the Model 214B
is equipped with option 001. Figure 3-1 indicates which
controls are additional should option 001 be fitted.
Al-3
The 214B Option 001 enables the instrument
to generate a preselected number of pulses on receipt of a
trigger pulse
or manual trigger. The number of pulses (be-
tween 1 and 9999)
is set on a 4-digit thumbwheel switch
on the front panel. An additional single pulse can be
generated manually. Specifications are identical to the
standard version except:
Burst Mode - preselected number of pulses
(1 to 9999) generated on receipt of a trigger
signal.
Trigger
Source - external signal applied
to
EXT INPUT connector or manual trigger
(see External I nput specifications in Table
1-2 for complete specifications of external
signal).
A2-1
A2-2
Minimum Burst Recycle Time - 200ns.
Single Pulse - single pulse generated on
manual
command irrespective of selected
number of pulses.
OPERATING INSTRUCTIONS
The BURST mode is similar to the NORM
mode in that the pulse parameters (rate, width, etc.) are
set on the front panel controls, however, the required
NUMBER OF PULSES is set on the front panel thumb-
wheel switch. The burst is then started by either applying
a signal to the EXT INPUT connector or pressing the
MAN pushbutton.
At the end of the burst, pulses can be added individually
by pressing the SINGLE PULSE pushbutton.
A2-3 BURST can be selected in conjunction with
DOUBLE PULSE, in which case, twice the preset number
of pulses will be generated.
A1-1
