HP 214B User Manual

Performance Tests
Model 2148

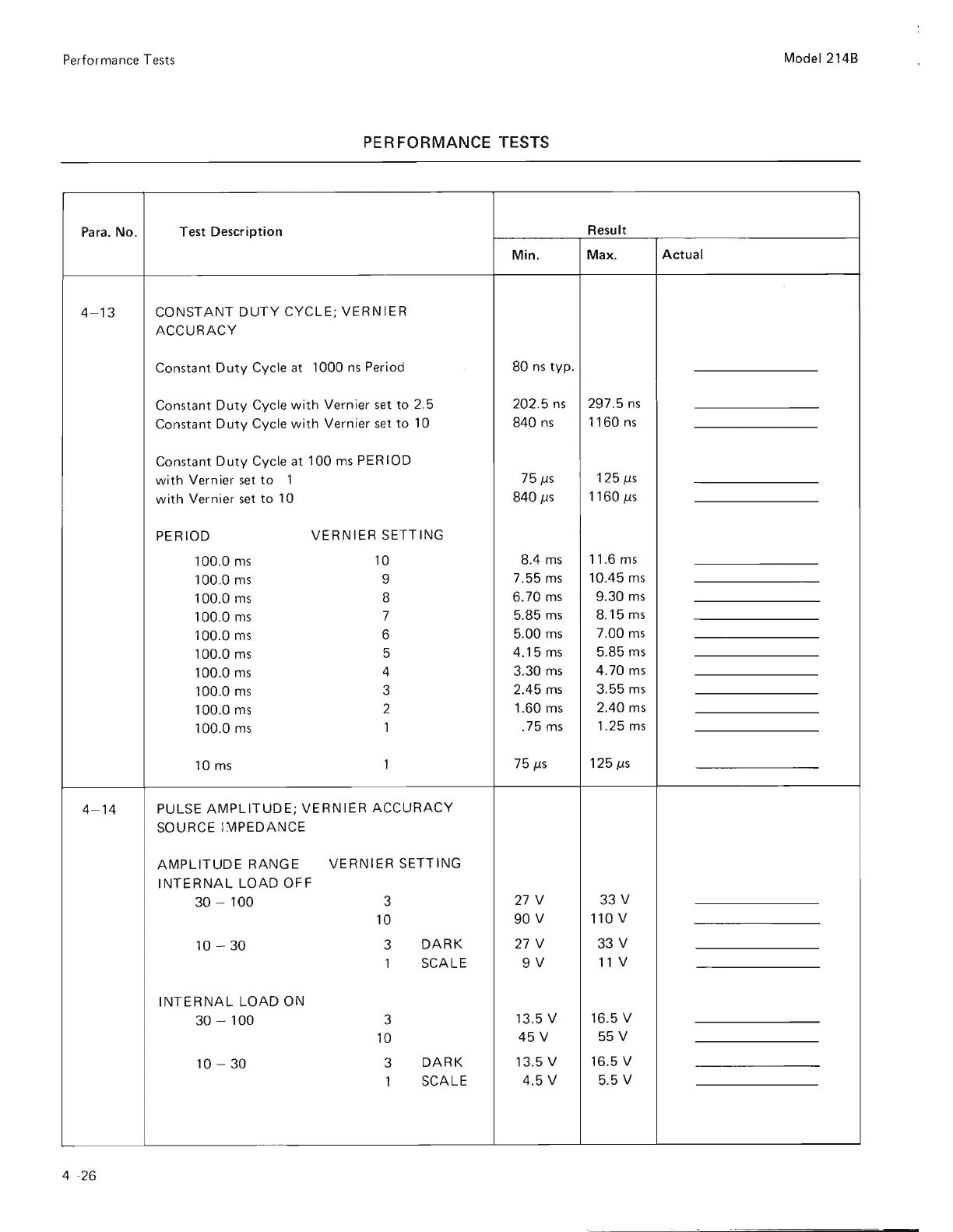

PERFORMANCE TESTS
Para. No.
Test Description
Result
Min.
Max.
Actual
4-13
CONSTANT DUTY CYCLE; VERNIER
ACCURACY
Cons tant Duty Cycle at
1000
ns Period
80
ns typo
Constant
Duty Cycle with Vernier set to 2.5
202.5
ns
297.5 ns
Constant Duty Cycle with Vernier set to 10
840
ns
1160 ns
Constant Duty Cycle at 100 ms PERIOD
with Vern ier set to 1
75
iJ.S
125 iJ.s
with Vernier set to 10
840
iJ.S
1160 iJ.s
PERIOD
VERNIER SETTING
100.0
ms
10
8.4
ms
11.6 ms
100.0 ms
9
7.55 ms
10.45 ms
100.0 ms
8
6.70 ms
9.30 ms
100.0 ms
7
5.85
ms
8.15 ms
100.0 ms
6
5.00
ms
7.00 ms
100.0 ms
5
4.15
ms
5.85 ms
100.0 ms
4
3.30
ms
4.70 ms
100.0 ms
3
2.45
ms
3.55 ms
100.0 ms
2
1.60
ms
2.40 ms
100.0 ms
1
.75
ms
1.25 ms
10 ms
1
75
iJ.S
125 iJ.S
4-14
PULSE AMPLITUDE; VERNIER ACCURACY
SOURCE IVIPEDANCE
AMPLITUDE RANGE
VERNIER SETTING
INTERNAL LOAD OFF
30 - 100
3
27 V
33 V
10
90 V
110 V
10 - 30
3
DARK
27 V 33 V
1
SCALE
9V
11 V
INTERNAL LOAD ON
30 - 100
3
13 .5 V
16.5 V
10
45 V
55 V
10 - 30
3
DARK
13.5 V
16.5 V
1
SCALE
4.5 V
5.5 V
4-
26
