Model 214B Performance Tests

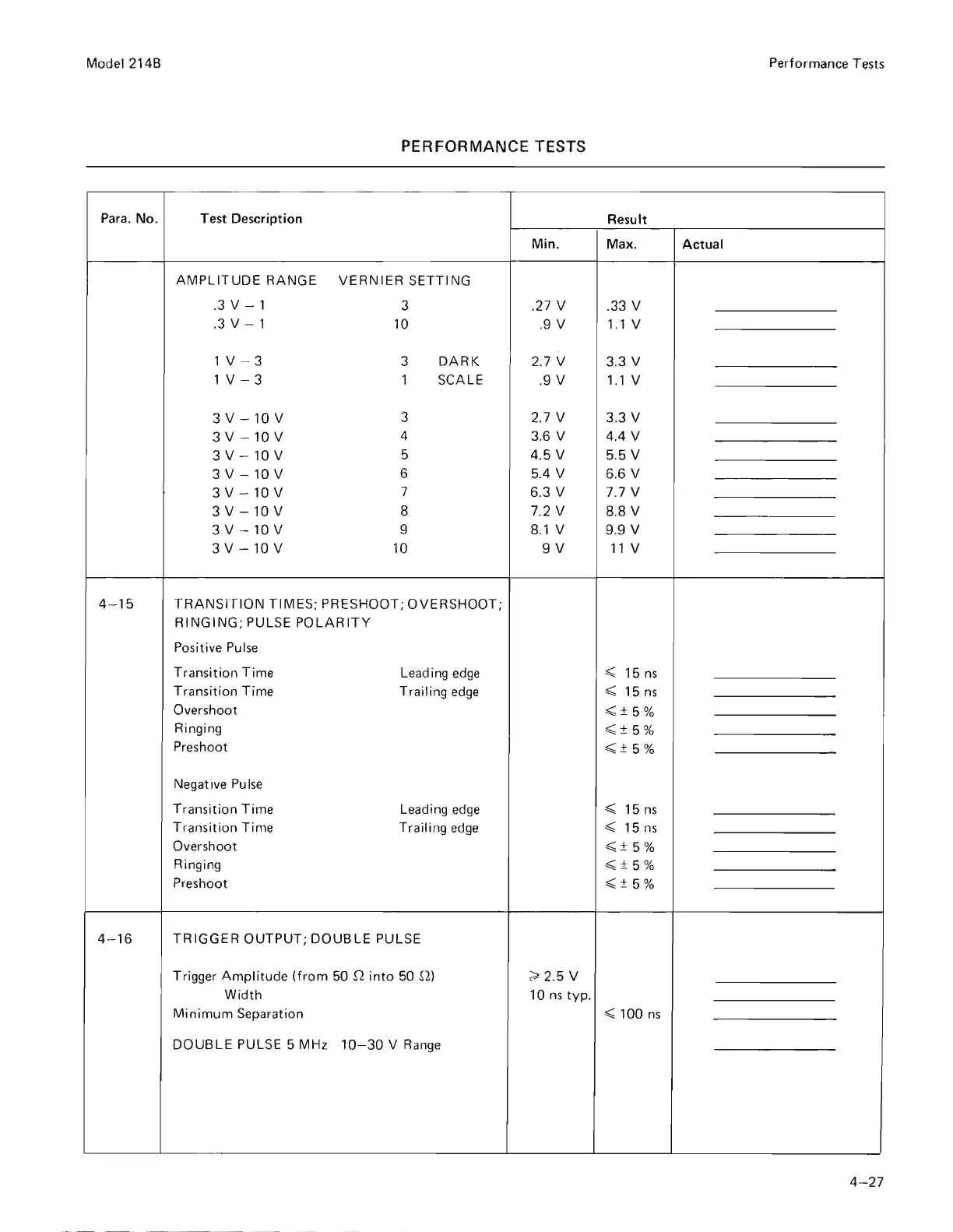

PERFORMANCE TESTS
Para. No.
Test Description
Result
Min.
Max. Actual
AMPLITUDE RANGE
VERNIER SETTING
.3 V - 1
3
.27 V
.33 V
.3 V - 1
10
.9 V 1.1 V
1V - 3
3
DARK
2.7 V 3.3 V
1V-3
1
SCALE
.9 V
1.1 V
3 V - 10 V
3 2.7 V
3.3 V
3 V - 10 V
4
3.6 V 4.4 V
3 V - 10 V
5 4.5 V 5.5 V
3 V - 10 V 6 5.4 V 6.6 V
3V - lOV
7
6.3 V 7.7 V
3 V
-10 V 8
7.2 V
8.8 V
3 V - 10 V 9 8.1 V 9.9 V
3V-lOV
10
9V 11 V
4- 15
TRANSITION TIMES ; PRESHOOT; OVERSHOOT;
RINGING ; PULSE POLARITY
Pos itive Pu Ise
Transition Time
Le ading edge ~ 15 ns
Transition Time
Trailing
edge
~ 15 ns
Overs hoot
~± 5 %
Ringing
~ ± 5 %
Pres hoot
~ ±5 %
Negative Pulse
Transition Time Leading edge ~ 15 ns
Transition Time Trailing edge
~ 15 ns
Overs hoot
~ ± 5 %
Ringi ng
~± 5 %
Preshoot
~± 5 %
4-16 TRIGGER OUTPUT; DOUBLE PULSE
Trigger
Amplitude (from 50 n into 50 n)
~ 2.5 V
Width
10
ns typo
Minimum Separation
~ 100 ns
DOUBLE PULSE 5 MHz
10- 30 V
Range
4-27
