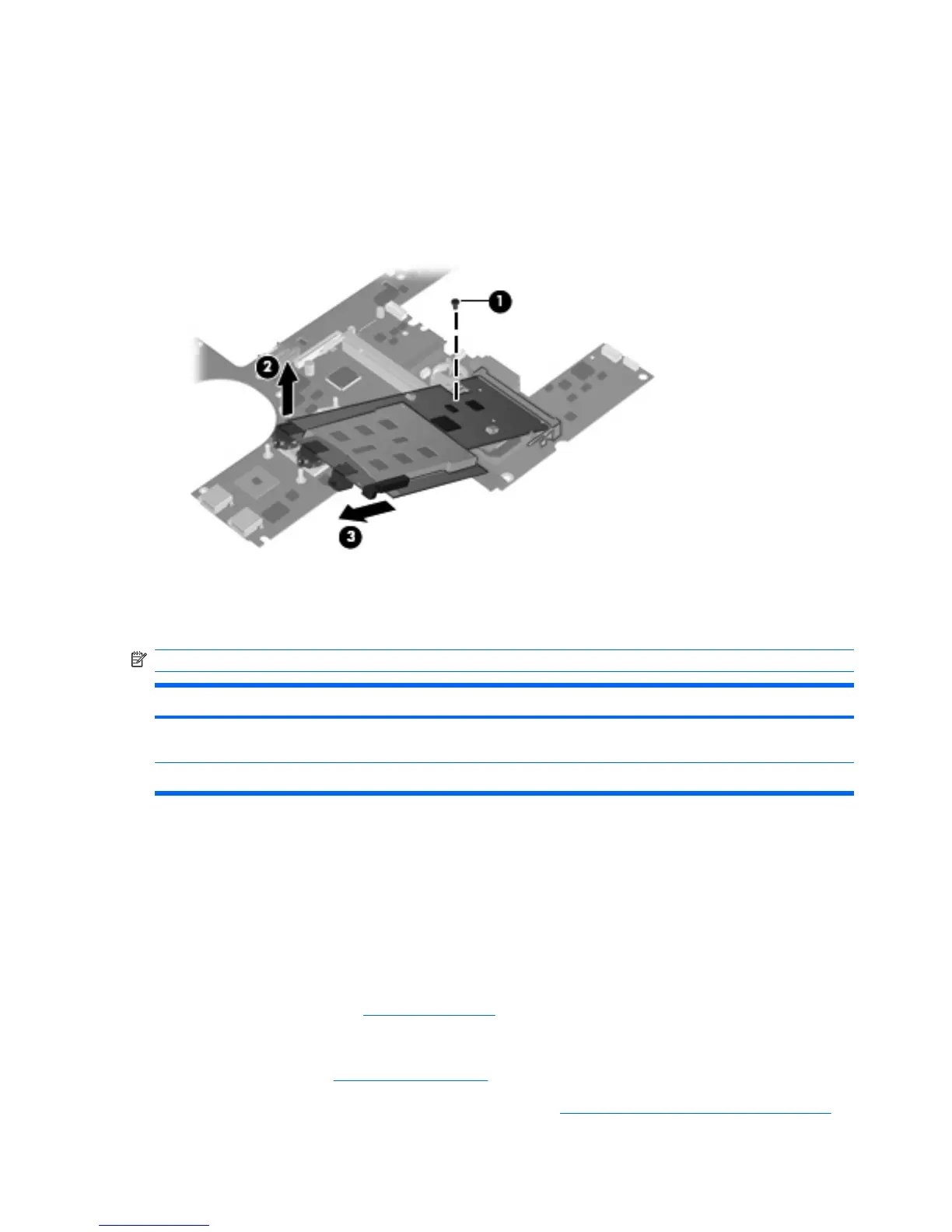

Remove the PC Card/audio board assembly:
1. Remove the Phillips PM2.5×5.0 screw (1) that secures the PC Card/audio board assembly to the
system board.
2. Lift the left side of the PC Card/audio board assembly (2) until it disengages from the system board.
3. Remove the PC Card/audio board assembly (3) by pulling it away from the system board at an
angle.
Reverse this procedure to install the PC Card/audio board assembly.
Modem module
NOTE: All modem module spare part kits include a modem module cable.
Description Spare part number
For use with HP Compaq 6715 computer models and with HP Compaq 6710 computer models in
all countries and regions except Japan and Asia/Pacific
441074-001
For use with HP Compaq 6710 computer models in Japan and Asia/Pacific countries and regions 449139-001
Before removing the modem module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 48).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 52)
b. Memory/WLAN module compartment cover (see
Expansion memory module on page 56)
92 Chapter 4 Removal and replacement procedures
