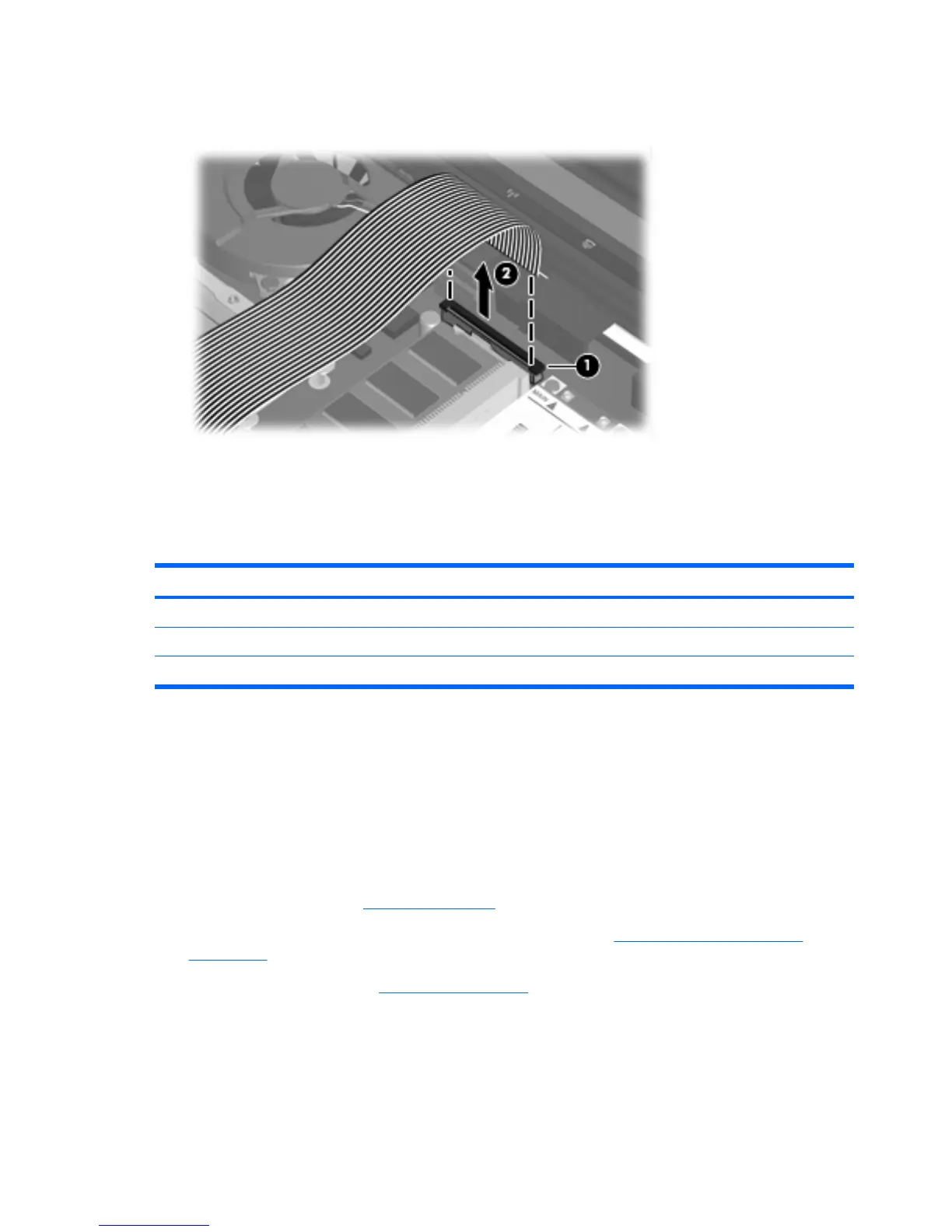

7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and
disconnect the keyboard cable (2) from the system board.
8. Remove the keyboard.
Reverse this procedure to install the keyboard.
Internal memory module
Description Spare part number
2048-MB, PC2-5300, 1-DIMM, memory module 417506-001
1024-MB, PC2-5300, 1-DIMM, memory module 414046-001
512-MB, PC2-5300, 1-DIMM, memory module 414045-001
Before removing the internal memory module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 48).
5. Remove the memory/WLAN module compartment cover (see
Expansion memory module
on page 56).
6. Release the keyboard (see
Keyboard on page 64).
Remove the internal memory module:
1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory
module. (The edge of the module opposite the slot rises away from the computer.)
66 Chapter 4 Removal and replacement procedures
