UNLEVELED
RF

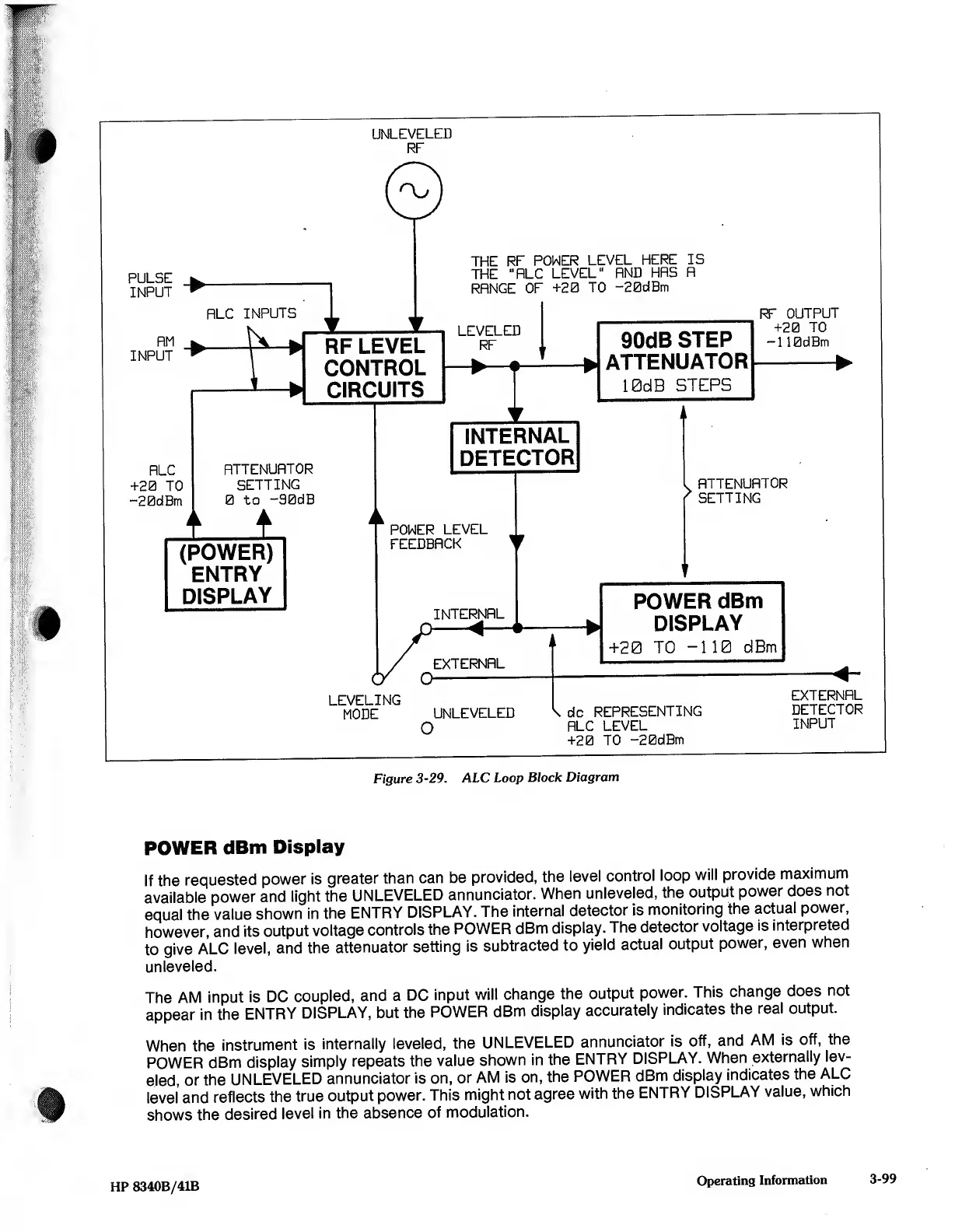

Figure
3-29.
ALC
Loop
Block
Diagram
POWER
dBm
Display
If
the
requested
power
is
greater
than
can
be
provided,
the
level
control
loop
will
provide
maximum
available
power
and
light
the
UNLEVELED
annunciator.
When
unleveled,
the
output
power
does
not
equal
the
value
shown
in
the
ENTRY
DISPLAY.
The
internal
detector
is
monitoring
the
actual
power,
however,
and
its
output
voltage
controls
the
POWER
dBm
display.
The
detector
voltage
is
interpreted
to
give
ALC
level,
and
the
attenuator
setting
is
subtracted
to
yield
actual
output
power,
even
when
unleveled.
The
AM
input
is
DC
coupled,
and
a
DC
input
will
change
the
output
power.
This
change
does
not
appear
in
the
ENTRY
DISPLAY,
but
the
POWER
dBm
display
accurately
indicates
the
real
output.
When
the
instrument
is
internally
leveled,
the
UNLEVELED
annunciator
is
off,
and
AM
is
off,
the
POWER
dBm
display
simply
repeats
the
value
shown
in
the
ENTRY
DISPLAY.
When
externally
lev¬
eled,
or
the
UNLEVELED
annunciator
is
on,
or
AM
is
on,
the
POWER
dBm
display
indicates
the
ALC
level
and
reflects
the
true
output
power.
This
might
not
agree
with
the
ENTRY
DISPLAY
value,
which
shows
the
desired
level
in
the
absence
of
modulation.
HP
8340B/41B
Operating
Information
3-99
