HP 8410B/C Interface/Cable
DESCRIPTION
This connector interfaces the HP 8340B/41B to the HP 8410B/C Network Analyzer.
Rear Panel Connector Interface Cable
8410 INTERFACE
D
oooooooooooo
ooooooooooooo
Connect the HP 8410B/C Network Analyzer to this port on the HP 8340B/41B, using a Source Control
Cable (HP Part Number 08410-60146). An Operating Guide at the end of this Section explains HP
841 OB/C to HP 8340B/41B interconnections.
This connector has pins that duplicate several rear panel functions, including EXT TRIGGER INPUT
MUTE OUTPUT PENLIFT OUTPUT, NEG BLANK, and Z-AXIS BLANK/MKRS. There is also a pin unit
input for a switch closure to execute the UP key function, which is used to step through a series of
sa P ved instrument states. Additional information is contained in the HP 8410B/C Operating and Service
Manual.

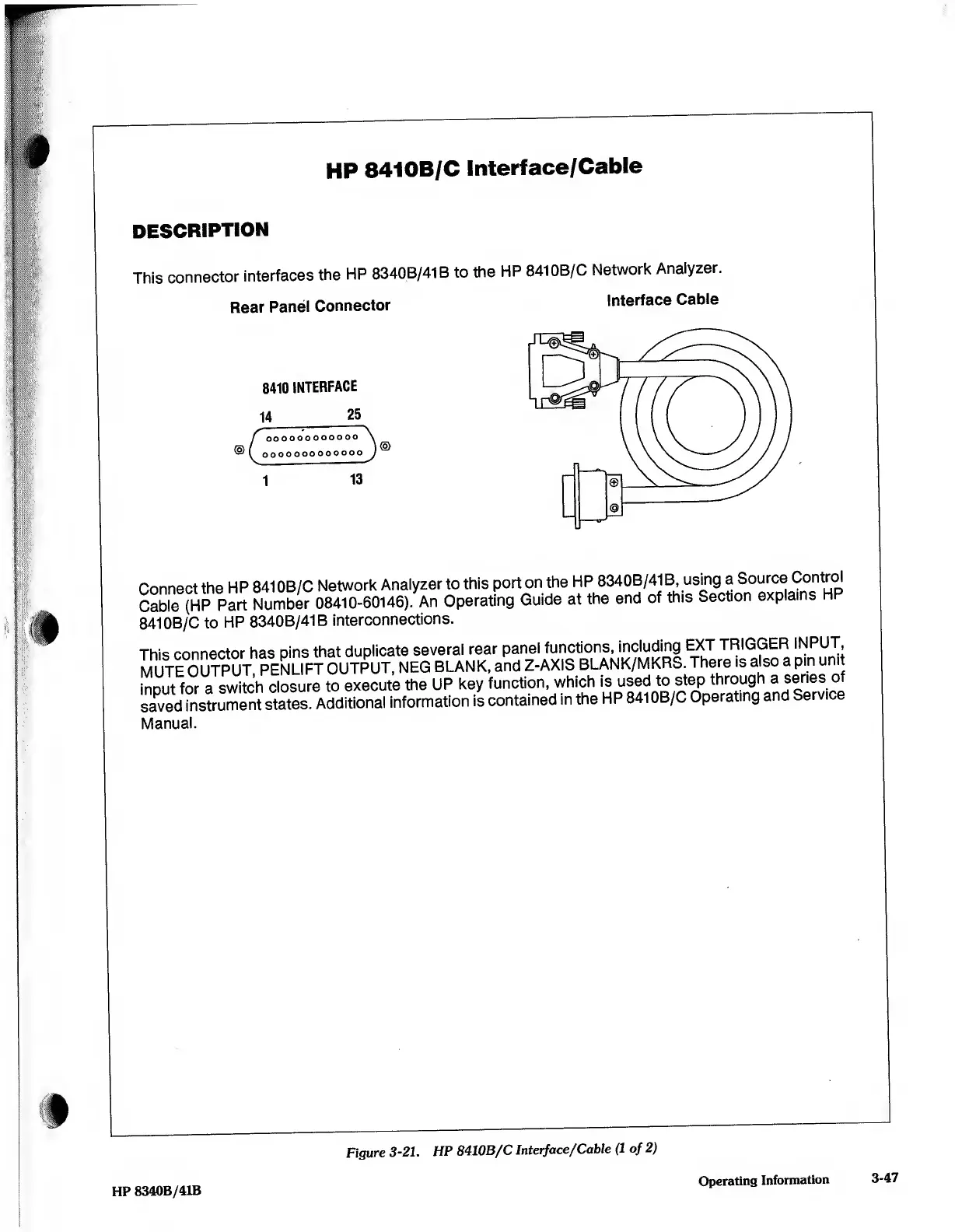

Figure 3-21. HP 8410B/C Interface/Cable (1 of 2)
HP 8340B/41B
Operating Information
