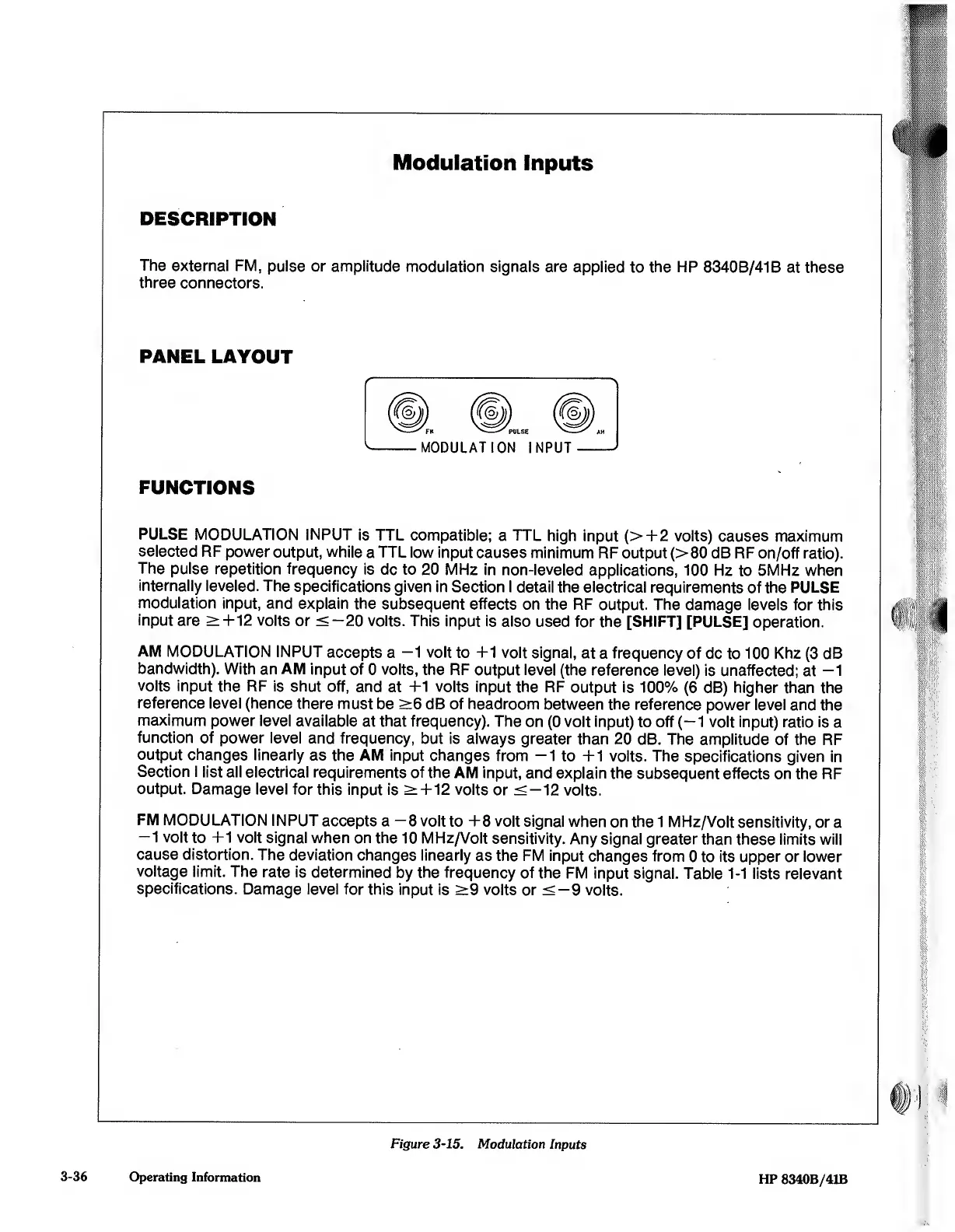

Modulation
Inputs
DESCRIPTION
The
external
FM,
pulse
or
amplitude
modulation
signals
are
applied
to
the
HP
8340B/41B
at
these
three
connectors.
PANEL
LAYOUT
MODULATION
INPUT
FUNCTIONS
PULSE
MODULATION
INPUT
is
TTL
compatible;
a
TTL
high
input
(>+2
volts)
causes
maximum
selected
RF
power
output,
while
a
TTL
low
input
causes
minimum
RF
output
(>80
dB
RF
on/off
ratio).
The
pulse
repetition
frequency
is
dc
to
20
MHz
in
non-leveled
applications,
100
Hz
to
5MHz
when
internally
leveled.
The
specifications
given
in
Section
I
detail
the
electrical
requirements
of
the
PULSE
modulation
input,
and
explain
the
subsequent
effects
on
the
RF
output.
The
damage
levels
for
this
input
are
>+12
volts
or
<-20
volts.
This
input
is
also
used
for
the
[SHIFT]
[PULSE]
operation.
AM
MODULATION
INPUT
accepts
a
—1
volt
to
+1
volt
signal,
at
a
frequency
of
dc
to
100
Khz
(3
dB
bandwidth).
With
an
AM
input
of
0
volts,
the
RF
output
level
(the
reference
level)
is
unaffected;
at
1
volts
input
the
RF
is
shut
off,
and
at
+1
volts
input
the
RF
output
is
100%
(6
dB)
higher
than
the
reference
level
(hence
there
must
be
>6
dB
of
headroom
between
the
reference
power
level
and
the
maximum
power
level
available
at
that
frequency).
The
on
(0
volt
input)
to
off
(-1
volt
input)
ratio
is
a
function
of
power
level
and
frequency,
but
is
always
greater
than
20
dB.
The
amplitude
of
the
RF
output
changes
linearly
as
the
AM
input
changes
from
—1
to
+1
volts.
The
specifications
given
in
Section
I
list
all
electrical
requirements
of
the
AM
input,
and
explain
the
subsequent
effects
on
the
RF
output.
Damage
level
for
this
input
is
>+12
volts
or
<-12
volts.
FM
MODULATION
INPUT
accepts
a
—8
volt
to
+8
volt
signal
when
on
the
1
MHz/Volt
sensitivity,
or
a
—1
volt
to
+1
volt
signal
when
on
the
10
MHz/Volt
sensitivity.
Any
signal
greater
than
these
limits
will
cause
distortion.
The
deviation
changes
linearly
as
the
FM
input
changes
from
0
to
its
upper
or
lower
voltage
limit.
The
rate
is
determined
by
the
frequency
of
the
FM
input
signal.
Table
1-1
lists
relevant
specifications.
Damage
level
for
this
input
is
>9
volts
or
<—9
volts.
Figure
3-15.
Modulation
Inputs
