HP 8340b Operating Instructions

Rear Panel RF Outputs
DESCRIPTION
The two rear panel RF Output connectors (one standard, one an option) are described in this Figure.
PANEL LAYOUT
FUNCTIONS
AUX OUTPUT 2.3-7 GHz is a type N female connector that provides a 0 dBm Output from the HP
8340B/41B’s fundamental YIG oscillator (the higher frequencies obtainable from the HP 8340B/41B
are multiples of this oscillator). Impedance of this connector is 50 Q (nominal).
RF OUTPUT is an optional rear panel RF output connector that is functionally equivalent to the
standard front panel RF output connector (which is described in Figure 3-17). Option 004 is a rear
panel RF output with attenuator, and Option 005 (HP 8340B only) is a rear panel RF output without
attenuator. The specifications for each option are listed in Section I of this Manual. Contact the
nearest HP Sales and Service office for information about retrofitting an HP 8340B/41B with one of
these options.

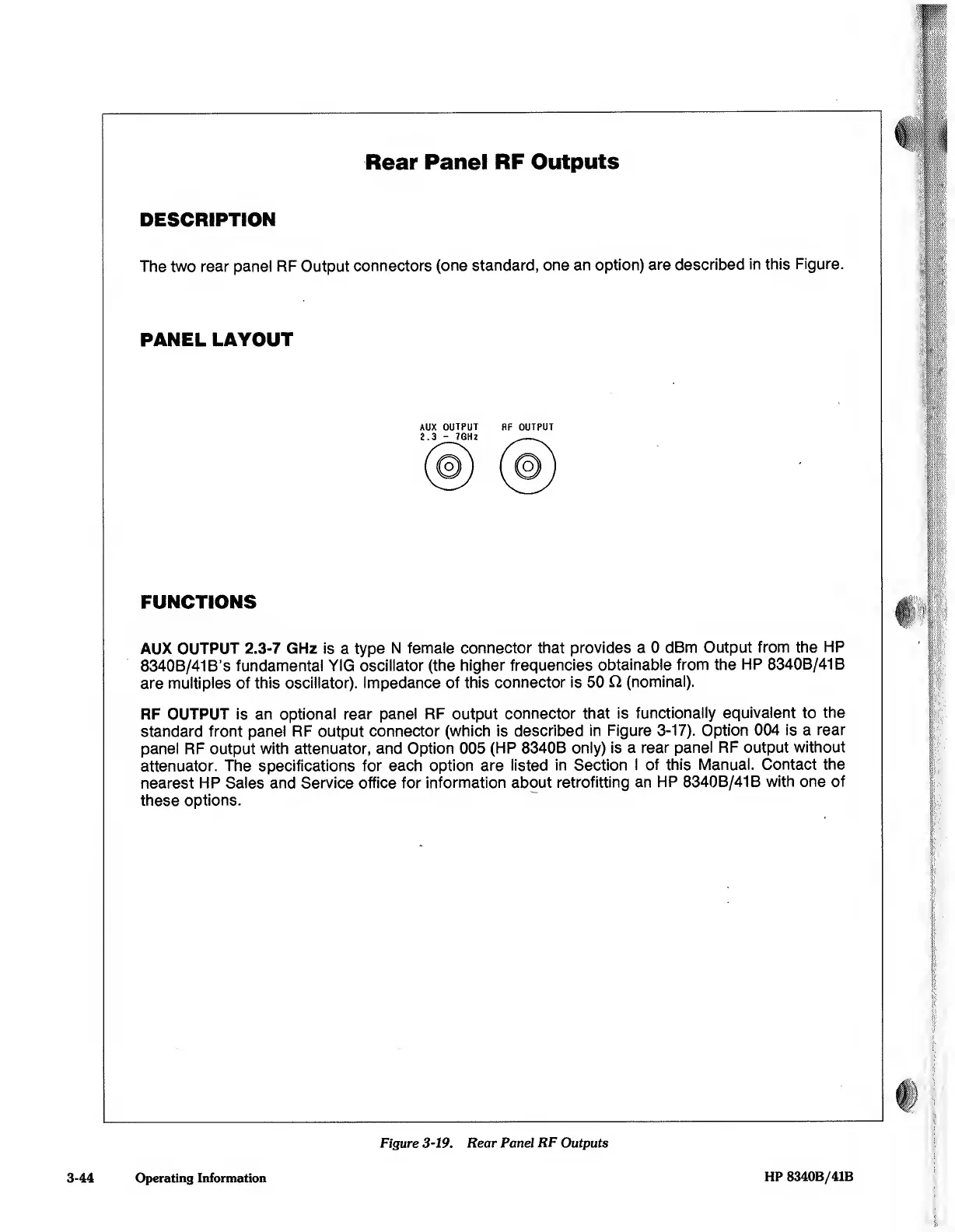

Figure 3-19. Rear Panel RF Outputs
3-44
Operating Information
HP 8340B/41B
