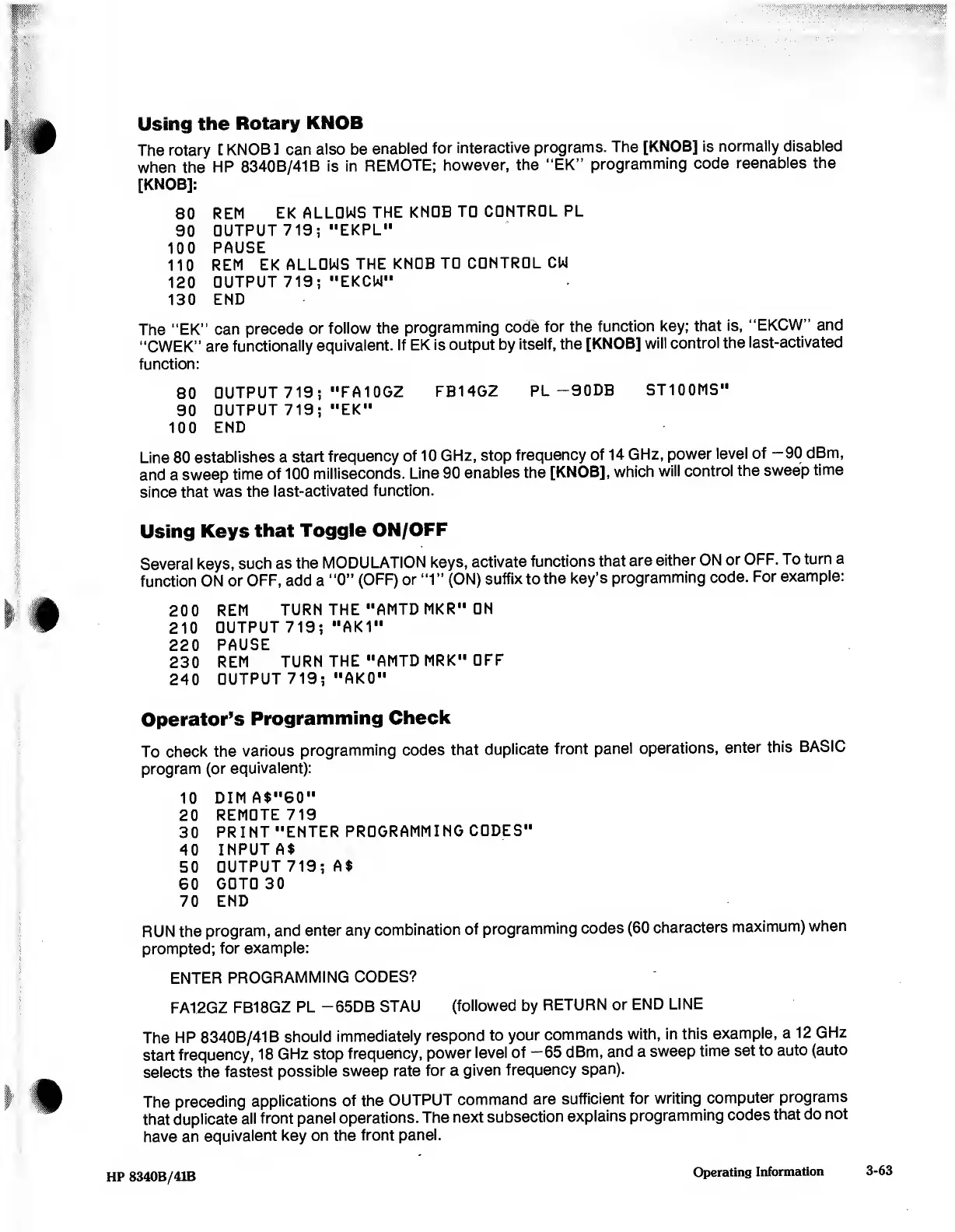

Using the Rotary KNOB
The rotary [ KNOB ] can also be enabled for interactive programs. The [KNOB] is normally disabled
when the HP 8340B/41B is in REMOTE; however, the “EK” programming code reenables the
[KNOB]:
80 REM EK ALLOWS THE KNOB TO CONTROL PL
90 OUTPUT 719; "EKPL"
100 PAUSE
110 REM EK ALLOWS THE KNOB TO CONTROL CW
120 OUTPUT 719; ,, E K C W , ,
130 END
The “EK” can precede or follow the programming code for the function key; that is, “EKCW” and
“CWEK” are functionally equivalent. If EK is output by itself, the [KNOB] will control the last-activated
function:
80 OUTPUT 719; "FA10GZ FB14G2 PL -90DB ST100MS"
90 OUTPUT 719; "EK"
100 END
Line 80 establishes a start frequency of 10 GHz, stop frequency of 14 GHz, power level of -90 dBm,
and a sweep time of 100 milliseconds. Line 90 enables the [KNOB], which will control the sweep time
since that was the last-activated function.
Using Keys that Toggle ON/OFF
Several keys, such as the MODULATION keys, activate functions that are either ON or OFF. To turn a
function ON or OFF, add a “0” (OFF) or “1” (ON) suffix to the key’s programming code. For example:
200 REM TURN THE "AMTD MKR" ON
210 OUTPUT 719; "AK1"
220 PAUSE
230 REM TURN THE "AMTD MRK" OFF
240 OUTPUT 719; "AK0"
Operator’s Programming Check
To check the various programming codes that duplicate front panel operations, enter this BASIC
program (or equivalent):
10 DIM A$"60"
20 REMOTE 719
30 PRINT "ENTER PROGRAMMING CODES"
40 INPUT A$
50 OUTPUT 719; A$
80 GOTO 30
70 END
RUN the program, and enter any combination of programming codes (60 characters maximum) when
prompted; for example:
ENTER PROGRAMMING CODES?
FA12GZ FB18GZ PL -65DB STAU (followed by RETURN or END LINE
The HP 8340B/41B should immediately respond to your commands with, in this example, a 12 GHz
start frequency, 18 GHz stop frequency, power level of —65 dBm, and a sweep time set to auto (auto
selects the fastest possible sweep rate for a given frequency span).
The preceding applications of the OUTPUT command are sufficient for writing computer programs
that duplicate all front panel operations. The next subsection explains programming codes that do not
have an equivalent key on the front panel.
